Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.8
Repairs and Adjustments
Launch Issue
5. Remove the bottom plate, Figure 2:
a. Release the harness from the 5 clamps (1).
b. Disconnect eight connectors (2).
c. Remove the harness from the retainers (3).
d. Remove four screws (4).
e. Remove the bottom plate (5).

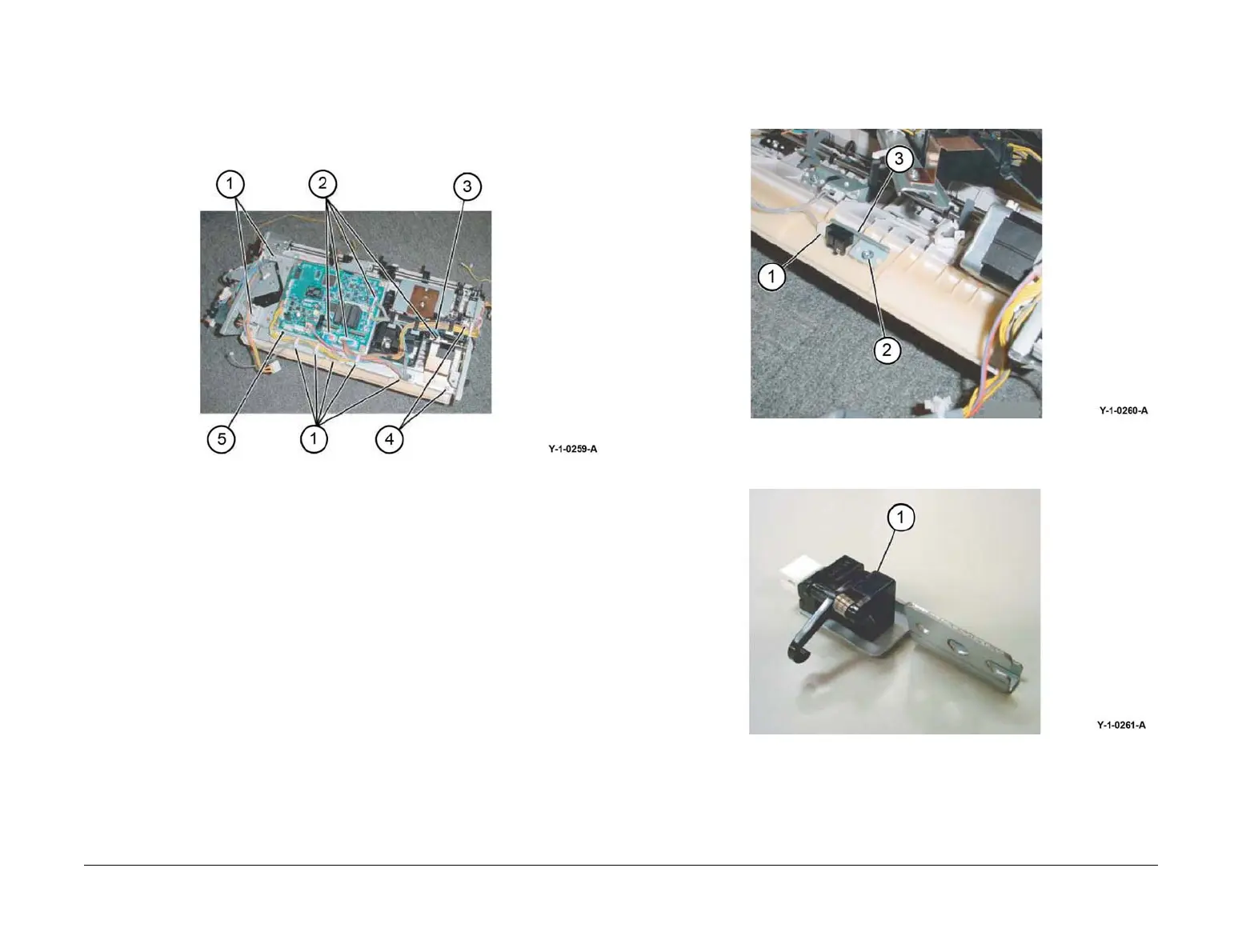

Figure 2 Bottom plate removal
6. Remove the finisher entrance sensor assembly, Figure 3:
a. Disconnect the connector (1).
b. Remove the self-tapping screw (2).
c. Remove the finisher entrance sensor assembly (3).
Figure 3 Finisher entrance sensor assembly removal
7. Remove the finisher entry sensor (1) from the bracket, Figure 4.
Figure 4 Finisher entry sensor removal
Replacement
The replacement is the reverse of the removal procedure.
