Xerox VersaLink B7030 Service Manual

April 2017
4-68
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.10
Launch Issue
Repairs and Adjustments

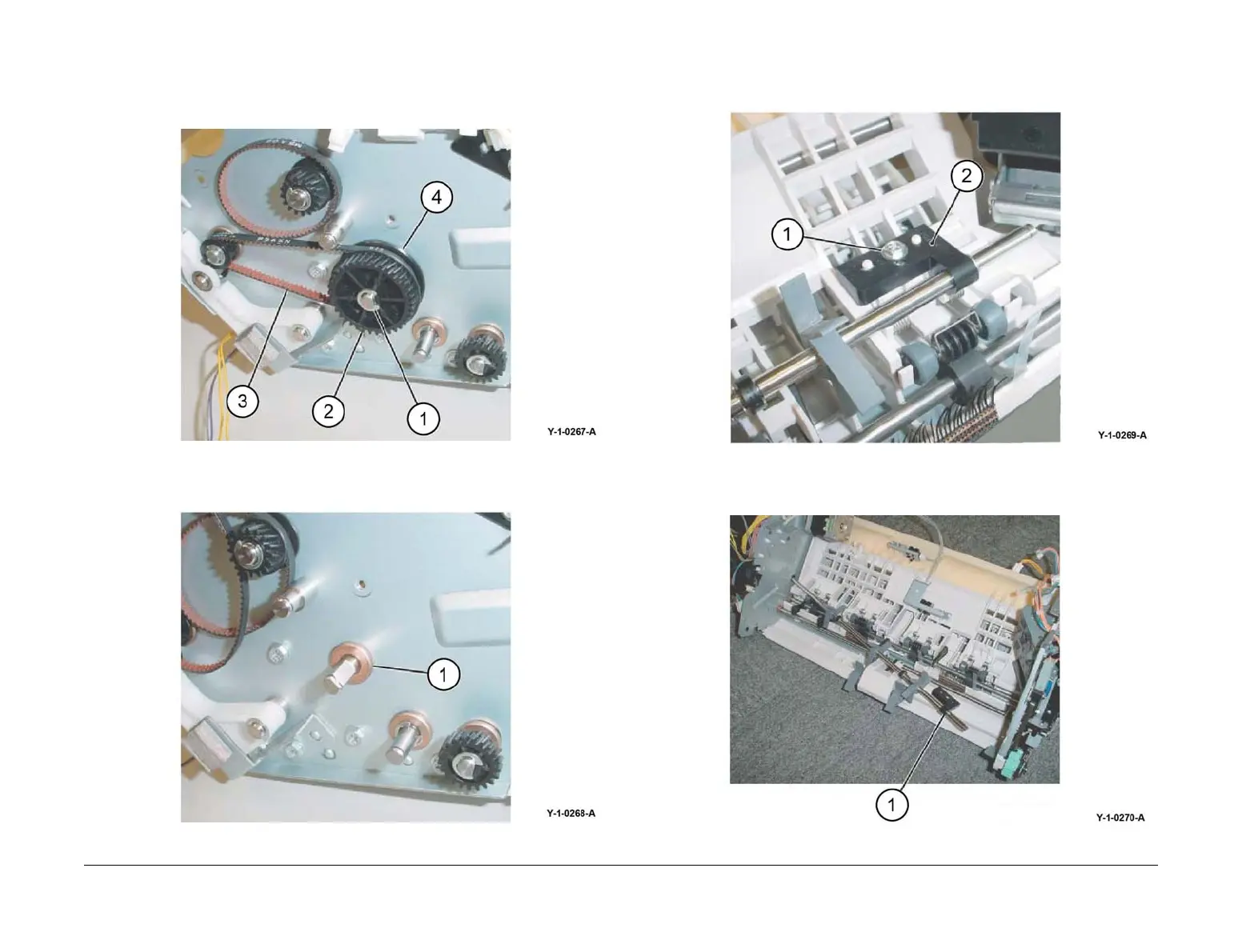

4. Remove the gear pulley, Figure 2:
a. Remove the E-clip (1).
b. Remove the gear (2).
c. Remove the flange (3).
Figure 2 Gear pulley removal
5. Remove the bearing, Figure 3.
Figure 3 Bearing removal
6. Remove the support bearing from the entrance lower chute assembly, Figure 4:
a. Remove the self-tapping screw (1).
b. Remove the support bearing (2).
Figure 4 Support bearing removal
7. Remove the main paddle shaft assembly, Figure 5.
Figure 5 Main paddle shaft assembly removal

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
