Xerox VersaLink B7030

April 2017
4-85
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.22
Repairs and Adjustments
Launch Issue

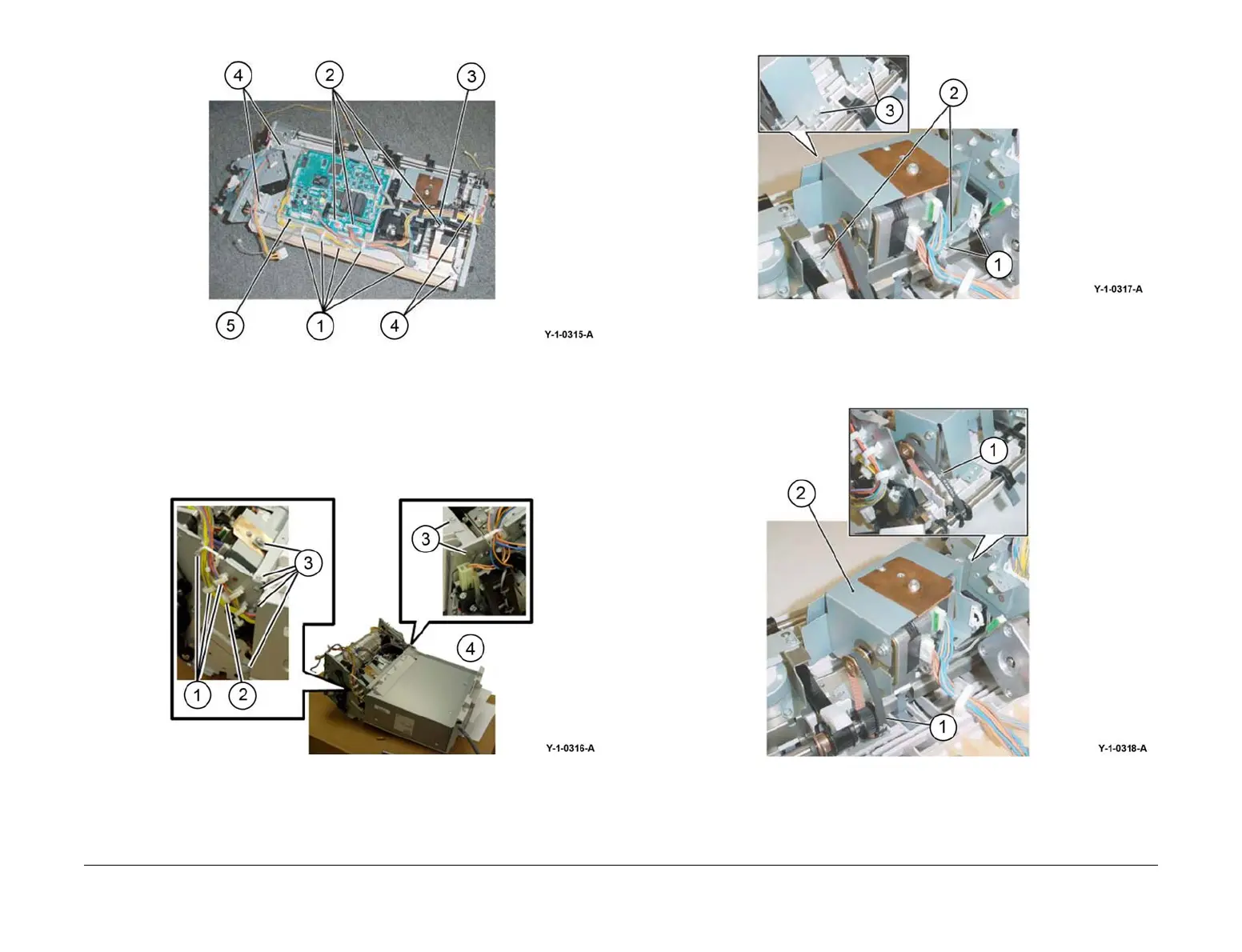

Figure 2 Bottom plate removal
8. Remove the stacker tray, Figure 3:
a. Release the harness from the five clamps (1).
b. Disconnect the connector (2).
c. Remove seven screws (3).
d. Remove the stacker tray (4).
Figure 3 Stacker tray removal
9. Remove the screws securing the eject/set clamp motor assembly, Figure 4:
a. Release the harness from both clamps (1).
b. Remove both screws (2).
c. Remove both self-tapping screws (3).
Figure 4 Screw removal
10. Remove the eject/set clamp motor assembly, Figure 5:
a. Remove both belts (1) from the Pulleys.
b. Remove the eject/set clamp motor assembly (2).
Figure 5 Eject/set clamp motor assembly removal
Replacement
The replacement is the reverse of the removal procedure.
