REP 12.24
Launch Issue
Repairs and Adjustments

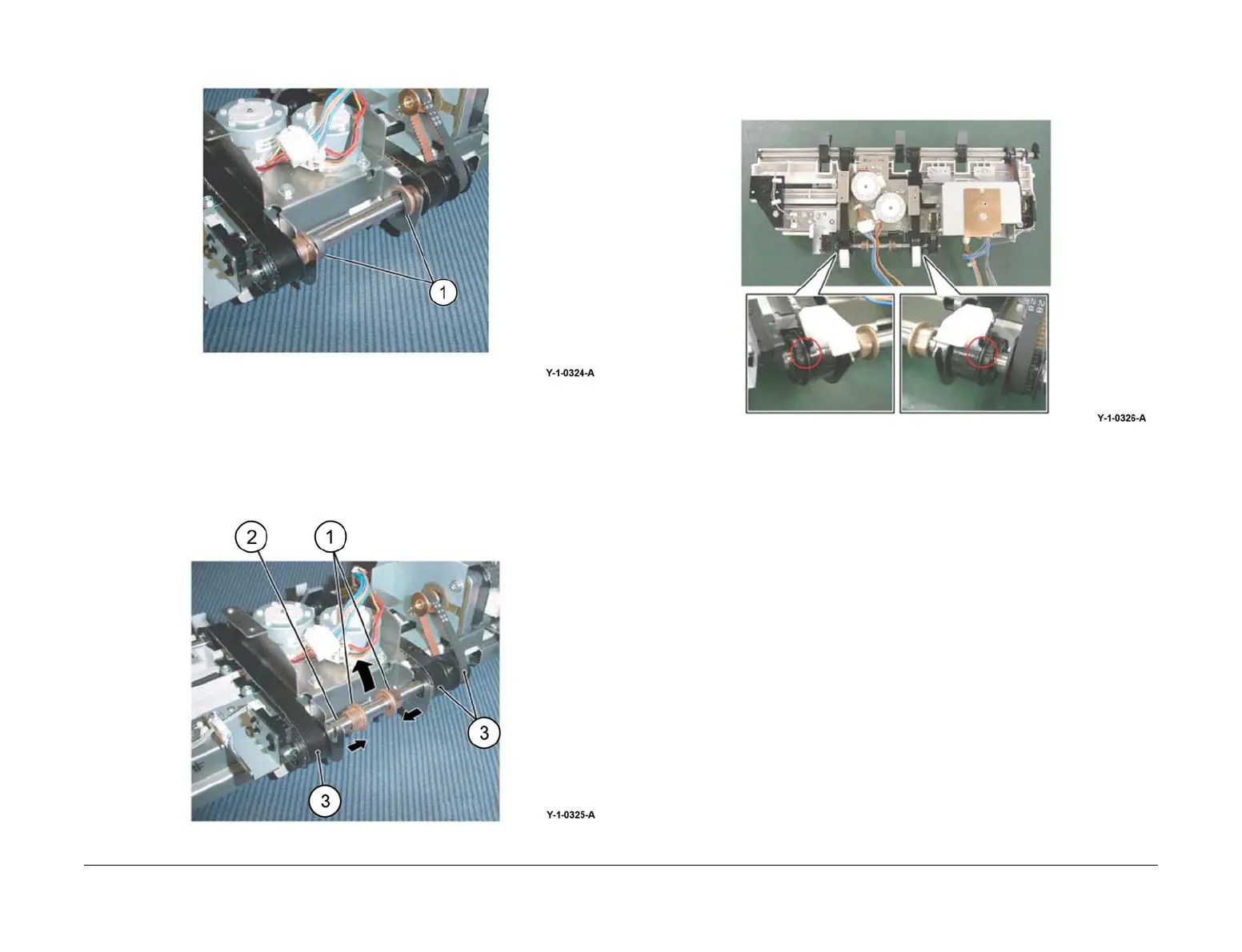

3. Remove the KL-clips (2) from the eject shaft, Figure 2.
Figure 2 KL-clips
4. Remove the eject shaft from the front/rear tamper motor assembly, Figure 3:
a. Move the bearings (1) in the direction of the arrow.
b. Remove the eject shaft (2) in the direction of the arrow.
c. Remove the belts (3) from the pulley.
Figure 3 Eject shaft removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the eject belt is aligned with the marks on the pulleys, Figure 4.
Figure 4 Eject belt installation
