3. Remove the booklet stapler move motor, Figure 2:
a. Release the harness from the clamp (1).
b. Disconnect the connector (2).
c. Remove three screws (3).
d. Remove the booklet stapler move motor (4).

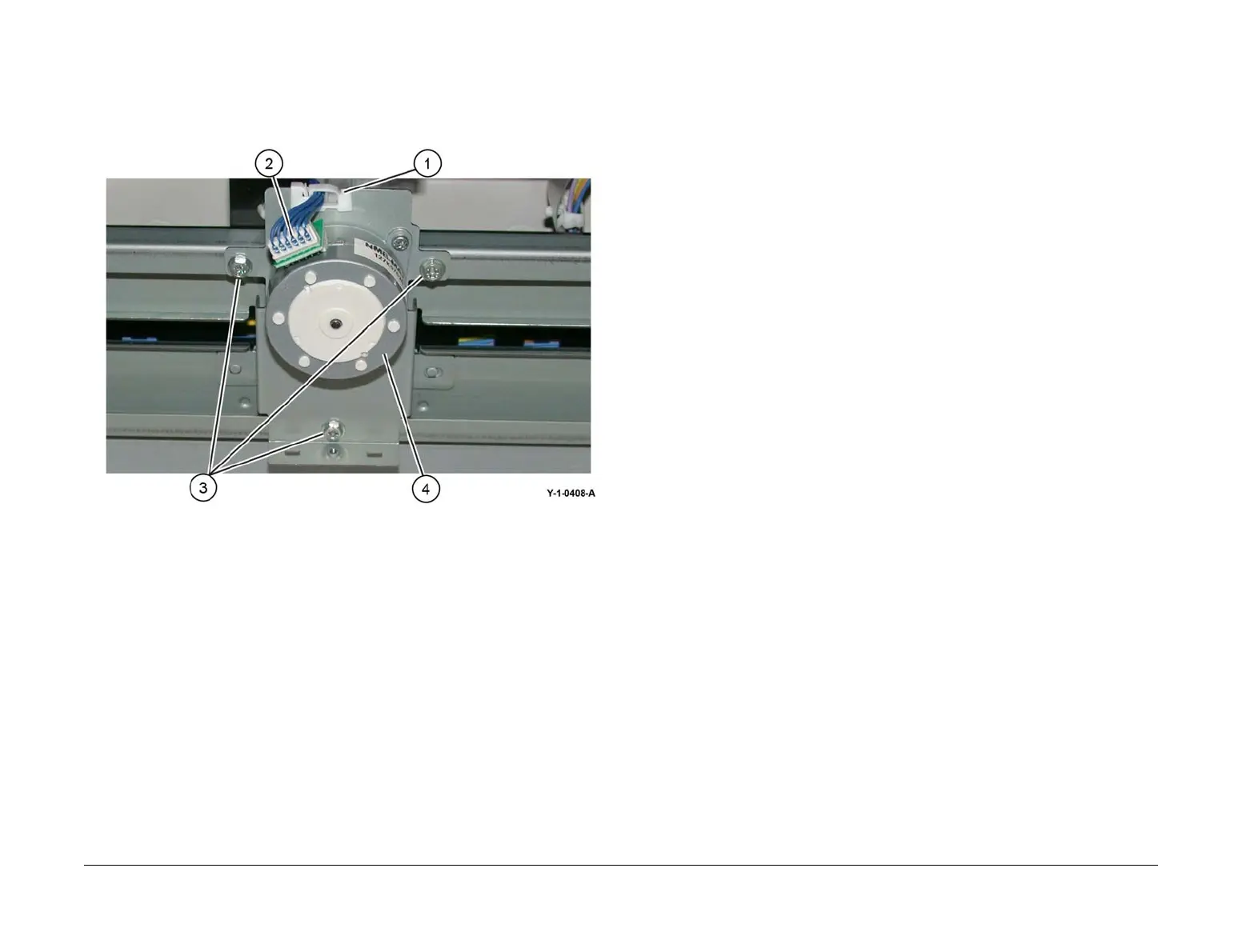

Figure 2 Booklet stapler move motor removal
Replacement
The replacement is the reverse of the removal procedure.
