Xerox VersaLink B7030 Service Manual

April 2017
4-146
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.3
Launch Issue
Repairs and Adjustments

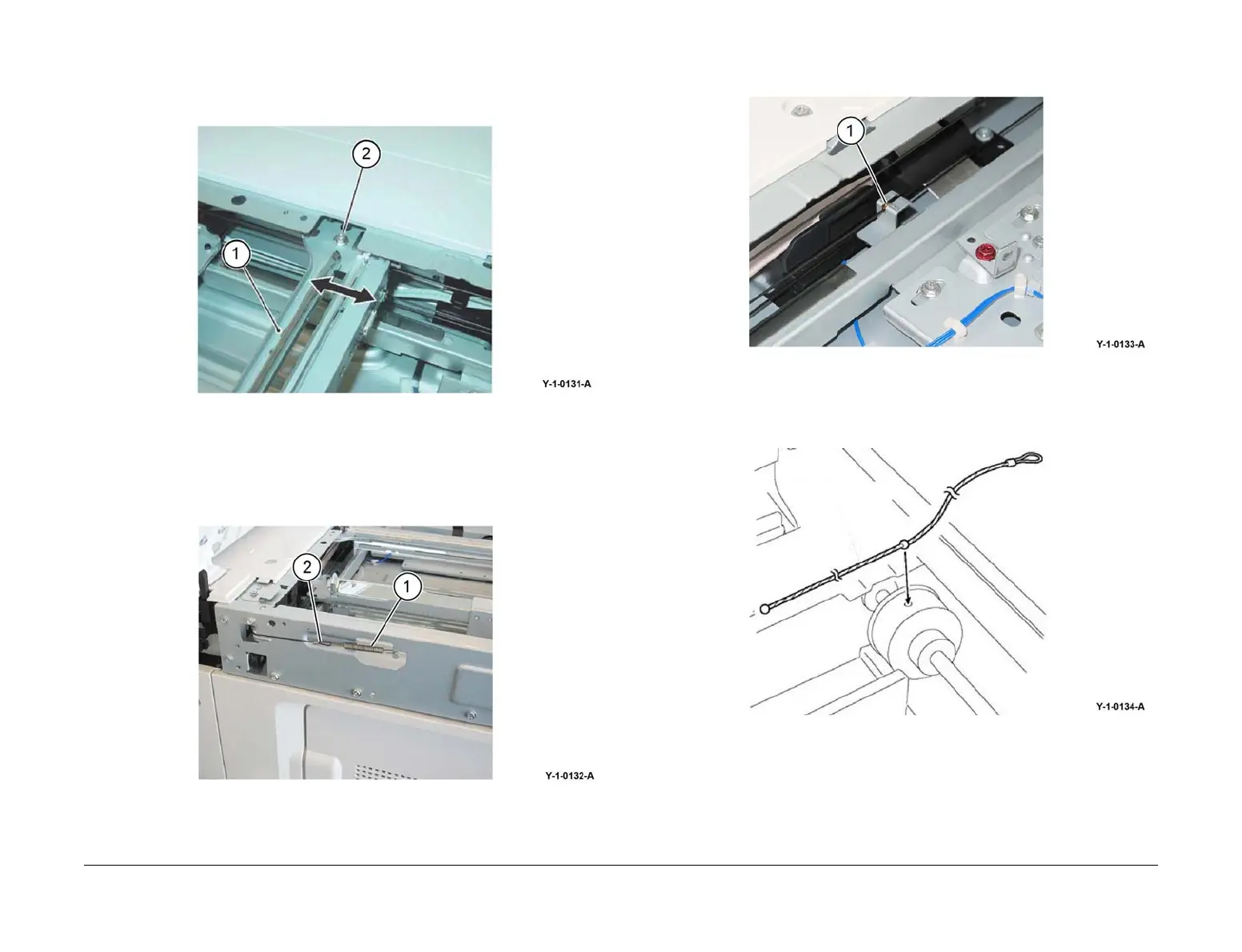

7. Detach the carriage cable from the full rate carriage, Figure 3:
a. Move the full rate carriage (1) to the cutout in the frame.
b. Remove the screw (2).
Figure 3 Cable detachment
8. Prepare to remove the carriage cable, Figure 4:
a. Unhook the extension spring (1) from the frame.
b. Detach the cable (2) from the extension spring.
Figure 4 Preparation
9. Remove the anchor ball (1) from the notch in the frame, then remove the carriage cable,
Figure 5.
Figure 5 Cable removal
Replacement
1. Insert the anchor ball of the carriage cable into the groove in the capstan, Figure 6.
Figure 6 Anchor ball

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
