Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.6
Launch Issue
Repairs and Adjustments

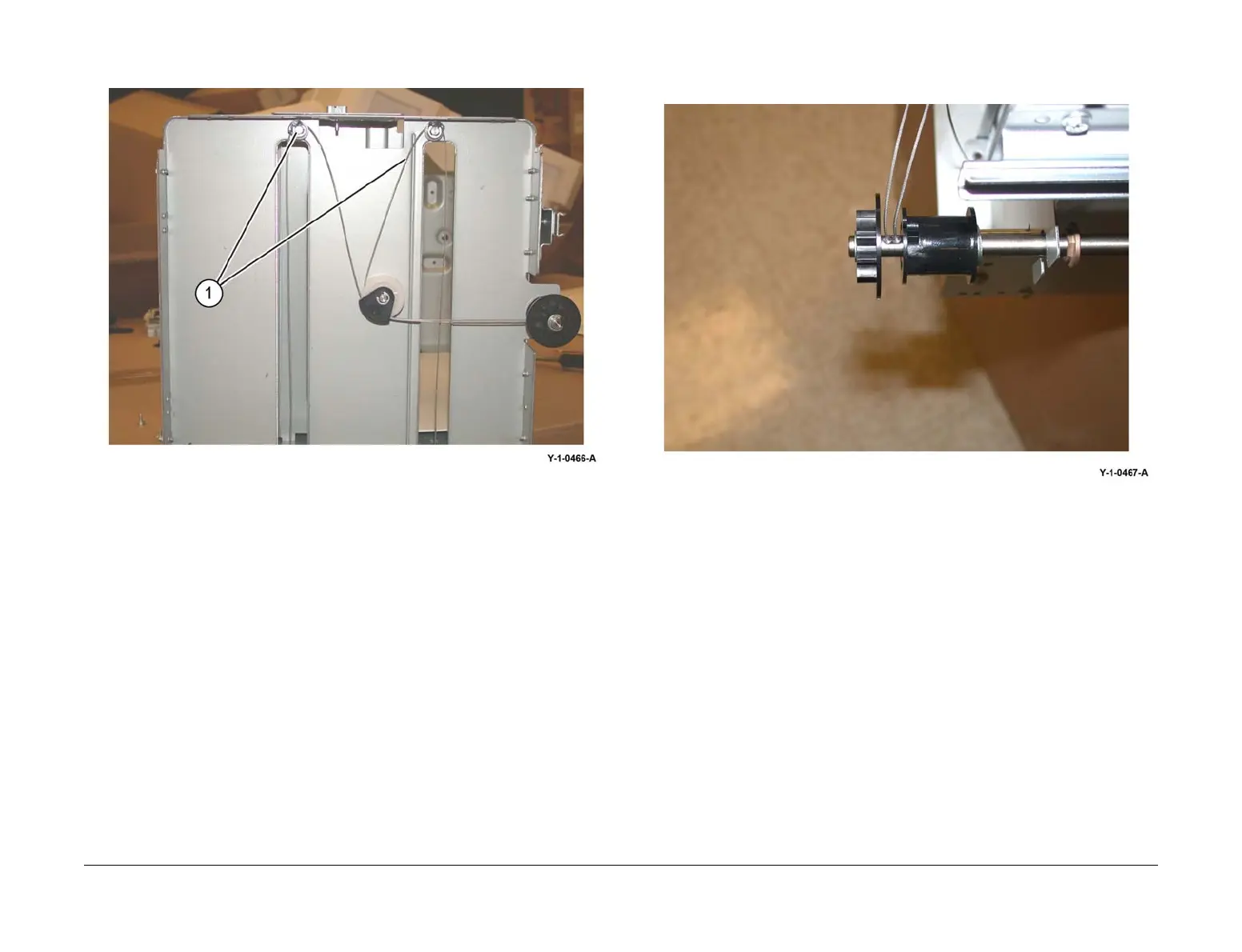

3. Prepare to remove the tray front cables. Remove two E-rings, wire guides and pulleys (1)
from the front of the HCF tray, Figure 2.
Figure 2 Preparation
4. When both cables are slack, disengage the lift shaft from the frame, Then slide the tray
cable pulley to the front of the lift shaft to release the rear lift cable ends that are trapped
in the pocket underneath the tray cable pulley, Figure 3.
Figure 3 Releasing the cable ends
