Xerox VersaLink B7030 Service Manual

April 2017
4-184
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.8
Launch Issue
Repairs and Adjustments
5. Remove the tray 3 feeder assembly, Figure 2:
a. Disconnect two connectors (1).
b. Remove two screws (2).
c. Remove the tray 3 feeder assembly (3).

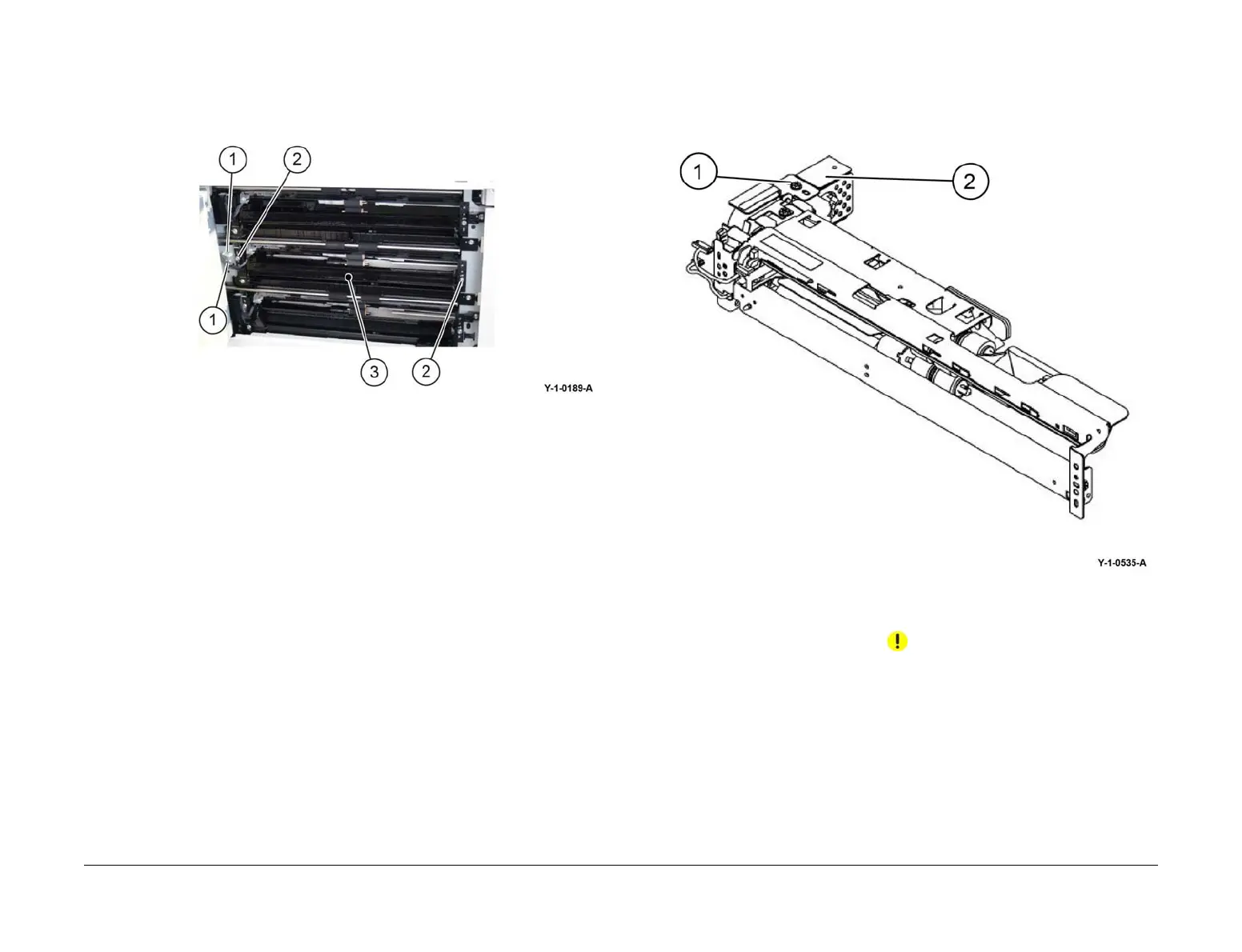

Figure 2 Tray 3 feeder assembly removal
6. Remove the FDR 2T cover from the tray 3 feeder assembly, Figure 3.
a. Remove the screw (1).
b. Remove the FDR 2T cover (2). Retain the cover for installation onto the new tray 3
feeder assembly.
Figure 3 FDR 2T cover removal
Replacement
CAUTION
Ensure that the FDR 2T cover is installed onto the new tray 3 feeder assembly. Refer to Figure
3.
1. The replacement is the reverse of the removal procedure.
2. If new tray 3 feeder assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 954-802.
