Xerox VersaLink B7030 Service Manual

April 2017
4-196
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.18
Launch Issue
Repairs and Adjustments

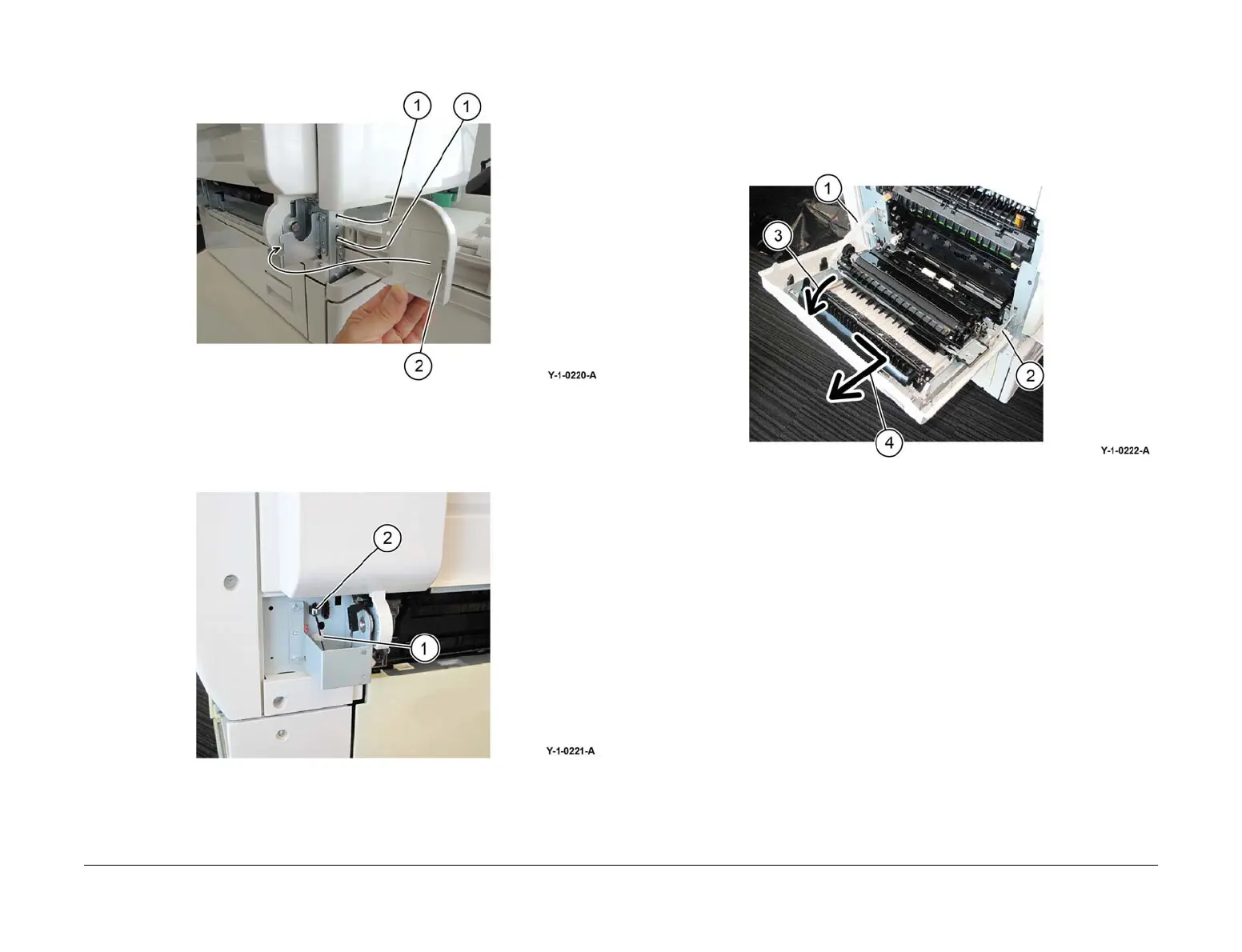

3. Pull out the bossed (1) from the mounting holes. Release the hook (2), then remove the
hinge front cover, Figure 2.
Figure 2 Hinge front cover removal
4. Disconnect the connector, Figure 3:
a. Release the harness from the retainer (1).
b. Disconnect the connector (2).
Figure 3 Connector
5. Remove the L/H cover, Figure 4:
a. Open the LH cover.
b. Rotate by 90 degrees, then disconnect the rear support (1).
c. Rotate by 90 degrees, then disconnect the front support (2).
d. Hold the L/H cover (3) open at 90 degrees.
e. Remove the L/H cover in the direction of the arrow (4).
Figure 4 LH cover removal

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
