Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.20
Repairs and Adjustments
Launch Issue

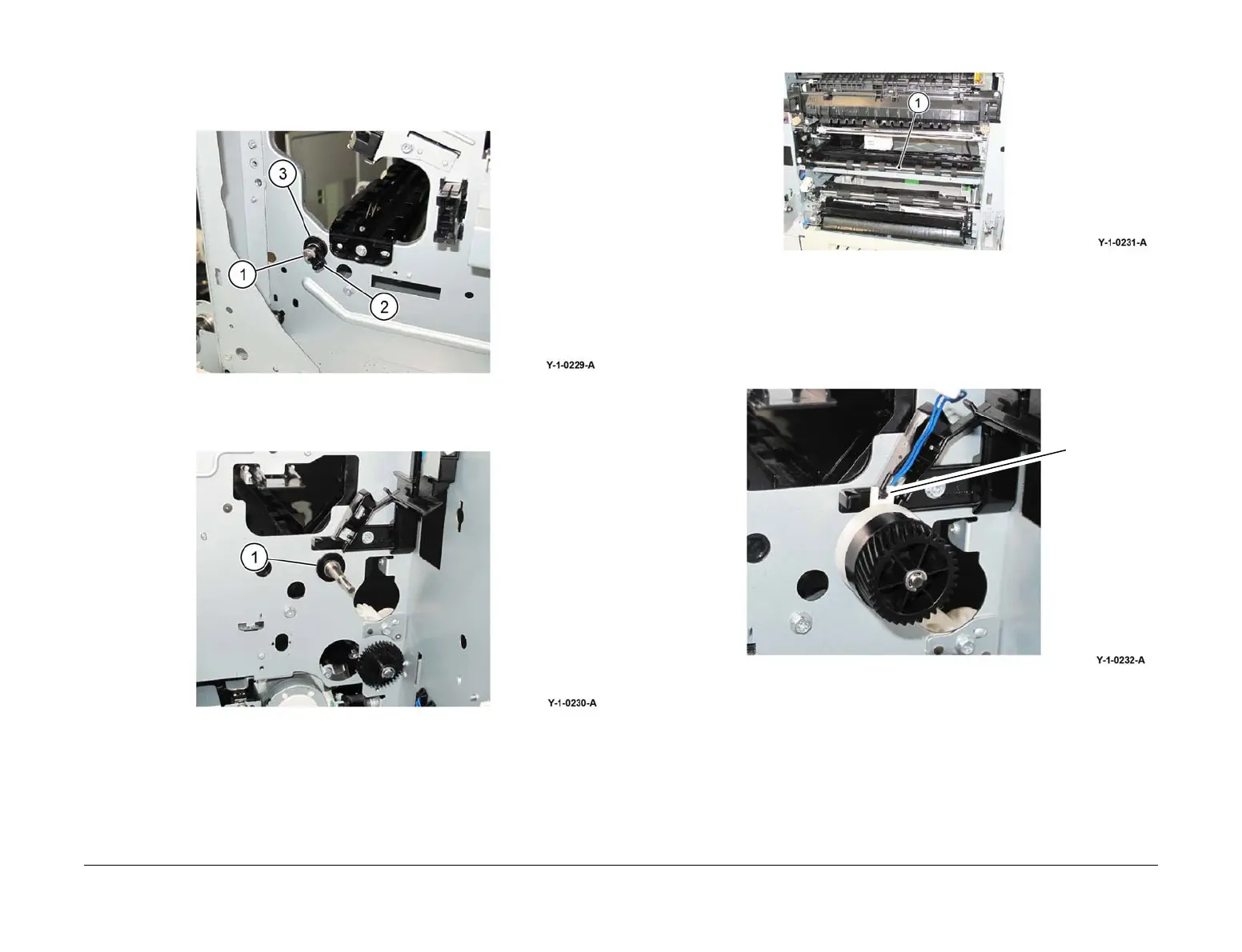

9. Remove the front bearing, Figure 2:
a. Remove the E-clip (1).
b. Remove the registration coupling (2).
c. Remove the bearing (3).
Figure 2 Front bearing removal
10. Remove the rear bearing, Figure 3.
Figure 3 Rear bearing removal
11. Remove the registration roll, Figure 4.
Figure 4 Registration roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. When installing the registration clutch assembly, align the cutout with the harness guide
tab, Figure 5.
Figure 5 Alignment
Cutout
