April 2017
4-208
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.33
Launch Issue
Repairs and Adjustments

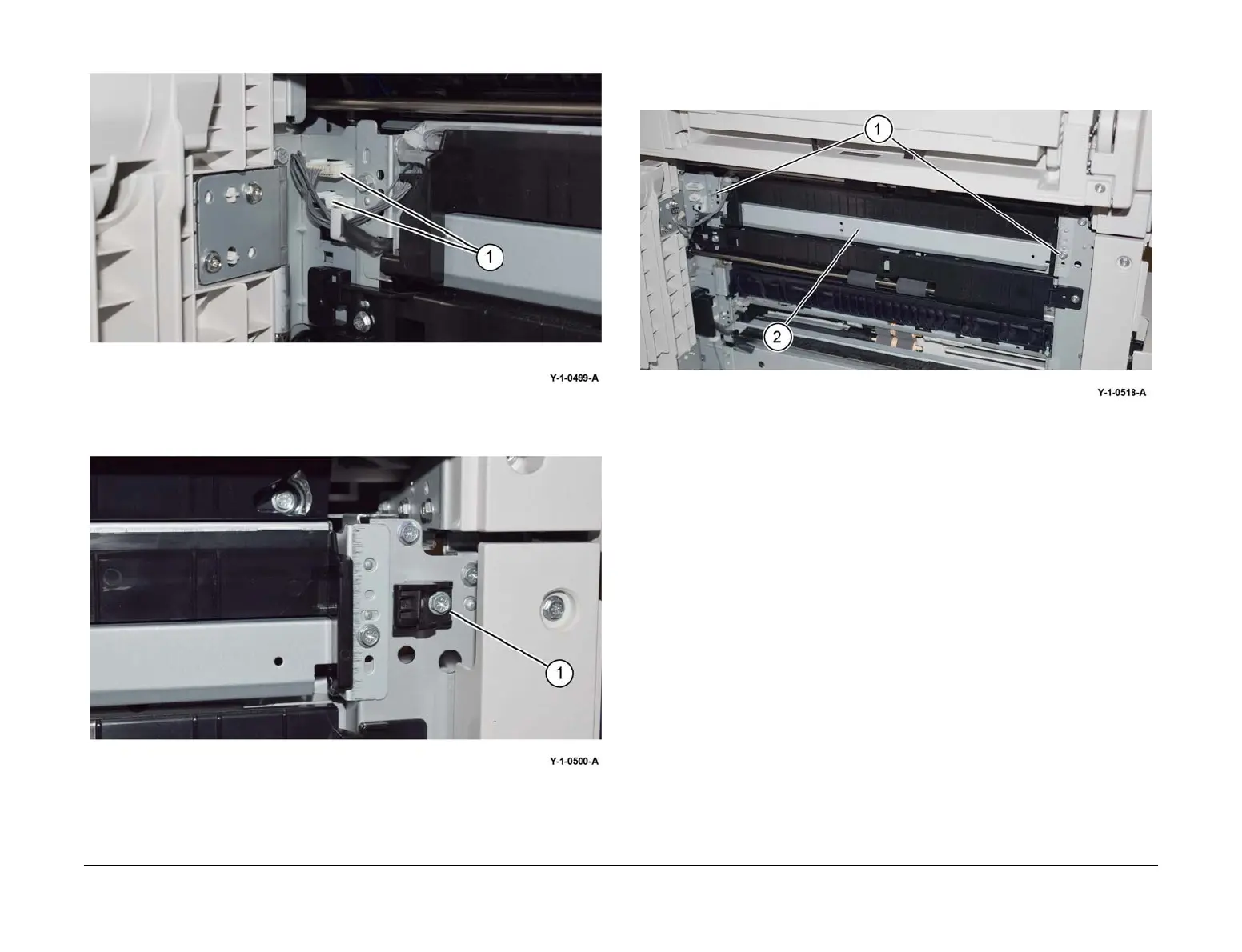

5. Disconnect 2 connectors (1), Figure 2.
Figure 2 Connectors
6. Remove the upper door catch (1), Figure 3.
Figure 3 Door catch
7. Remove the tray 2 feeder assembly, Figure 4:
a. Remove two screws (1).
b. Remove the tray 2 feeder assembly (2).
Figure 4 Tray 2 feeder assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new tray 2 feeder assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 954-801.
