April 2017
4-210
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.34
Launch Issue
Repairs and Adjustments

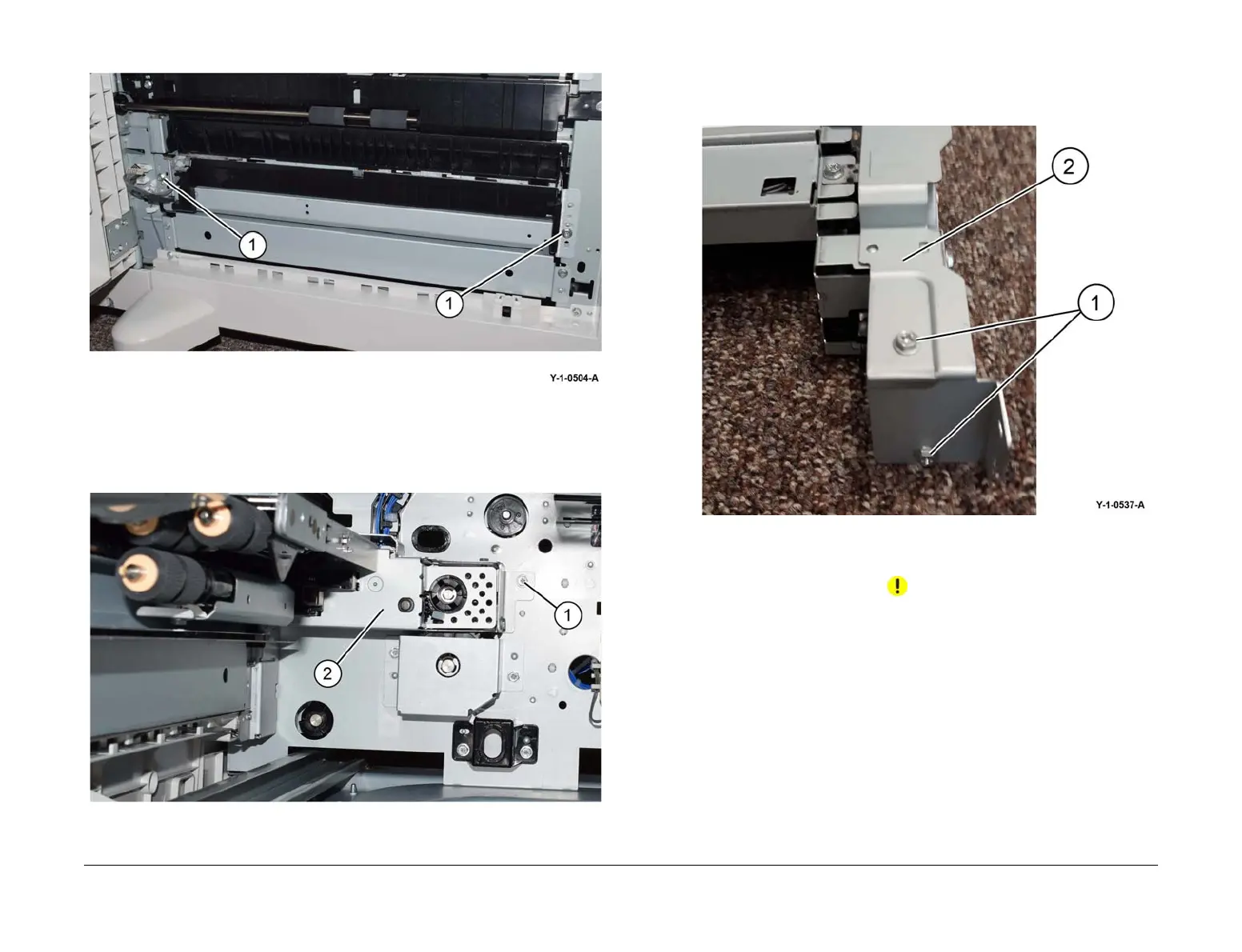

7. Remove two screws (1), Figure 4:
Figure 4 Tray 3 feeder assembly left side fittings
8. Remove the complete tray 3 feeder assembly including bracket, Figure 5.
a. Remove the screw (1).
b. Remove the tray 3 feeder assembly (2).
Figure 5 Tray 3 feeder assembly removal
9. Remove the feeder cover from the tray 3 feeder assembly, Figure 6.
a. Remove two screws(1).
b. Remove the feeder cover (2). Retain the cover for installation onto the new tray 3
feeder assembly.
Figure 6 Feeder cover removal
Replacement
CAUTION
Ensure that the feeder cover is installed onto the new tray 3 feeder assembly. Refer to Figure
6.
1. The replacement is the reverse of the removal procedure.
2. If new tray 3 feeder assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 954-802.
