Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 90.6
Repairs and Adjustments
Launch Issue
7. Remove the AC housing assembly, Figure 3:
a. Remove two screws (1).
b. Remove the AC housing assembly (2).

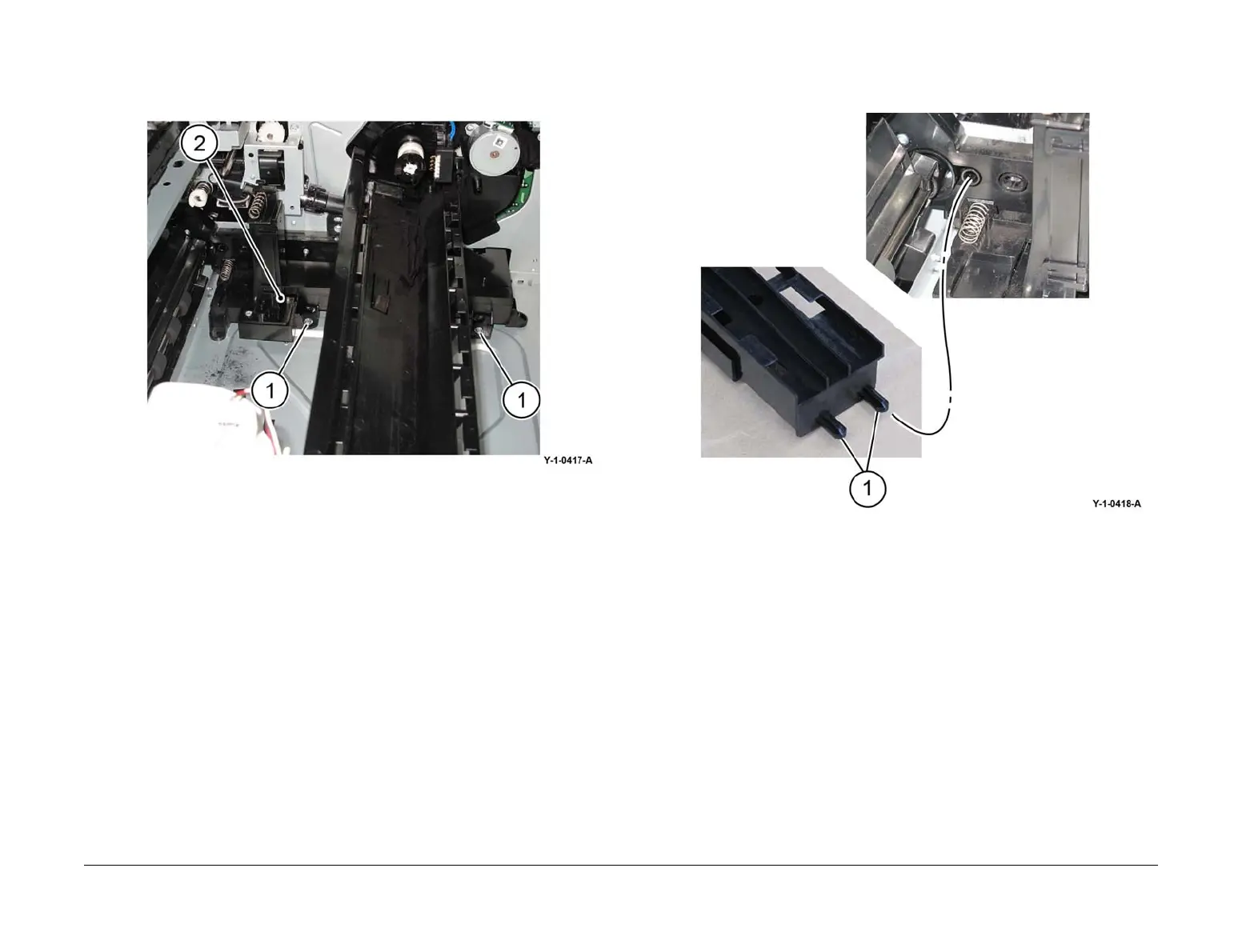

Figure 3 AC housing assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. When installing the lower guide assembly, align the bosses (1) with the holes, Figure 4.
Figure 4 Alignment
