Datalogic Magellan 9800i User Manual

Product Reference Guide 47

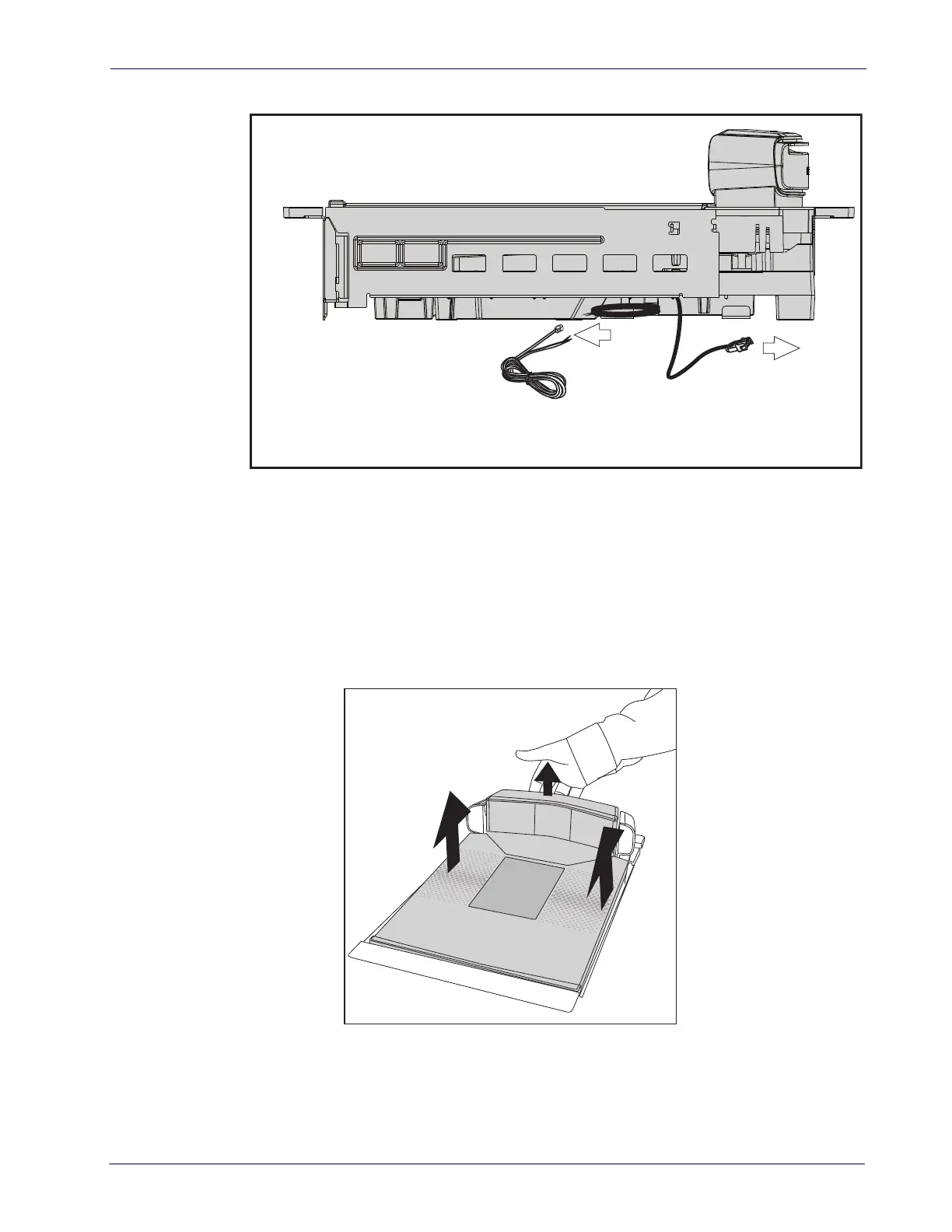

Figure 32. Optional EAS Cable Connections
To Checkpoint
®
EAS System
To Sensormatic
®
EAS System
5. Make sure that all cables are firmly attached (except that the AC/DC power supply should
not be connected to the AC outlet yet).
6. Remove the All Weighs™ Platter to gain access to the lift handles. Lift the top edge of the
platter
bezel as shown in
Figure 33 and gently lift it from the scanner. If the top edge of
the platter is blocked, you may find it easier to grasp edges of the platter as shown by the
arr
ows.
Figure 33. Removing the All Weighs™ Platter
7. The scanner provides lift handles that must be rotated up into position for use as shown
in
Figure 34. When released, these handles should be allowed to rotate back down into
their seated positions in the cavity. Use reasonable care when attempting to lift the unit
using any
features other than the lift handles.

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
