308-06-118 Manual Transaxle External Controls 308-06-118
REMOVAL AND INSTALLAT ION (CONTINUED)
E6707 EN 07/2001

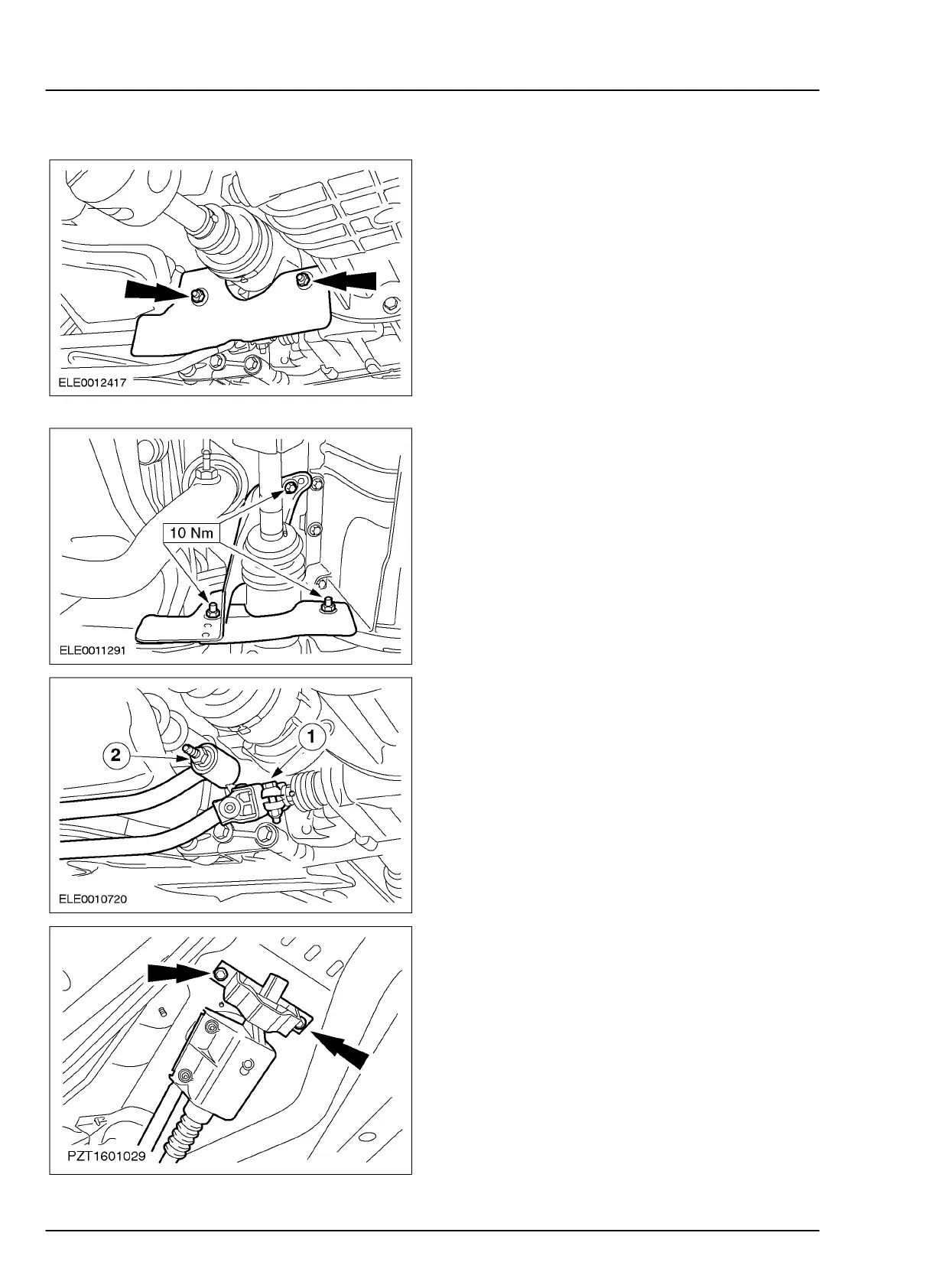

Vehicles with diesel engine
6. Remove the halfshaft heat shield.
Vehicles with 1.6L / 1.3L engine
7. Remove the halfshaft heat shield.
8. Disconnect the shift rod and the shift rod
stabilizer.
1. Disconnect the shift rod
2. Disconnect the shift rod stabilizer
9. Remove the gearshift mounting.
To Next Page
