412-00-31 Climate Control System — General Information 412-00-31
DIAGNOSIS AND TESTING (CONTINUED)
CONDITIONS
DETAILS/RESULTS/ACTIONS
4 Connect a jumper wire at the relay socket –
A/C re-circulation flap, connector C342,
between pin 5, circuit 31S-CA76 (BK/OG) and
pin 3, circuit 31-CA76A (BK).
• Is the re-circulation air actuator activated?
 Yes
GO TO D10
 No
REPAIR the open circuit(s) between relay –
A/C re-circulation flap and ground G6 by us-
ing the wiring diagrams. TEST the system
for normal operation.

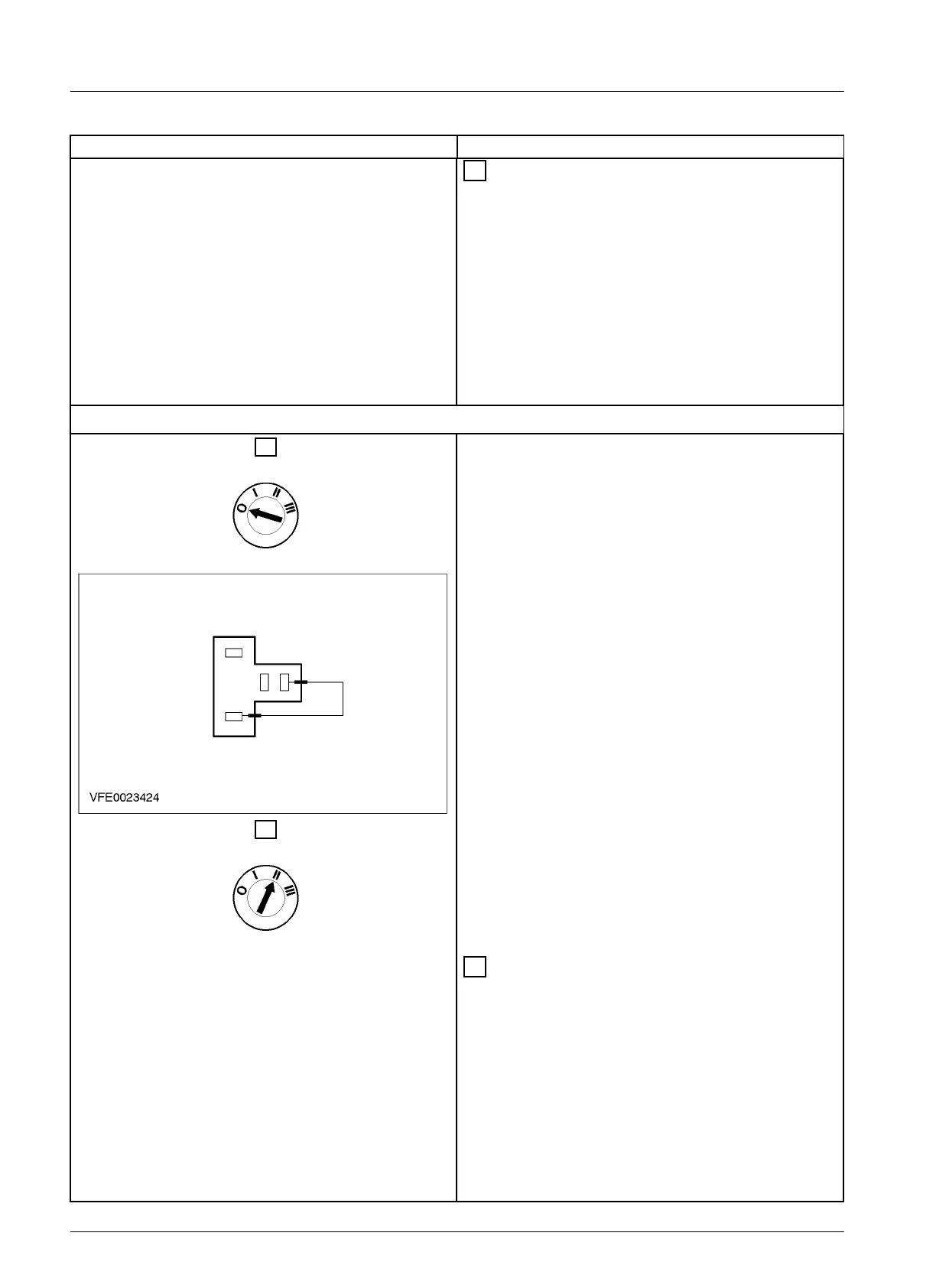

D10: CHECK THE GROUND CONNECTION OF RELAY – A/C RE-CIRCULATION FLAP
1.
3.
4 Connect a jumper wire at the relay socket –
A/C re-circulation flap, connector C342,
between pin 5, circuit 31S-CA76 (BK/OG) and
pin 1, circuit 31-CA66 (BK).
• Is the re-circulation air actuator activated?
 Yes
GO TO D11
 No
REPAIR the open circuit(s) between relay –
A/C re-circulation flap and ground G6 by us-
ing the wiring diagrams. TEST the system
for normal operation.
