REMOVAL AND INSTALLATION (CONTINUED)
1. Fit the compressor electromagnetic pull-in
clutch.

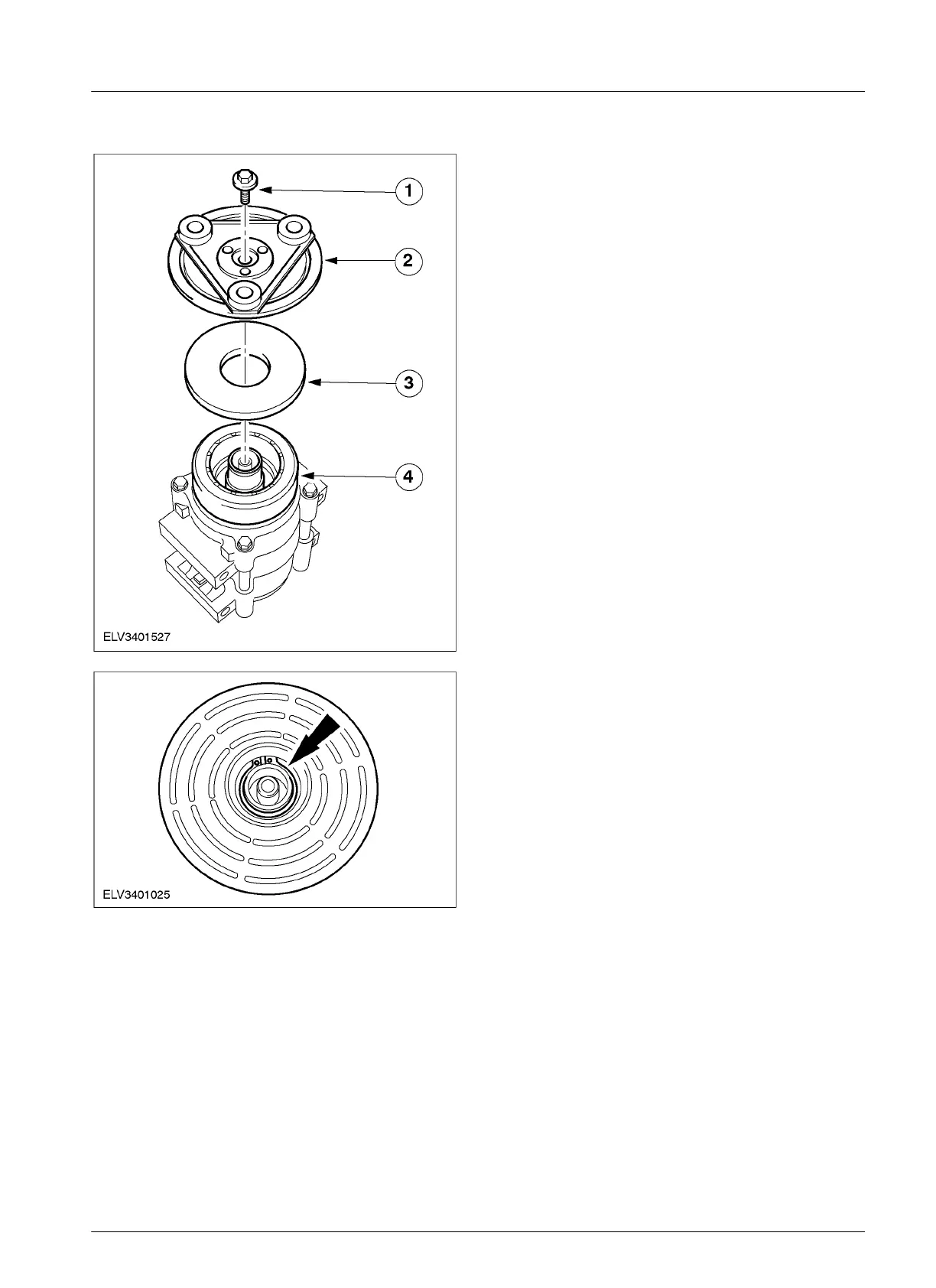

• Press on the compressor magnetic coil
using a suitable thrust washer.
1. Bolt M6x30 with washer
2. Drive plate
3. Thrust washer
4. Electromagnetic pull-in clutch
NOTE: Renew the pulley snap ring.
2. Fit the compressor pulley.
• Fit the pulley snap-ring.
NOTE: There is a gap between the compressor
drive plate and the compressor pulley.
