DIAGNOSIS AND TESTING (CONTINUED)
CONDITIONS
DETAILS/RESULTS/ACTIONS

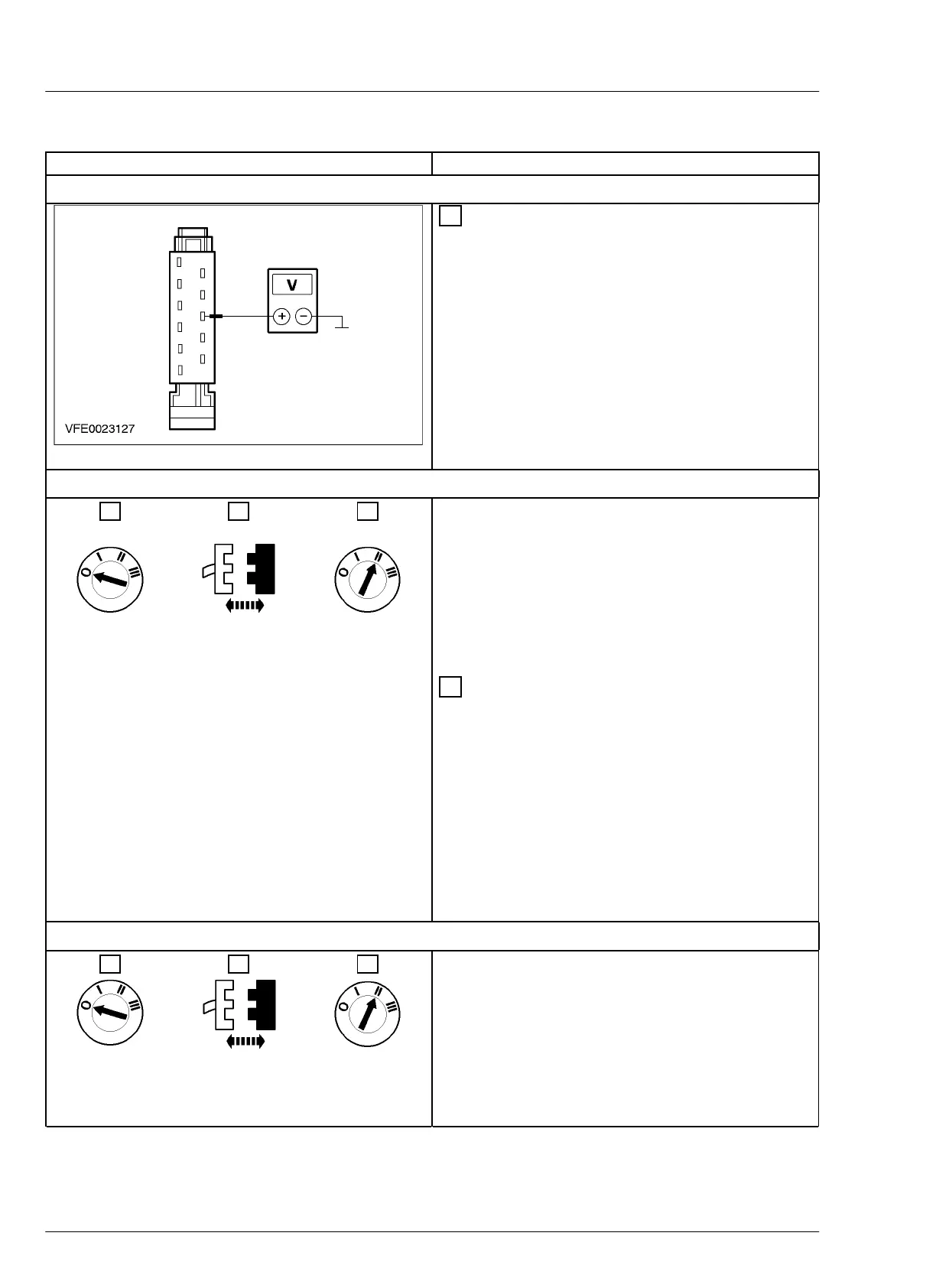

F9: CHECK THE CONTROL CIRCUIT OF RELAY – HIGH BEAM FOR SHORT TO POWER
1 Measure the voltage between multifunction
switch, connector C15a, pin 3, circuit 14S-
LE12 (VT/YE), harness side and ground.
• Is battery voltage indicated?
Yes
REPAIR the short to power, circuit(s)
connected with the multifunction switch,
connector C15a, pin 3, by using the wiring
diagrams. TEST the system for normal
operation.
No
INSTALL a new relay – high beam. TEST
the system for normal operation.
F10: CHECK THE CIRCUIT TO RIGHT-HAND HIGH BEAM HEADLAMP FOR SHORT TO POWER
1.
2.
Fuse F22 (10 A)
(CJB)
3.
4 Check if the right-hand high beam headlamp is
on continuously.
• Is the right-hand high beam headlamp on
continuously?
Yes
REPAIR the short to power, circuit(s)
connected with the headlamp, right-hand
side, connector C46, pin 1, by using the
wiring diagrams. TEST the system for
normal operation.
No
GO TO F11
F11: CHECK THE CIRCUIT TO LEFT-HAND HIGH BEAM HEADLAMP FOR SHORT TO POWER
1.
2.
Fuse F21 (10 A)
(CJB)
3.
