501-14-21 Handles, Locks, Latches and Entry Systems 501-14-21
DISASSEMBLY AND ASSEMBLY (CONTINUED)
E6385 EN 08/2001 2002 Bantam

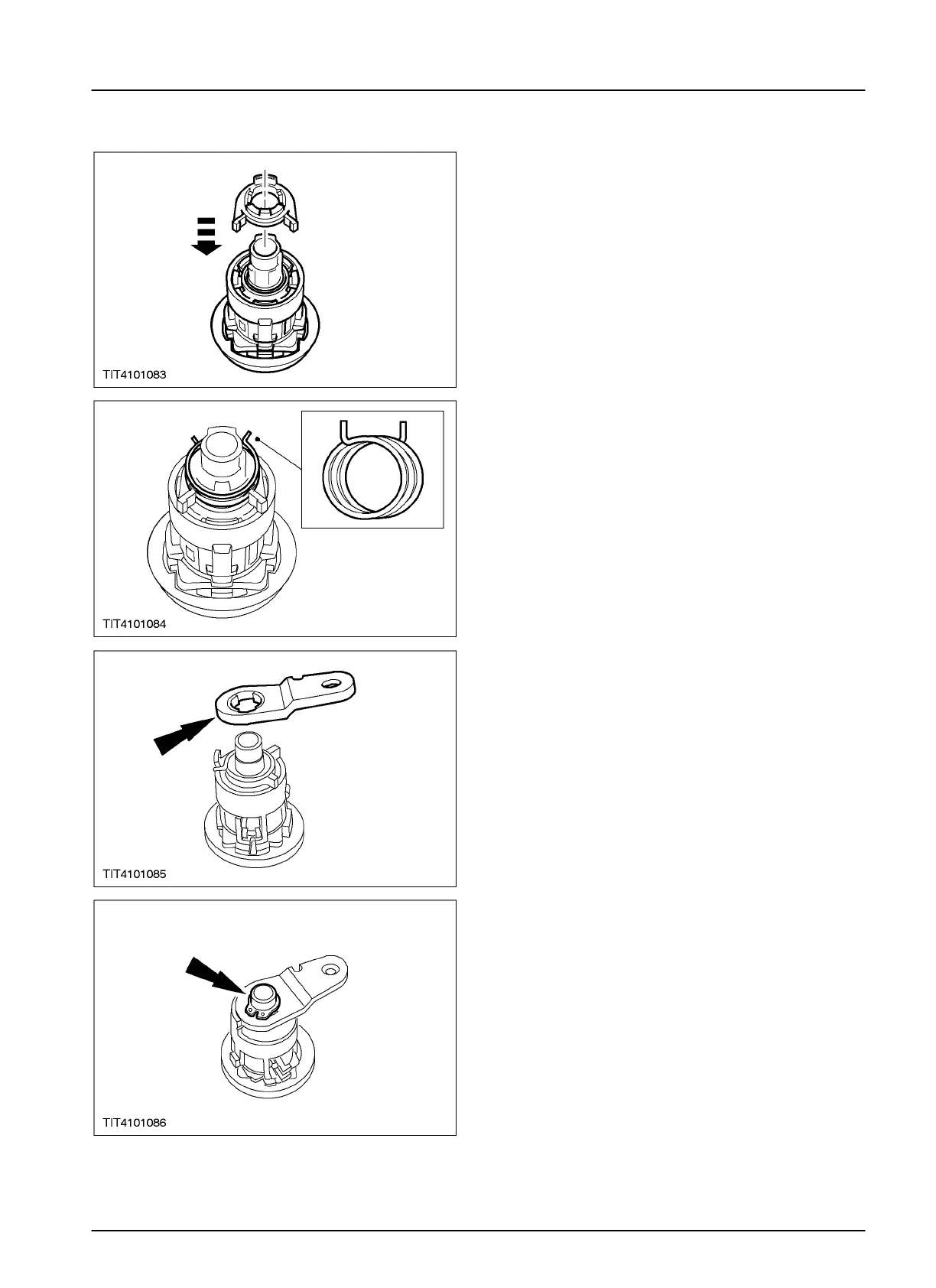

8. Fit the alarm actuator.
9. NOTE: Cross the lever return spring tangs.
Install the lever return spring.
10. NOTE: An R for right-hand or L for left-hand
stamped on to the operating lever will
determine which door lock it operates.
Install the operating lever.
11. Install the retaining clip.
