211-02-52 Power Steering 211-02-52
REMOVAL AND INSTALLATION (CONTINUED)

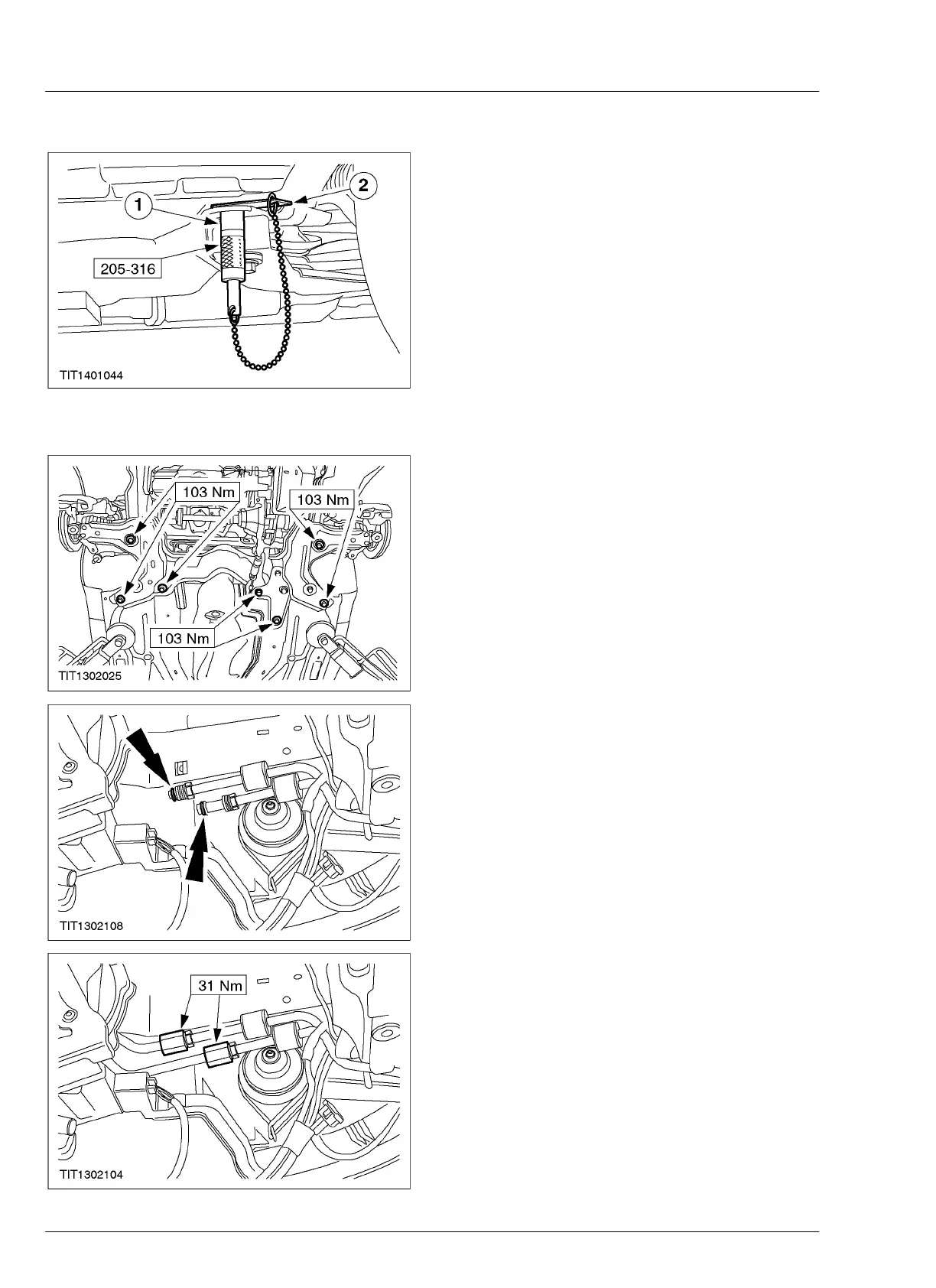

3. Align the crossmember.
1. Push the guide pins through the
crossmember aligning holes.
2. Slide the locking plates into the locking
grooves and tighten the guide pin sleeves.
4. Raise the crossmember engaging the guide
pins into the alignment holes.
5. Renew the union sealing O-rings.
E6320 EN 07/2001 2002 Bantam
