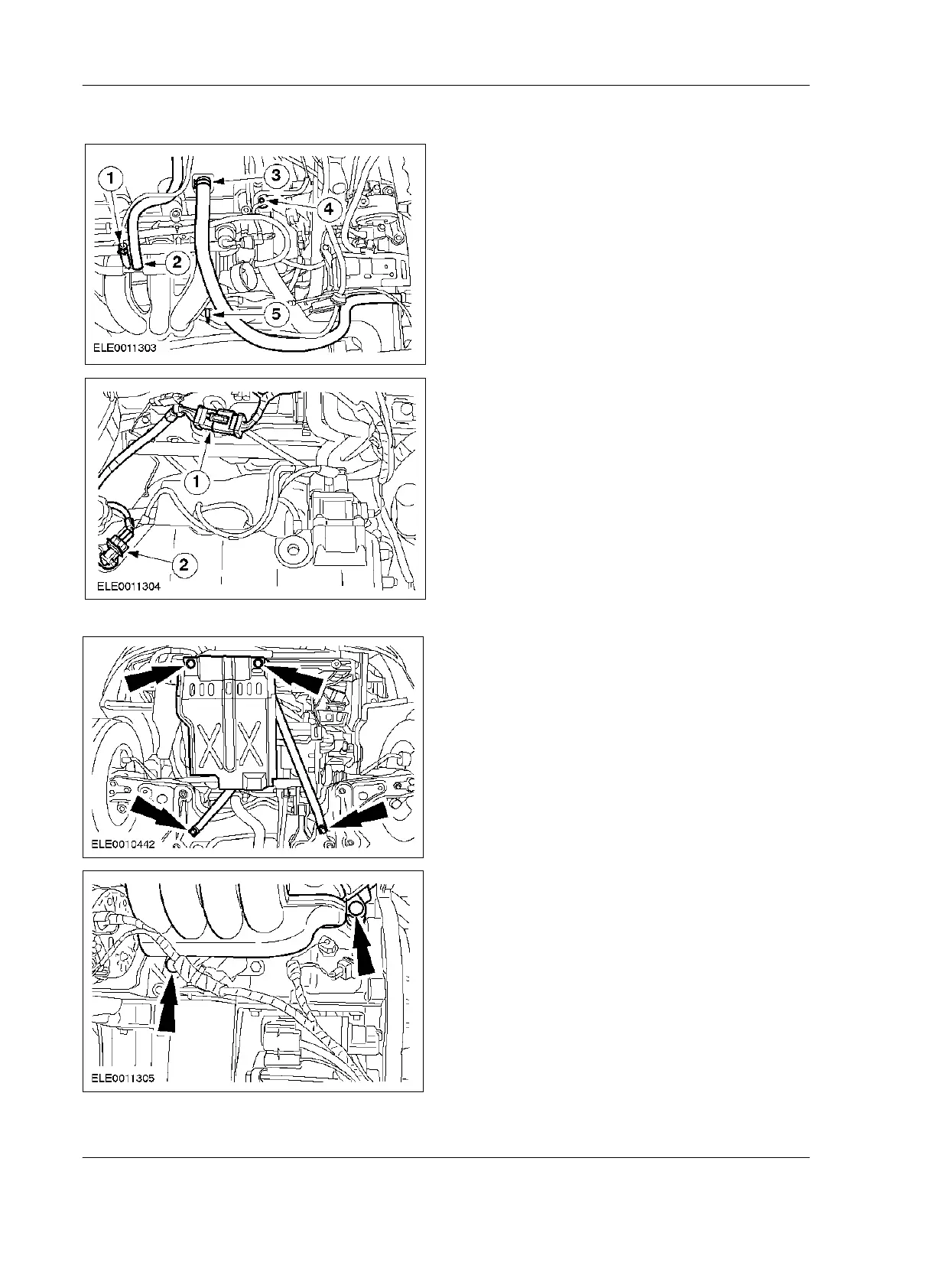

5. Remove the hoses and the electrical
connector.
1. EVAP solenoid valve vacuum hose.
2. Positive crankcase ventilation (PCV)
hose.
3. Crankcase breather hose.
4. Engine coolant temperature (ECT)
sensor electrical connector.
5. Brake booster vacuum hose.
6. Disconnect the electrical connectors.
1. Powertrain control module (PCM).
2. Camshaft position (CMP) sensor.
7. Raise and support the vehicle. For
additional information, refer to Section 100-
02.
8. Remove the engine undershield.
9. Remove the intake manifold lower retaining
bolts (shown with the engine removed).
