303-01B-66 Engine — 1.6L / 1.3L RoCam 303-01B-66
IN-VEHICLE REPAIR (CONTINUED)
E6640 EN 07/2001 2002 Bantam

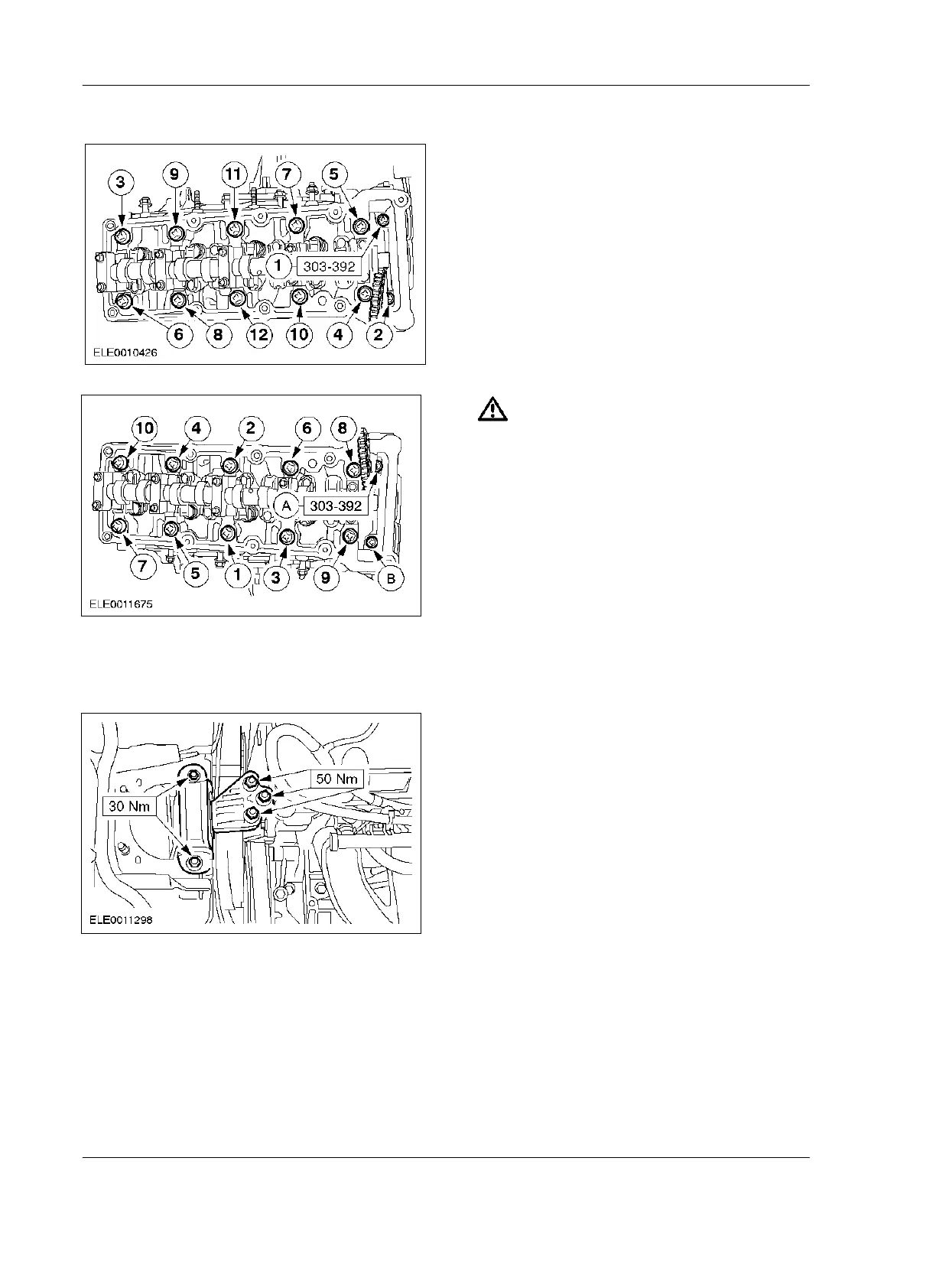

23. NOTE:
Loosen the bolts in the indicated
sequence.
Using the special tool, remove the cylinder
head.
• Remove and discard the gasket.
Installation
1.
CAUTION: Use new cylinder head
bolts.
NOTE:
Use a new gasket.
Using the special tool, tighten the bolts in
four stages.
• Stage 1: Tighten all M11 bolts in the
indicated numerical sequence to 40 Nm.
• Stage 2: Tighten all M8 bolts in the
indicated alphabetical order to 15 Nm.
• Stage 3: Tighten all M8 bolts in the
indicated alphabetical order to 45
degrees.
• Stage 4: Tighten all M11 bolts in the
indicated numerical sequence to 120
degrees.
2. Install the engine front mounting bracket.
3. Remove the trolley jack.
