303-01B-80 Engine — 1.6L / 1.3L RoCam 303-01B-80
REMOVAL (CONTINUED)
E6642 EN 07/2001 2002 Bantam

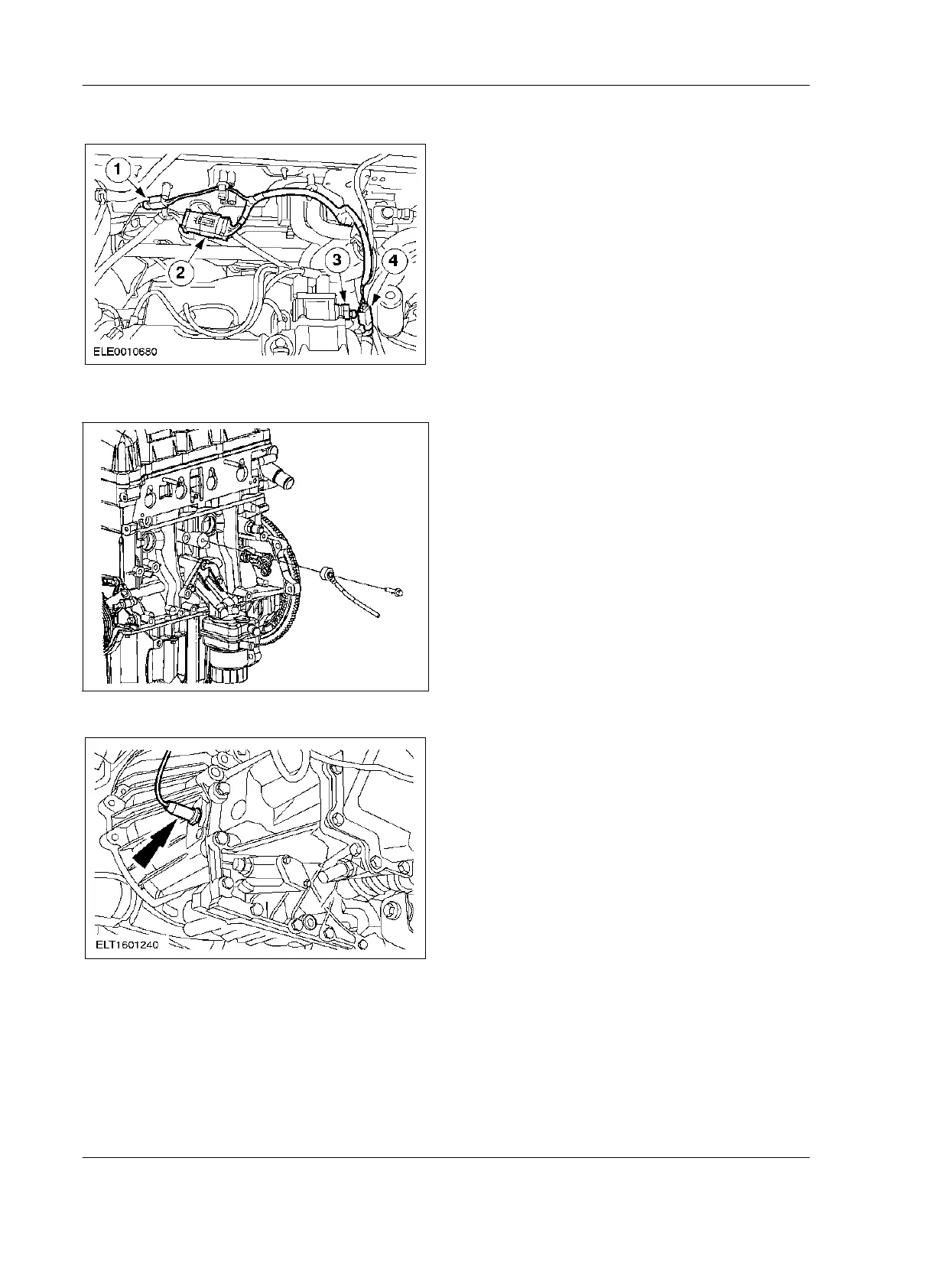

13. Disconnect the electrical connectors.
1. Disconnect the heated oxygen sensor
(HO2S).
2. Disconnect the powertrain control
module (PCM).
3. Disconnect the electronic ignition (EI)
coil.
4. Disconnect the vehicle speed (VSS)
sensor.
Vehicles with 1.3L engine.
14. Remove the knock sensor.
Note: Inlet manifold removed for clarity.
All vehicles.
15. Disconnect the reversing lamp switch
electrical connector.
To Next Page
