303-01B-81 Engine — 1.6L / 1.3L RoCam 303-01B-81
REMOVAL (CONTINUED)
E6642 EN 07/2001 2002 Bantam

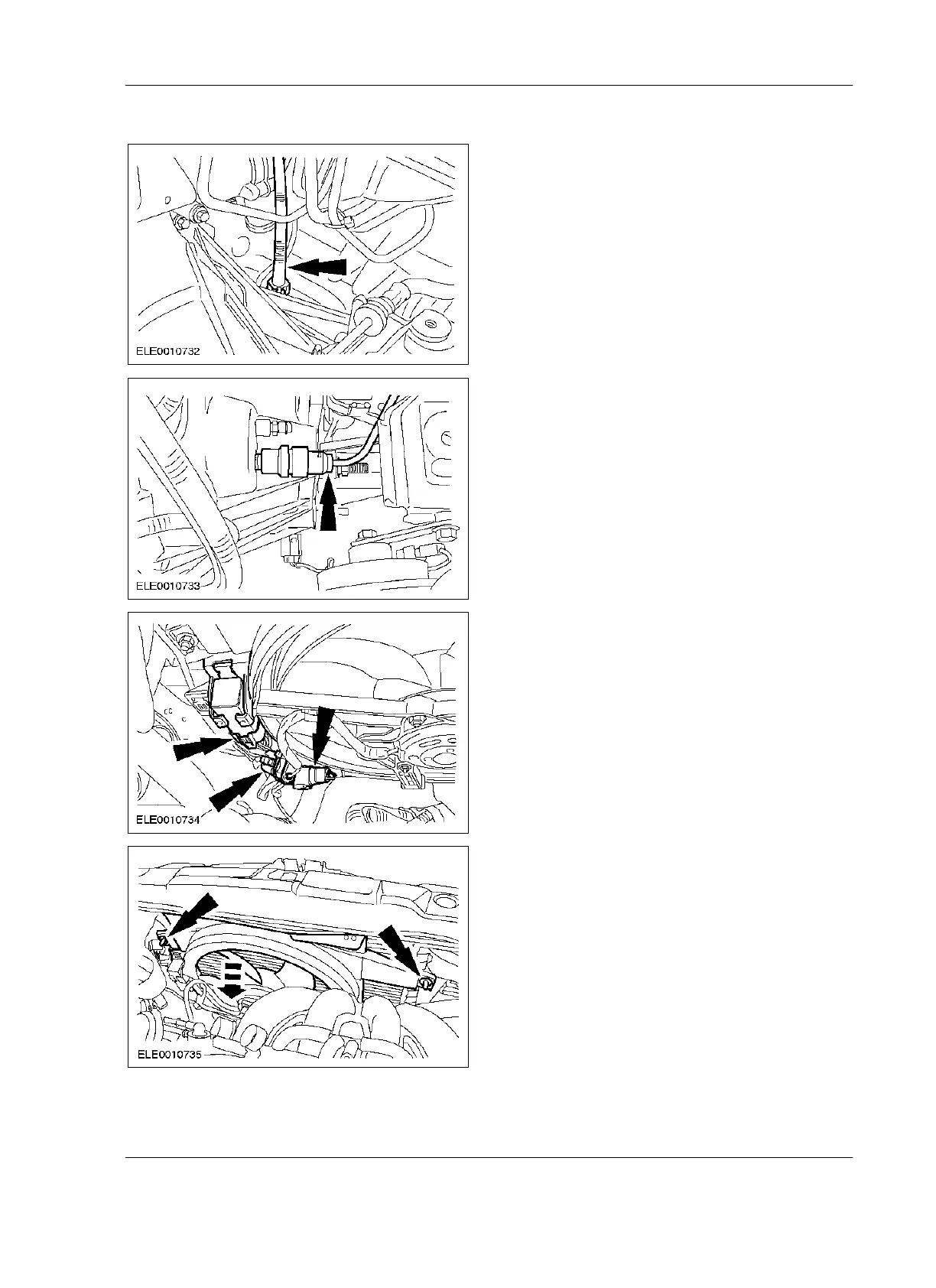

16. Disconnect the speedometer drive cable
from the transaxle.
17. Disconnect the clutch slave cylinder
hydraulic line.
18. Disconnect the cooling fan electrical
connectors.
19. Remove the cooling fan.
• First slide the fan upwards and then
remove it from underneath the vehicle.
To Next Page
