303-01B-82 Engine — 1.6L / 1.3L RoCam 303-01B-82
REMOVAL (CONTINUED)
E6642 EN 07/2001 2002 Bantam

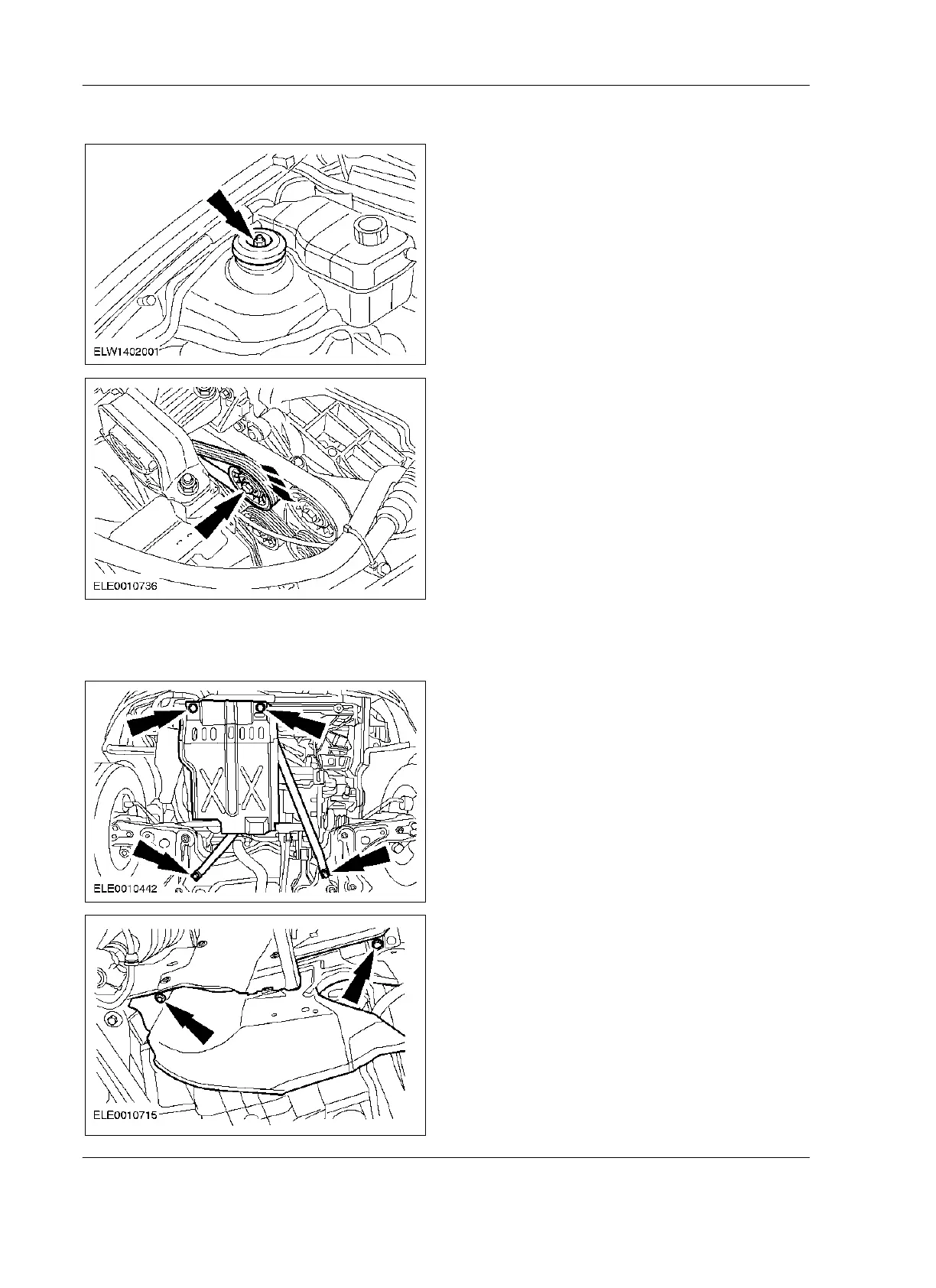

20. NOTE:
Use an Allen key to stop the piston
rod from turning.
Loosen the suspension strut retaining nut
five turns on both sides (right-hand side
shown).
21. Remove the accessory drive belt.
• Turn the belt tensioner clockwise and
slip the belt off the pulleys.
22. Raise and support the vehicle. For
additional information, refer to Section 100-
02.
23. Remove the engine undershield.
24. Remove the accessory drive belt cover.
To Next Page
