303-01B-110 Engine — 1.6L / 1.3L RoCam 303-01B-110
ASSEMBLY (CONTINUED)
E6645 EN 07/2001 2002 Bantam

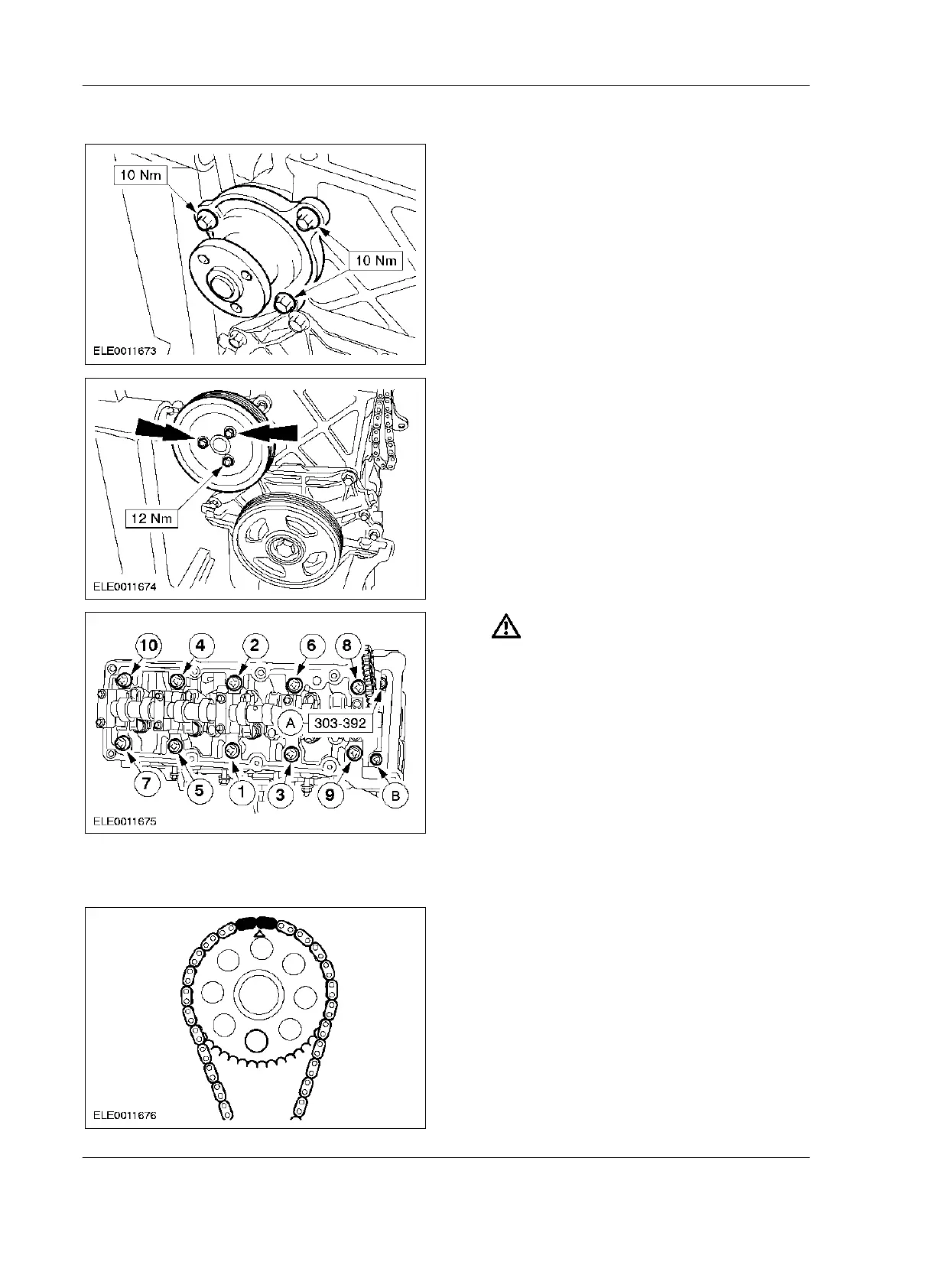

25. Install the water pump with a new gasket.
26. Install the water pump pulley.
27.
CAUTION: Use new cylinder head
bolts.
Install a new gasket and tighten the cylinder
head bolts in four stages.
• Stage 1: Tighten all M11 bolts in the
indicated numerical sequence to 40 Nm.
• Stage 2: Tighten all M8 bolts in the
indicated alphabetical order to 15 Nm.
• Stage 3: Tighten all M8 bolts in the
indicated alphabetical order to 45
degrees.
• Stage 4: Tighten all M11 bolts in the
indicated numerical sequence to 120
degrees.
28. NOTE:
The camshaft sprocket timing mark
and both colored links of the timing chain
must line up.
Install the timing chain on the camshaft
sprocket.
• The camshaft sprocket timing mark must
be at the 12 o'clock position with cylinder
No.1 at TDC.
