ASSEMBLY (CONTINUED)
E6645 EN 07/2001 2002 Bantam

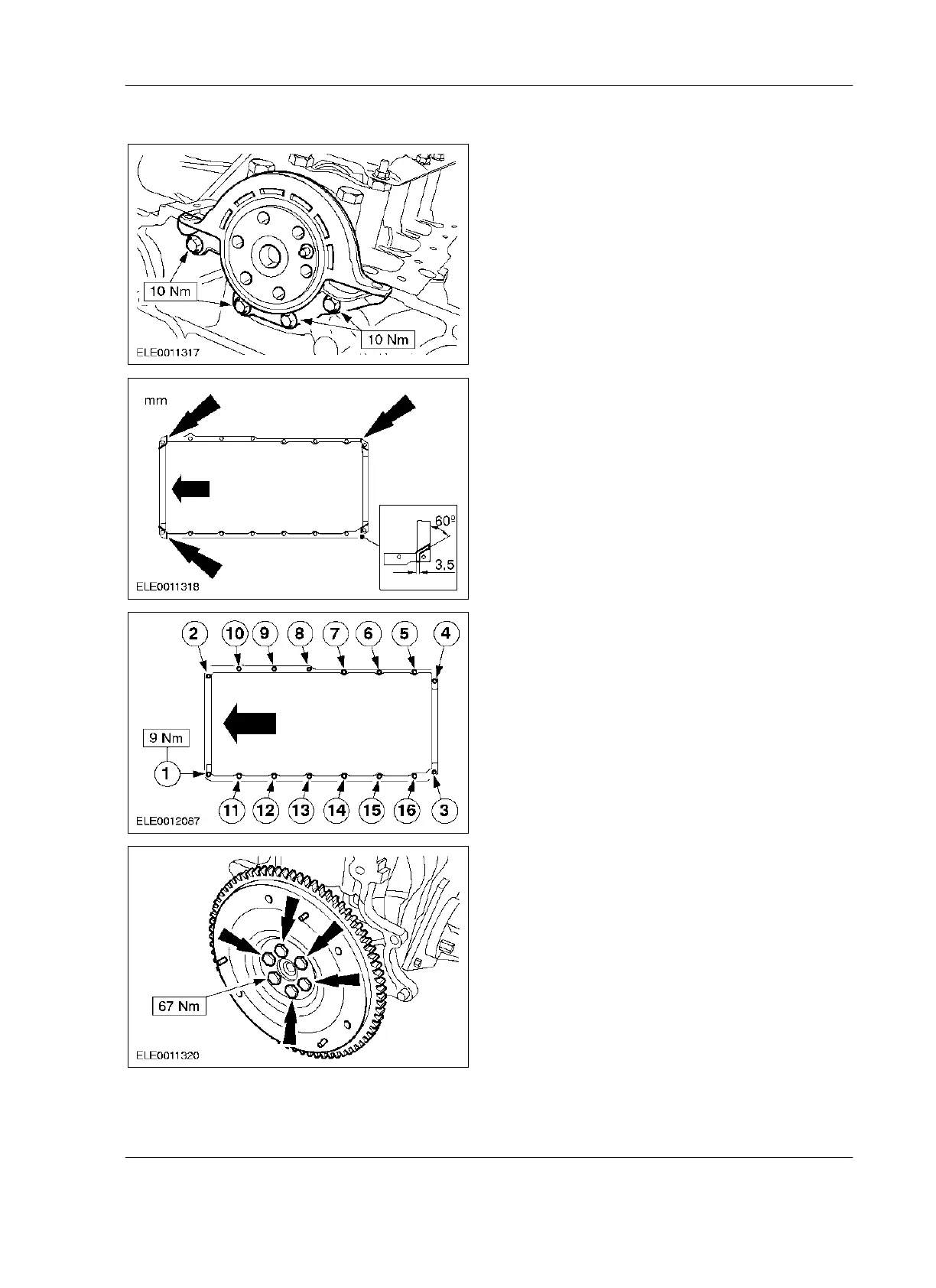

21. NOTE:
A special guide for assembly is
supplied with the new rear oil seal retainer.
NOTE:
The sealing lip must be free of oil.
NOTE:
Make sure that the dowel pins are
correctly located
Install a new rear oil seal retainer.
22. NOTE:
Apply a bead of sealer (LOCTITE
5910) 3 to 5 mm wide to the marked areas.
Apply sealer to the cylinder block joints.
• Wait no longer than 5 minutes to install
the oil pan gasket.
23. Stage II - Install the oil pan.
• Tighten the oil pan bolts in the indicated
sequence.
24. Install the flywheel.
