303-01D-10 Engine — 1.8L Diesel - Endura DE 303-01D-10
IN-VEHICLE REPAIR (CONTINUED)
E5881 EN 09/2001 2002 Bantam

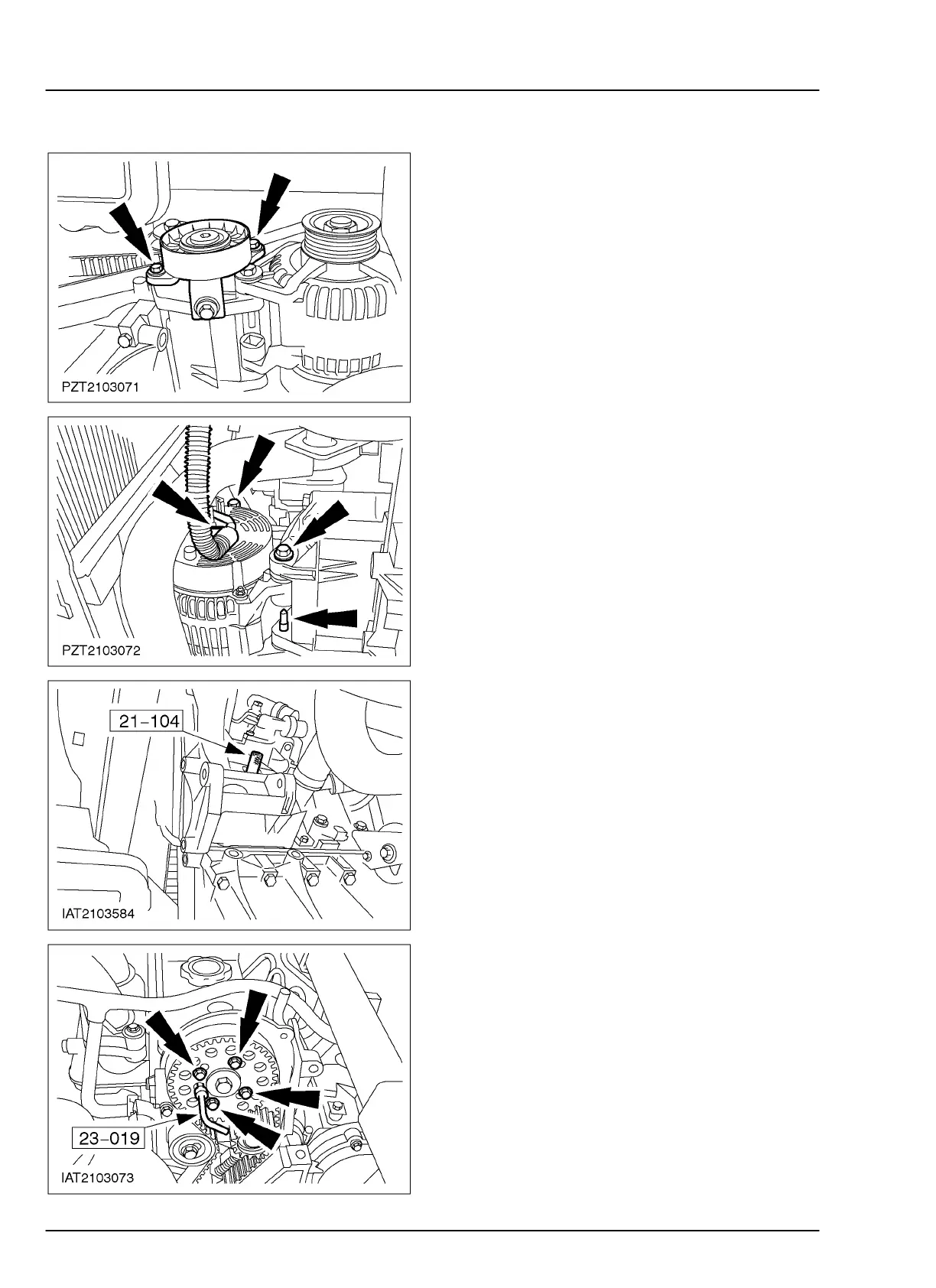

16. Remove the drive belt tensioner.
17. Disconnect the alternator and remove it.
18. Turn the crankshaft to the TDC position.
• Unscrew the blanking plug from the
cylinder block.
NOTE: The timing pin must be screwed in as far
as it will go.
• Screw in the timing pin.
• Carefully turn the crankshaft in the
normal direction of rotation of the engine
until it comes up against the timing pin.
19. Lower the vehicle.
