303-01D-26 Engine — 1.8L Diesel - Endura DE 303-01D-26
IN-VEHICLE REPAIR (CONTINUED)
E5882 EN 09/2001 2002 Bantam

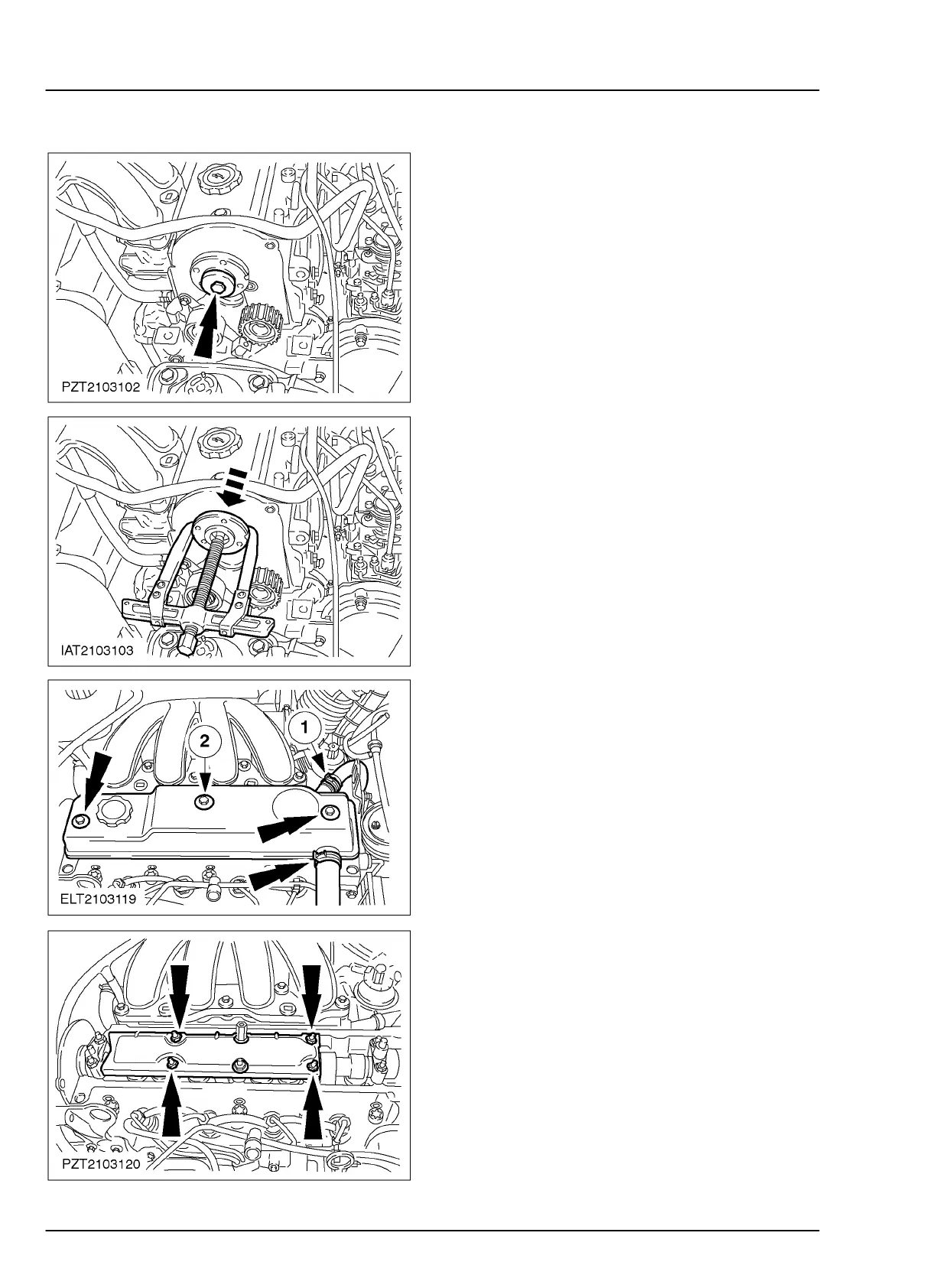

9. Remove the flange bolt of the camshaft
timing pulley.
10. Pull off the flange of the camshaft timing
pulley using a proprietary two-legged puller.
• Remove the Woodruff key.
11. Remove the cylinder head cover.
1. Detach the crankcase ventilation hoses.
2. Remove the bolts.
12. Remove the oil baffle.
To Next Page
