303-01D-38 Engine — 1.8L Diesel - Endura DE 303-01D-38
IN-VEHICLE REPAIR (CONTINUED)
E6447 EN 09/2001 2002 Bantam

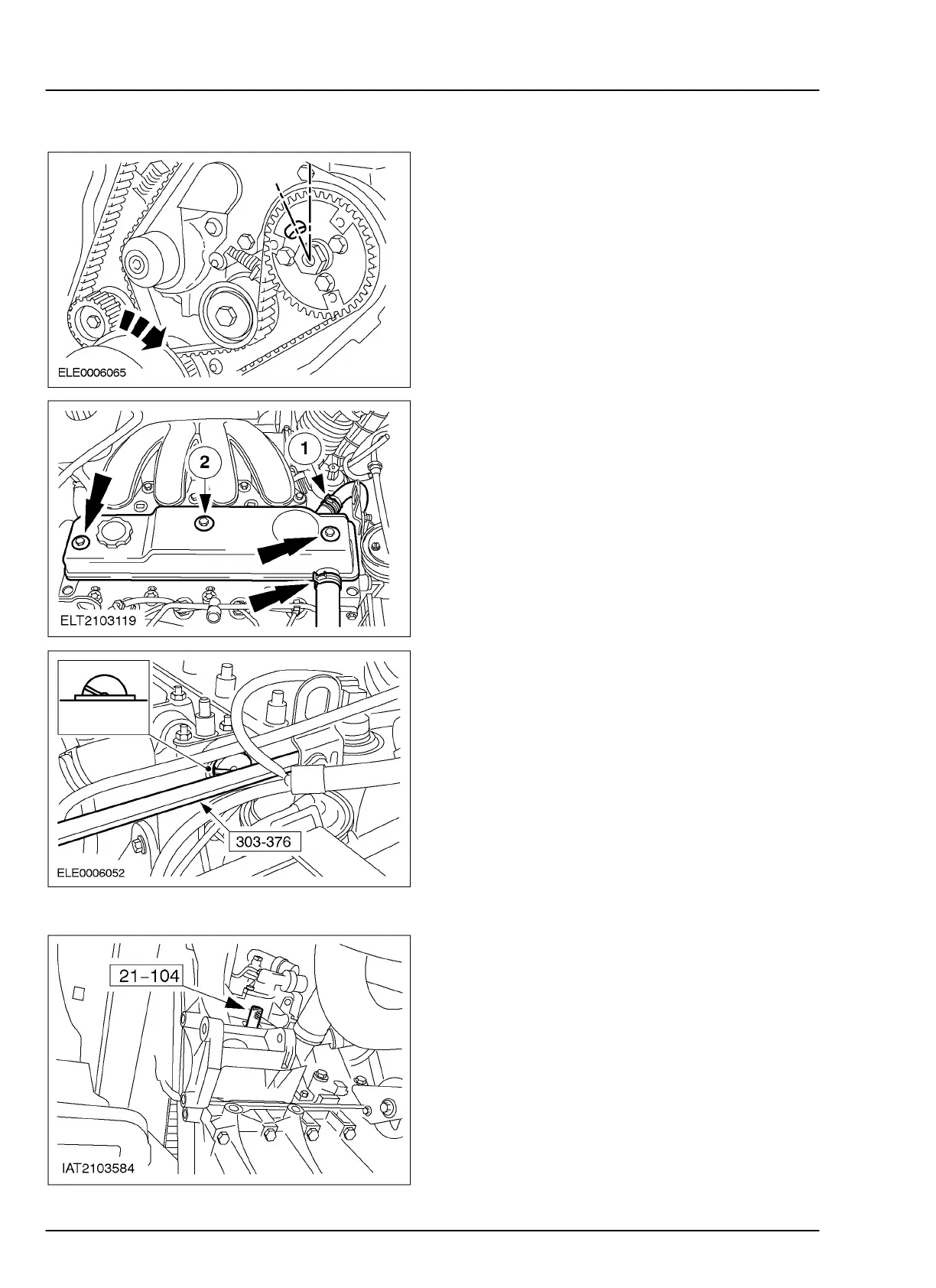

17. Preparing to remove the timing belt.
• Turn the crankshaft further in the normal
direction of rotation of the engine until the
slot in the injection pump timing pulley is
at 11 o'clock.
18. Remove the cylinder head cover. Remove
the gasket.
1. Detach the PCV hoses.
2. Unscrew the bolts.
19. Turn the crankshaft approximately to TDC.
20. Raise the vehicle.
21. Turn the crankshaft to TDC.
• Unscrew the blanking plug from the
cylinder block.
NOTE: The timing pin must be screwed in as far
as its stop.
• Screw in the timing pin.
• Carefully turn the crankshaft in the
normal direction of rotation until it rests
against the timing pin.
22. Lower the vehicle.
