303-01D-64 Engine — 1.8L Diesel - Endura DE 303-01D-64
IN-VEHICLE REPAIR (CONTINUED)
E5883 EN 09/2001 2002 Bantam

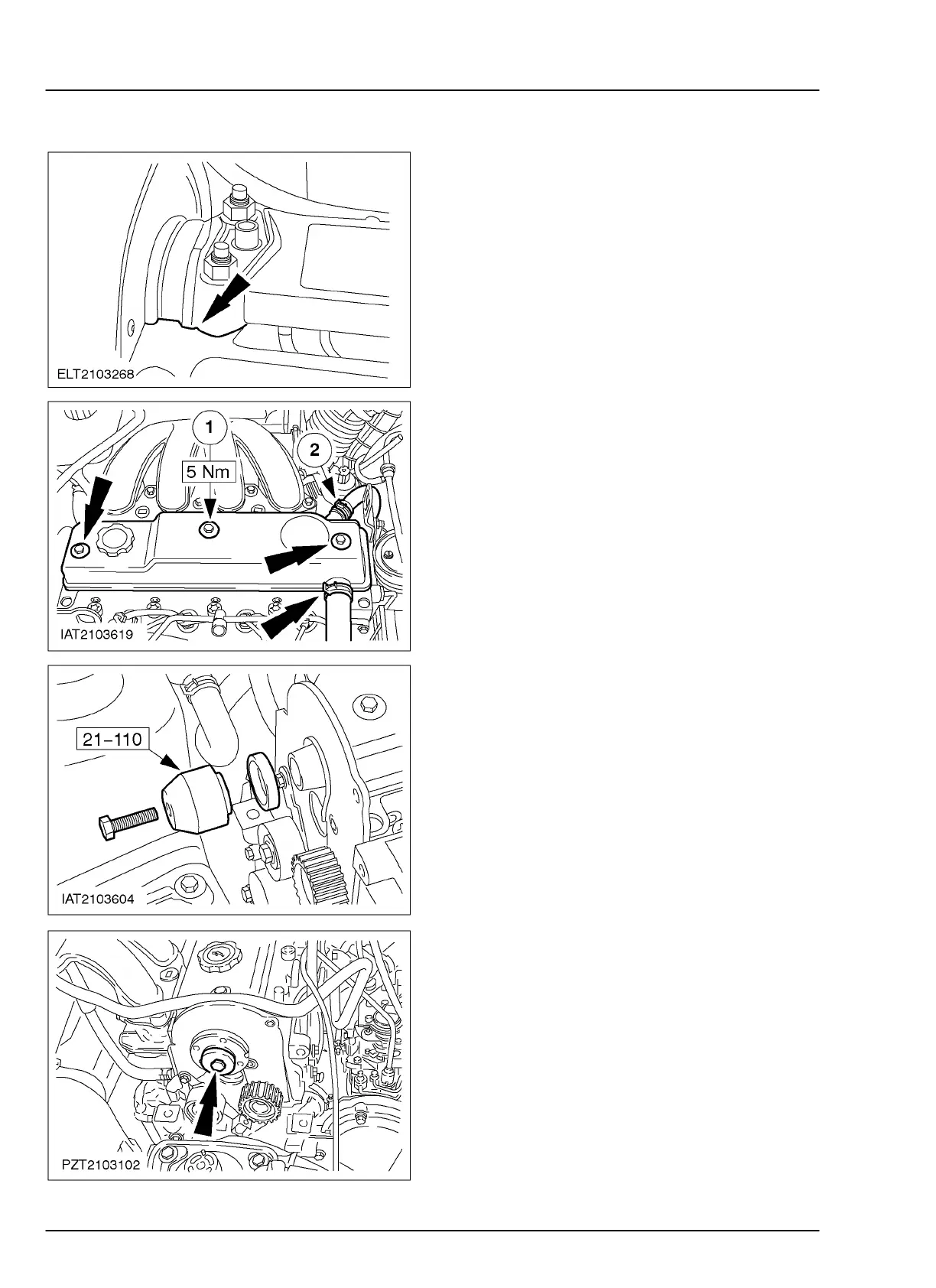

8. Seal the parting line between the bearing
cap and the cylinder head on both sides
with a thin bead of sealer (SPM-4G9112-
F/G).
9. NOTE: Clean the cylinder head cover gasket
and check it for damage. Only renew it if it is
damaged. The gasket can be reused several
times if it is in good condition.
NOTE: Before fitting the gasket, coat it lightly
with engine oil.
Fit the cylinder head cover.
1. Tighten the bolts.
2. Attach the crankcase ventilation hoses.
10. NOTE: Coat the running surface and the
sealing lip of the oil seal with engine oil. The
text on the oil seal faces outwards during
installation.
Fit the camshaft oil seal using the special
tool and an M8 bolt.
11. Fit the flange of the camshaft timing pulley.
• Insert the Woodruff key.
• Draw on the flange with the bolt.
