303-01D-104 Engine — 1.8L Diesel - Endura DE 303-01D-104
DISASSEMBLY (CONTINUED)
E6007 EN 09/2001 2002 Bantam

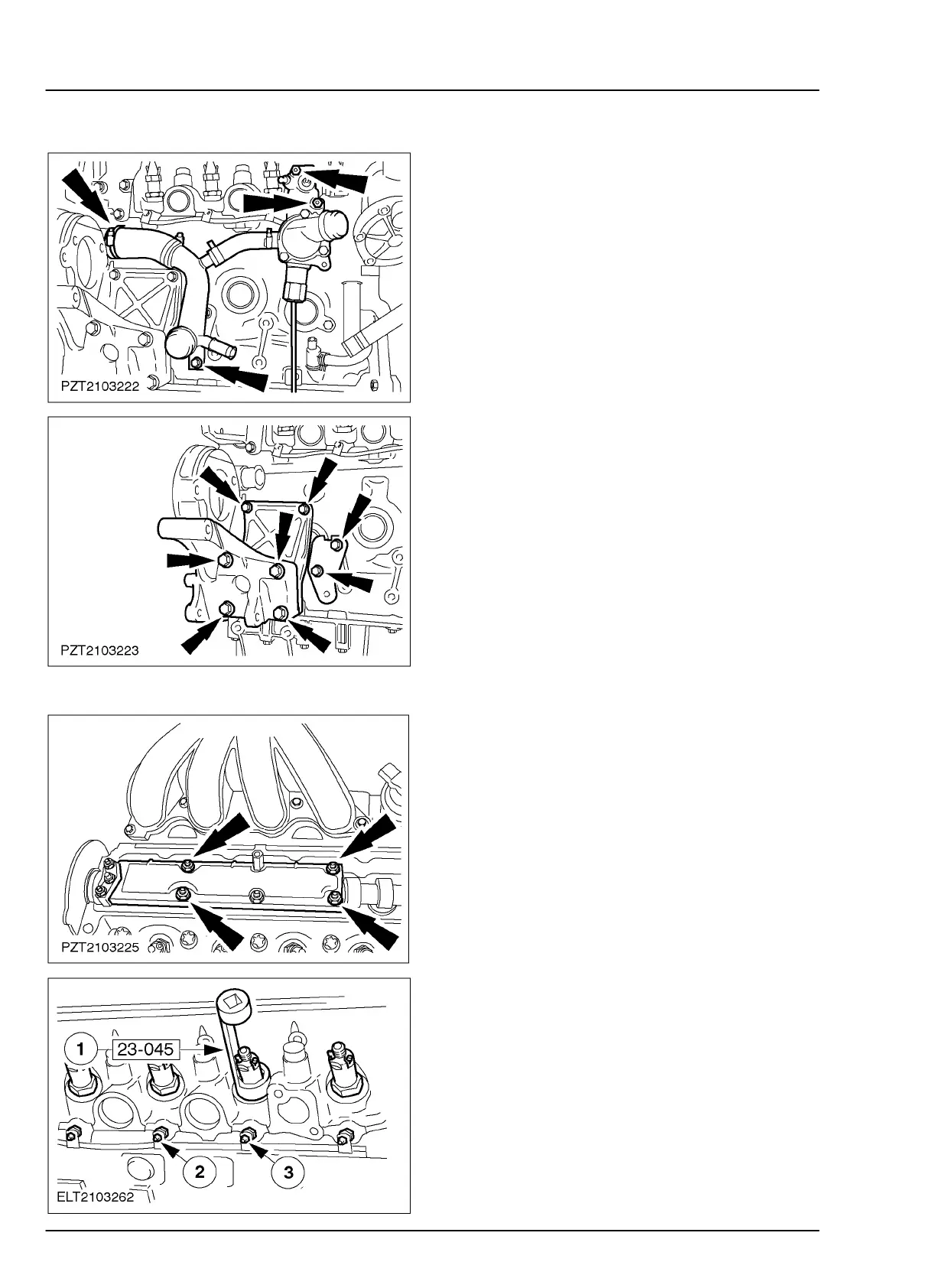

26. Remove the thermostat housing, coolant
hose and coolant pipe.
27. Remove the alternator bracket.
28. Remove the coolant pipe bracket.
29. Remove the oil baffle.
30. Remove injectors and heat shields.
Remove the glow plugs.
1. Injectors
2. Glow plug wiring
3. Glow plugs
