303-01D-105 Engine — 1.8L Diesel - Endura DE 303-01D-105
DISASSEMBLY (CONTINUED)
E6007 EN 09/2001 2002 Bantam

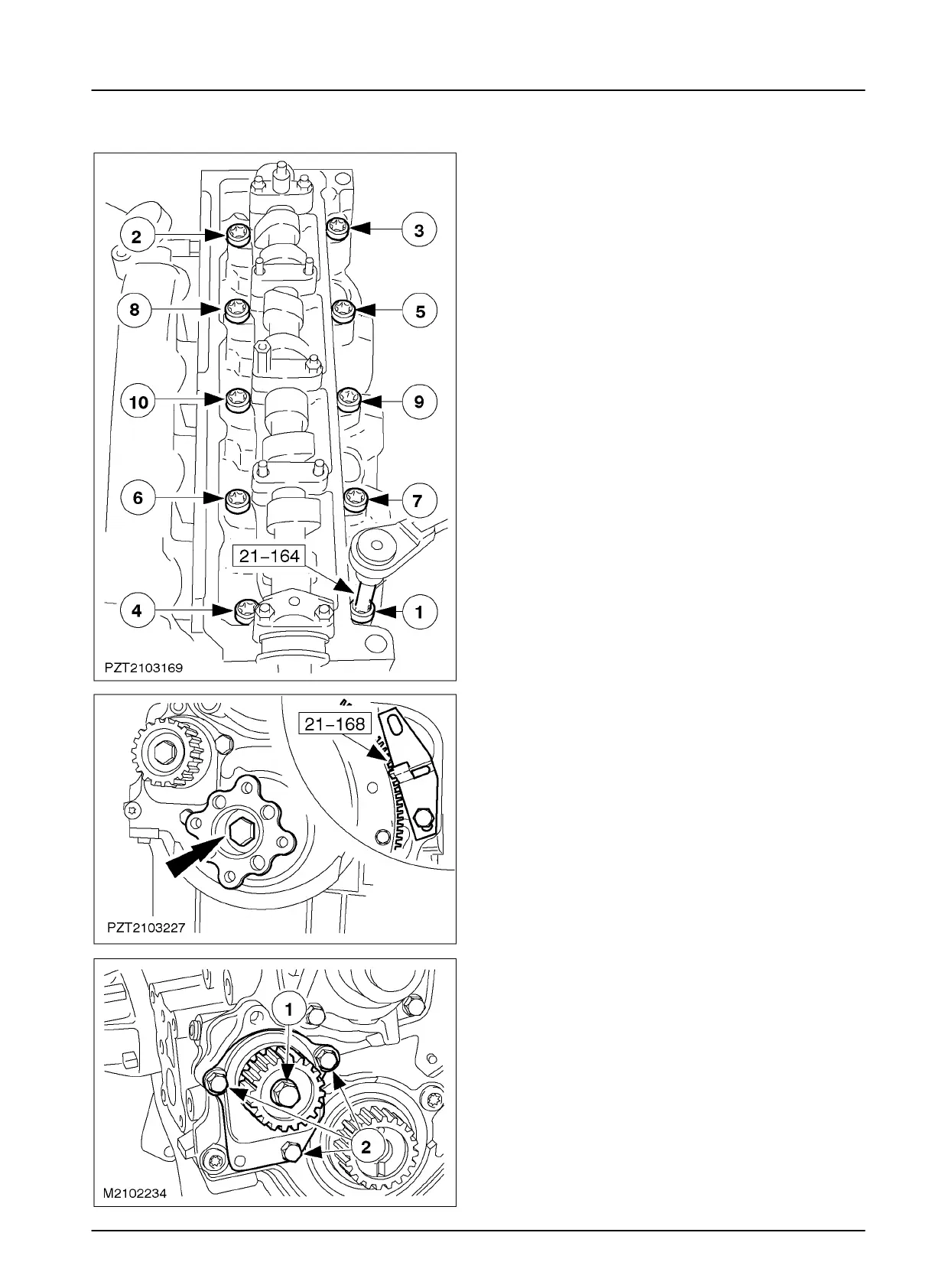

31. NOTE: Loosening sequence
Remove the cylinder head.
• Take off the cylinder head and put it
down on wooden blocks.
• Remove the seal.
32. Remove the flange of the crankshaft front
timing belt pulley.
33. Remove the auxiliary shaft timing belt
pulley and oil seal housing.
NOTE: Immobilise the timing belt pulley with the
old timing belt.
1. Bolt of the auxiliary shaft timing belt
pulley
2. Bolts of the auxiliary shaft oil seal
housing
