303-01D-115 Engine — 1.8L Diesel - Endura DE 303-01D-115
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES (CONTINUED)
E6008 EN 09/2001 2002 Bantam
Assembly
1. Preparatory measures.
• Check all parts for wear.
• Thoroughly clean all reusable parts.
2. Renew the studs for the inlet and exhaust
manifold.
3. Grind in the valves.
1. Valve collets
2. Valve spring retainer
3. Valve spring
4. Valve stem seal
5. Cylinder Head
6. Valve

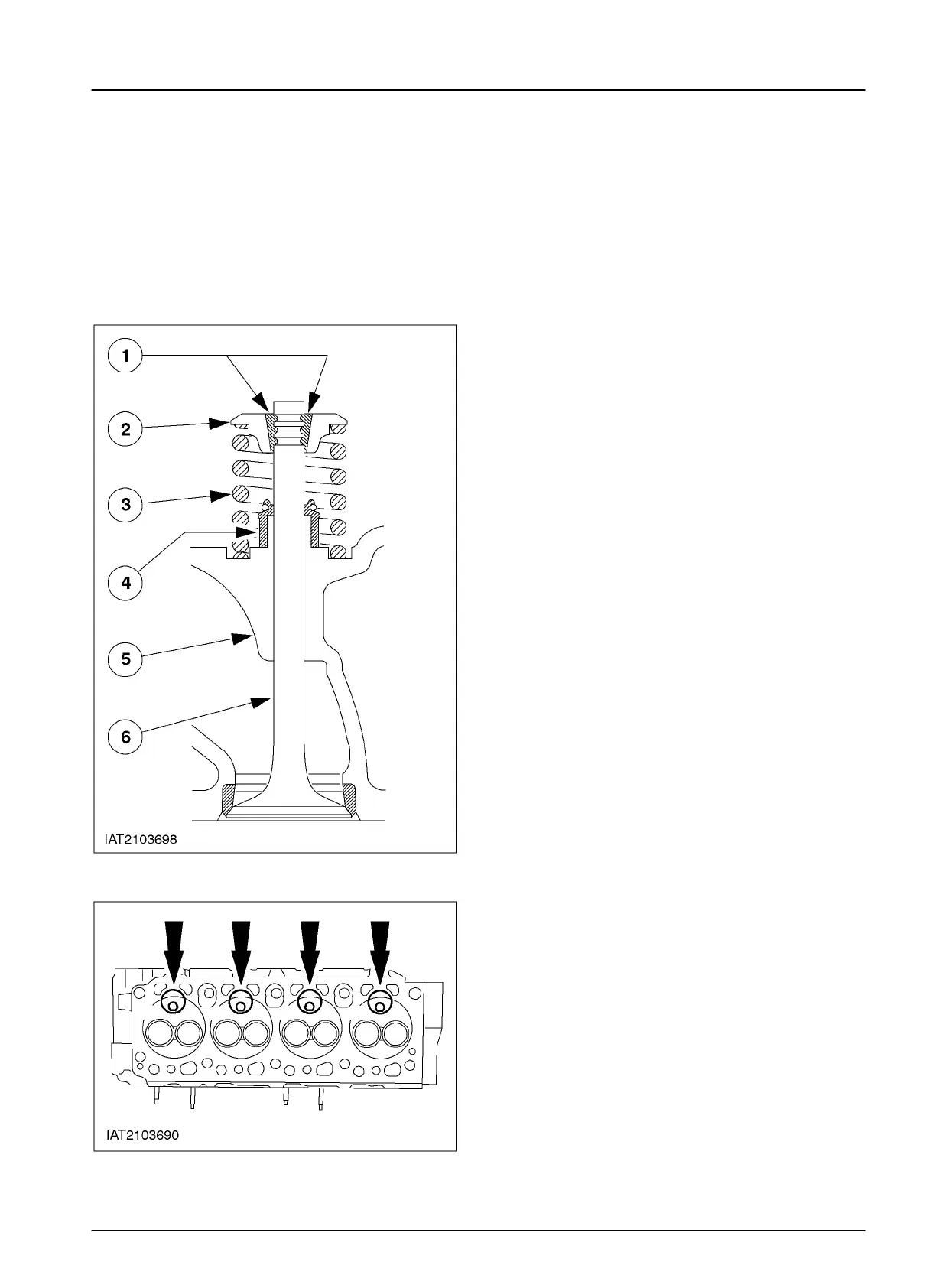

4. Sectional view of valve.
5. Press the swirl chambers home.
