303-01D-118 Engine — 1.8L Diesel - Endura DE 303-01D-118
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES (CONTINUED)
E6008 EN 09/2001 2002 Bantam

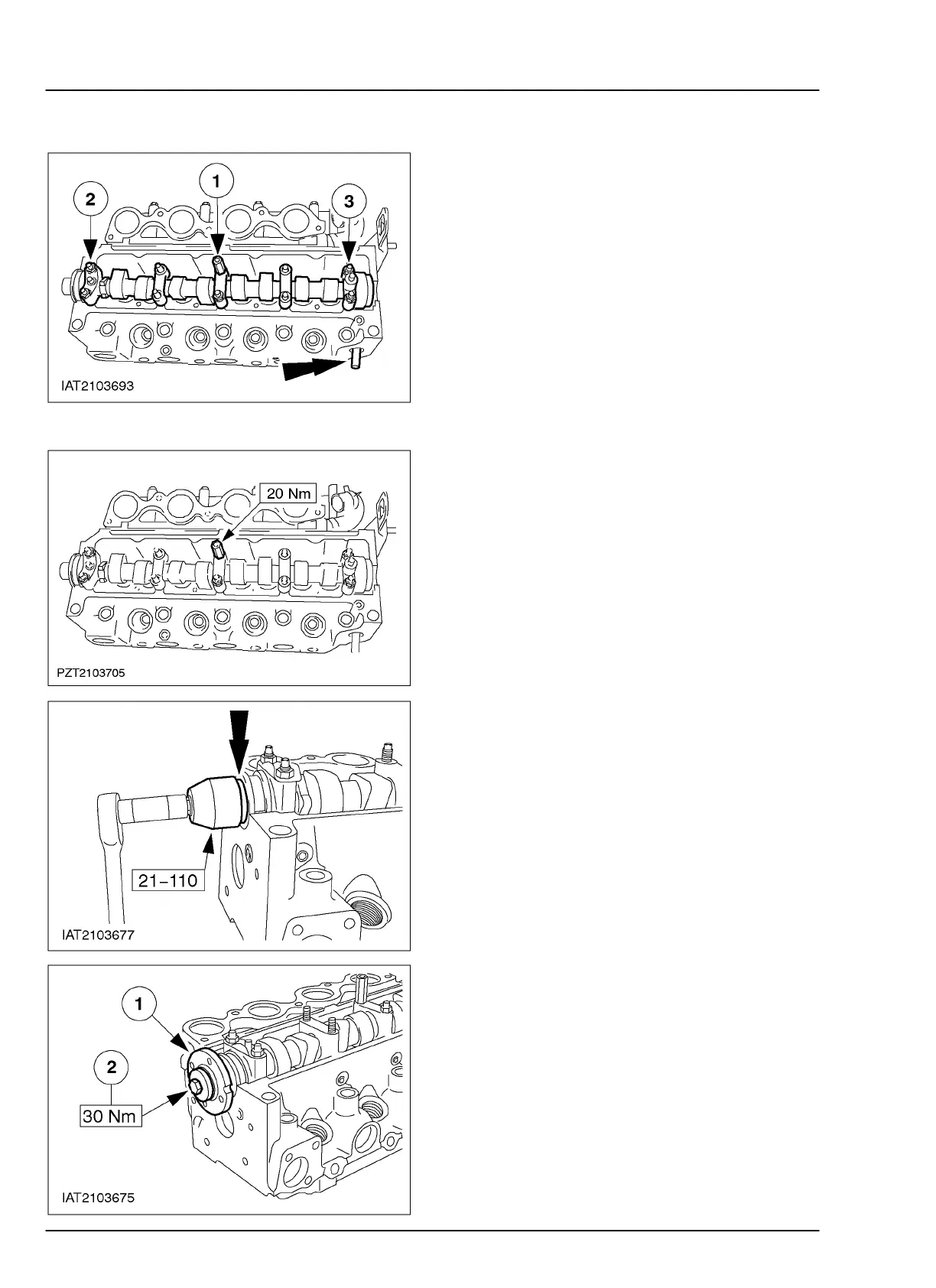

15. NOTE: The arrows on the camshaft bearing
caps point towards the front.
NOTE: The camshaft bearing caps must lie flat.
Install the camshaft.
• Place camshaft bearing caps nos. 1, 3
and 5 in installation position and screw on
the nuts.
NOTE: Tightening sequence.
• Tighten the nuts.
16. Fit the vacuum pump plunger.
17. NOTE: Tightening sequence.
Tighten the nuts of the camshaft bearing
caps.
18. NOTE: Coat the camshaft taper and the
sealing lip of the new oil seal with engine oil.
Fit the camshaft oil seal.
19. NOTE: Hold steady with
Special Tool 15-030A.
Fit the flange of the camshaft timing belt
pulley. Insert the Woodruff key.
1. Fit the flange.
2. Draw the flange on with the bolt and
tighten the bolt.
