DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES (CONTINUED)
E6008 EN 09/2001 2002 Bantam

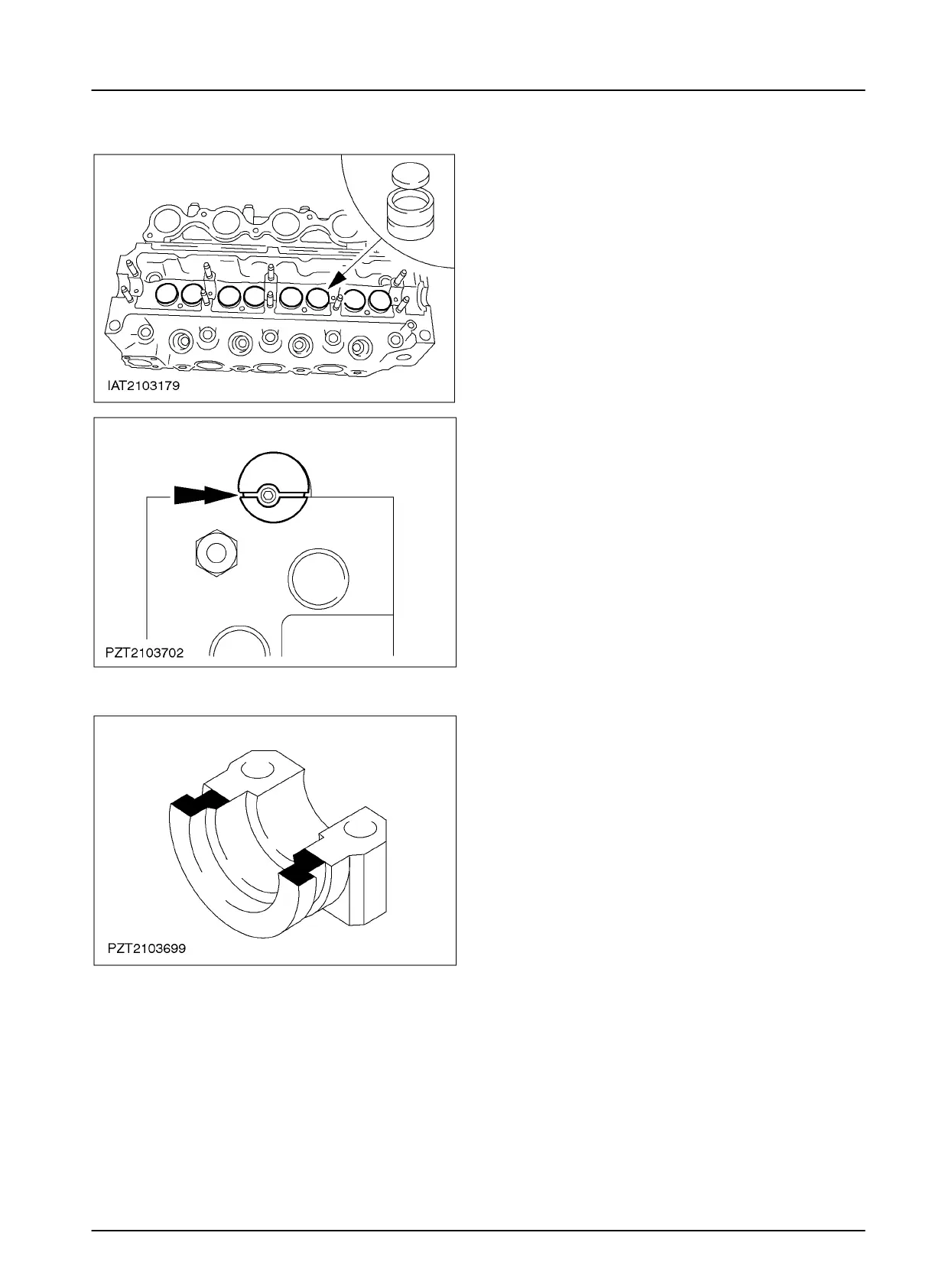

10. NOTE: The lettering on the adjusting shims
faces downwards.
NOTE: Installation order.
Install the valve tappets.
• Coat the valve tappets and adjusting
shims with engine oil and fit them.
11. Lay the camshaft bearing shell lower halves
in place and coat them with engine oil.
• Fit the camshaft and turn it until the
groove in the eccentric on the camshaft is
parallel with the upper edge of the cylinder
head (with the larger semi-circle at the
top).
12. Align the camshaft.
13.
Put the camshaft bearing upper shell halves
in place and coat them with engine oil.
14. Apply sealer (SPM-4G-9112-F/G) to
bearing cap no. 1 in the areas indicated.
