303-01D-125 Engine — 1.8L Diesel - Endura DE 303-01D-125
ASSEMBLY (CONTINUED)
E6005 EN 09/2001 2002 Bantam

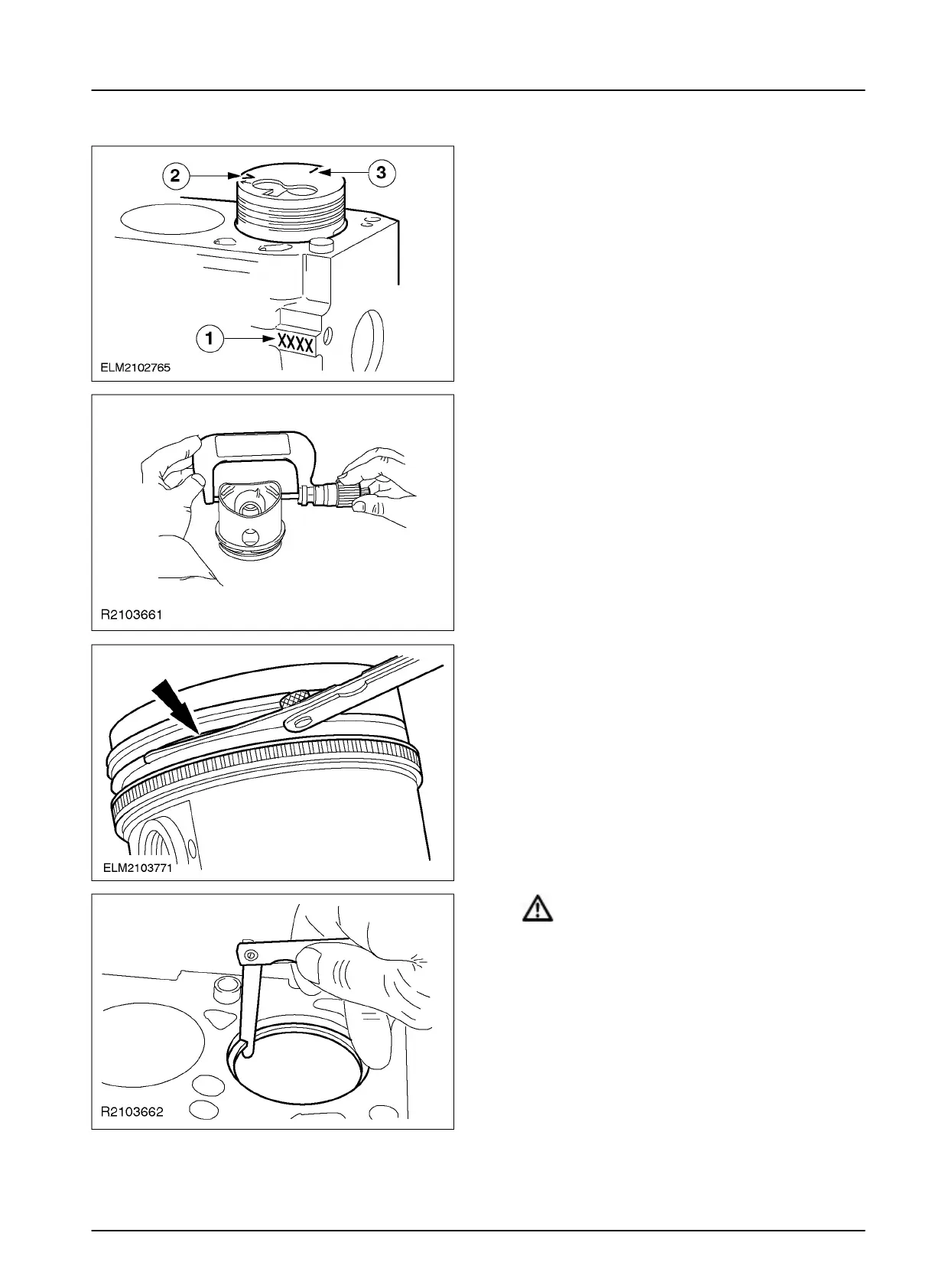

11. Classifications.
1. Cylinder bore classification
2. Piston diameter classification
3. The piston weight classes are marked
with '+' and '-'.
12. NOTE: Piston classification, if a piston has
to be renewed.
Measure the piston diameter.
13. NOTE: Measure the piston ring clearance
with the piston ring protruding.
Measure the piston ring clearances.
• The maximum clearance of the upper
compression ring is 0,09 - 0,12 mm.
• The maximum clearance of the 2nd
compression ring is 0,05 - 0,08 mm.
14.
CAUTION: Do not mix up the piston
rings. Re-fit the piston rings in the
same position and location.
Measure the piston ring gaps.
• The values given in the General
Specifications refer to a reference gauge
ring used in production. When measured
in the cylinder, the values can be
exceeded by 0,15 mm.
