303-01D-127 Engine — 1.8L Diesel - Endura DE 303-01D-127
ASSEMBLY (CONTINUED)
E6005 EN 09/2001 2002 Bantam

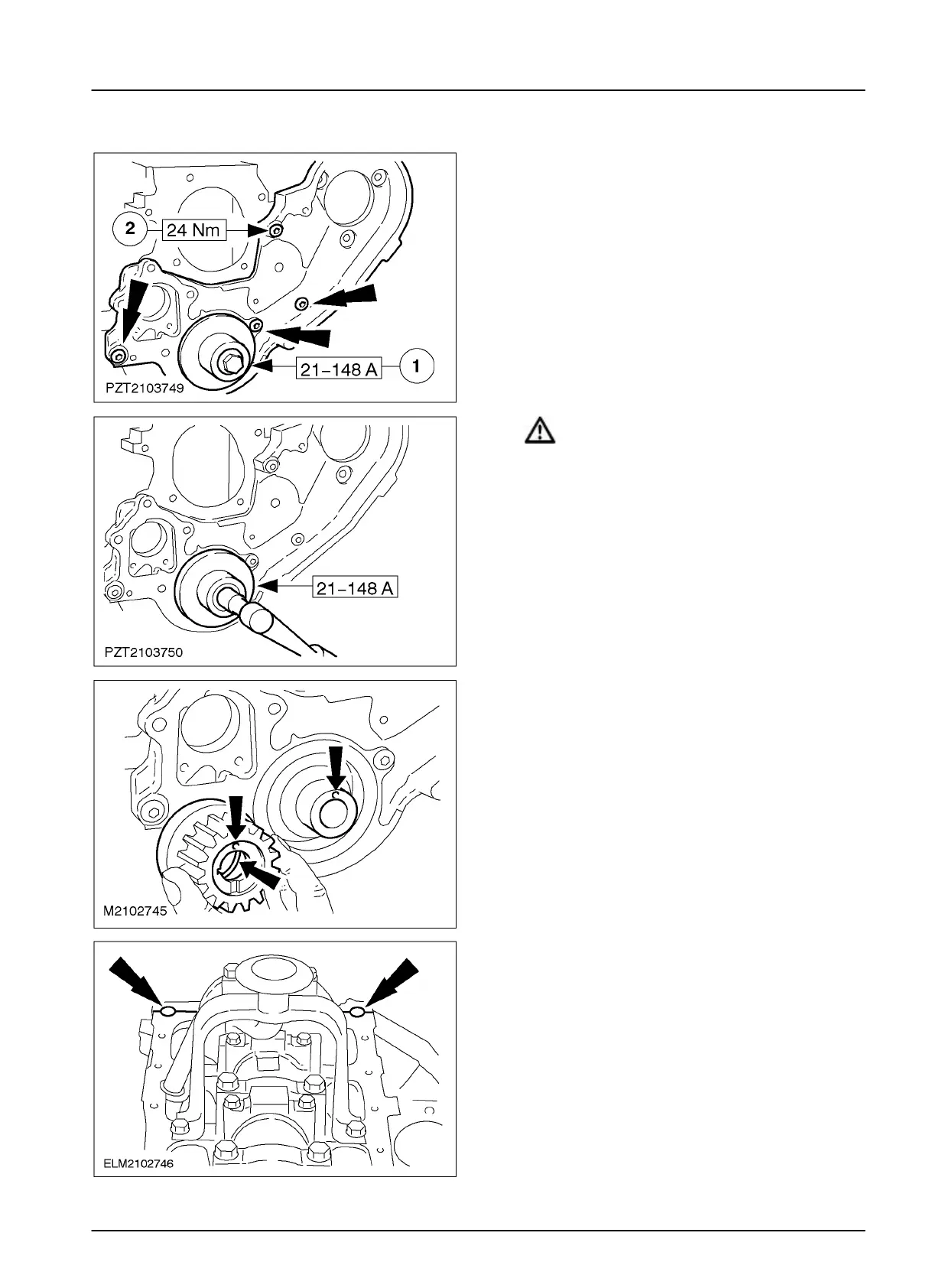

18. NOTE: The front plate mating face must be
flush with the lower edge of the cylinder block
(tolerance ± 0,1mm).
Fit the front plate with a new gasket and
new oil way seals.
1. Center the front plate using the aligner.
2. Fit the front plate.
19. CAUTION: The steps must be carried
out immediately after each other to
prevent the oil seal from contracting.
Do not remove the support ring from
the oil seal until immediately before
installation.
NOTE: Install the oil seal dry.
Draw in the crankshaft front oil seal.
• Draw in the oil seal with the installer and
the bolt of the crankshaft timing belt
pulley.
20. Install the crankshaft timing belt pulley.
NOTE: Make sure the O-ring in the timing belt
pulley is in perfect condition.
• Lubricate the O-ring and the end of the
crankshaft with engine oil.
NOTE: The guide pin in the end of the
crankshaft and the hole in the timing belt pulley
must line up.
• Carefully slide on the timing belt pulley
as far as the stop.
21. NOTE: The sump bolts must be tightened
within 20 minutes of applying the sealer.
Apply sealer (SPM-4G-9112-F/G) to the
cylinder block mating face intersections.
To Next Page
