303-01D-140 Engine — 1.8L Diesel - Endura DE 303-01D-140
ASSEMBLY (CONTINUED)
E6005 EN 09/2001 2002 Bantam
Engines with automatic timing belt tensioner

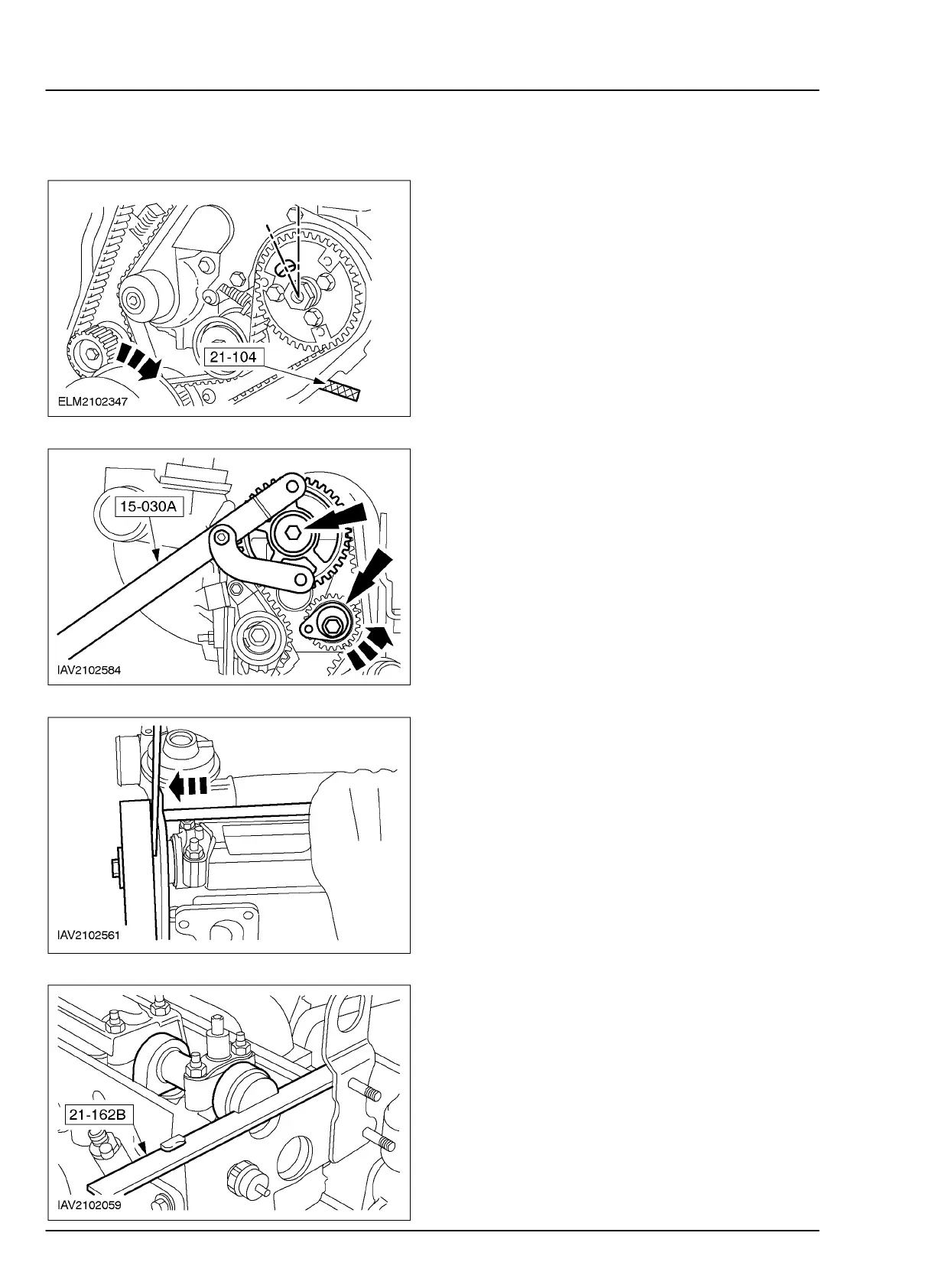

64. Preparations for tensioning the timing belts.
• Turn the crankshaft further in the normal
direction of rotation of the engine until the
slot in the injection pump timing belt pulley
is at 11 o'clock.
• Screw in the timing pin.
• Carefully turn the crankshaft in the
normal direction of rotation of the engine
until it comes up against the timing pin.
• Insert Special Tool 23-029.
Engines with automatic timing belt tensioner
65. NOTE: Hold the camshaft timing belt pulley
steady.
Loosen the bolt of the camshaft timing belt
pulley and slacken the camshaft timing belt.
Engines with automatic timing belt tensioner
66. NOTE: Position a screwdriver between the
camshaft timing belt pulley and the timing belt
rear cover.
Release the camshaft timing belt pulley.
• Release the camshaft timing belt pulley
from its conical seat by tapping on it lightly
with a light metal drift.
• Slacken the bolt of the adjusting cam.
Engines with automatic timing belt tensioner
67. NOTE: If necessary, turn the camshaft using
water pump pliers until the timing tool can be
inserted.
Insert the special tool in the camshaft.
To Next Page
