303-01D-157 Engine — 1.8L Diesel - Endura DE 303-01D-157
INSTALLATION (CONTINUED)
E5915 EN 09/2001 2002 Bantam

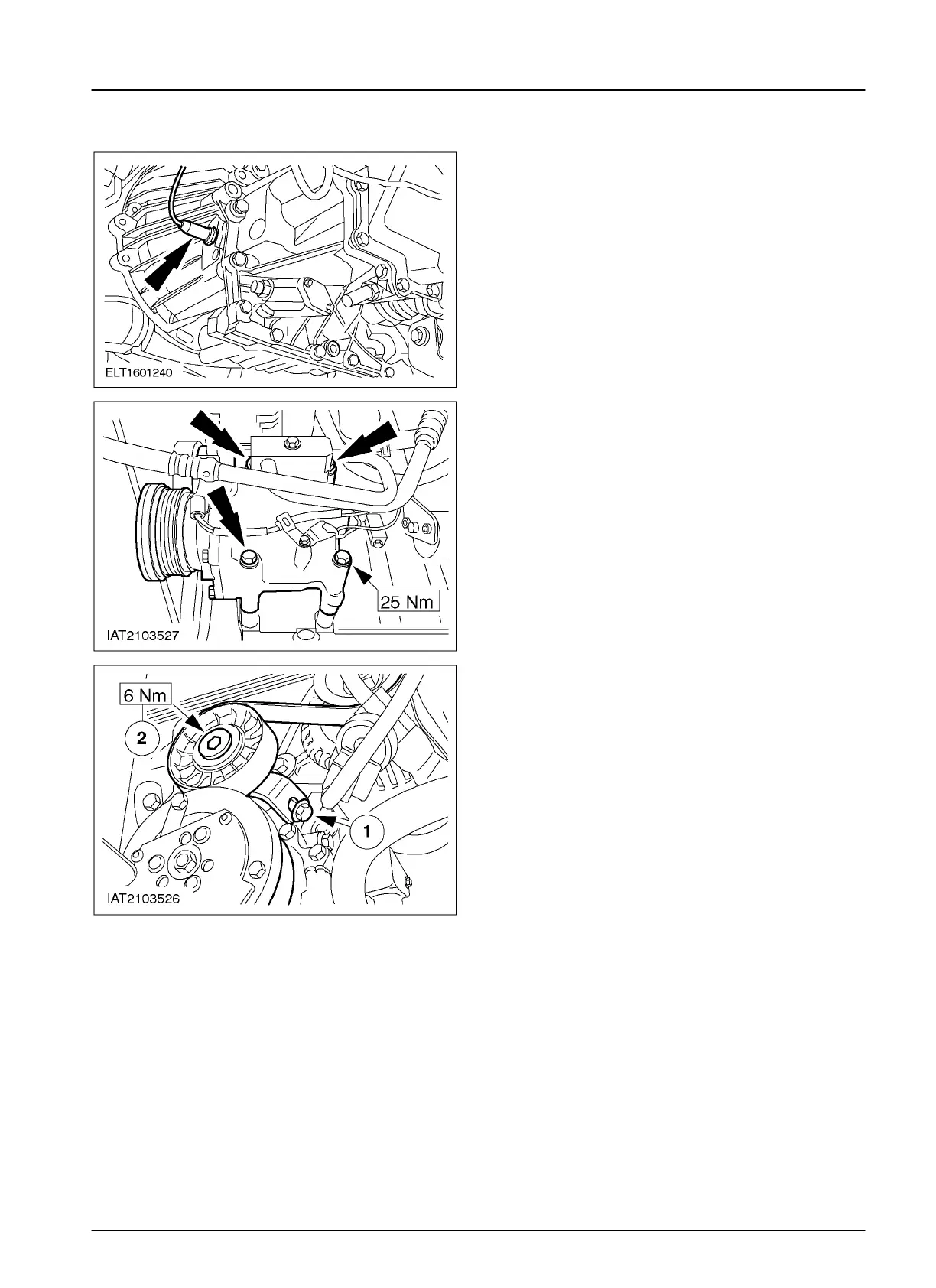

36. Connect the plug of the reversing light
switch (where fitted).
37. Fit the A/C compressor.
38. Fit the drive belt.
1. Lay the drive belt in place and tension it
via the bolt of the belt tensioner. For
additional information,
refer to Section 303-05.
2. Tighten the hexagon socket head bolt of
the tensioning pulley.
39. Locate the radiator and the fan plate with
the fan in position on the radiator
crossmember.
To Next Page
