303-01D-158 Engine — 1.8L Diesel - Endura DE 303-01D-158
INSTALLATION (CONTINUED)
E5915 EN 09/2001 2002 Bantam

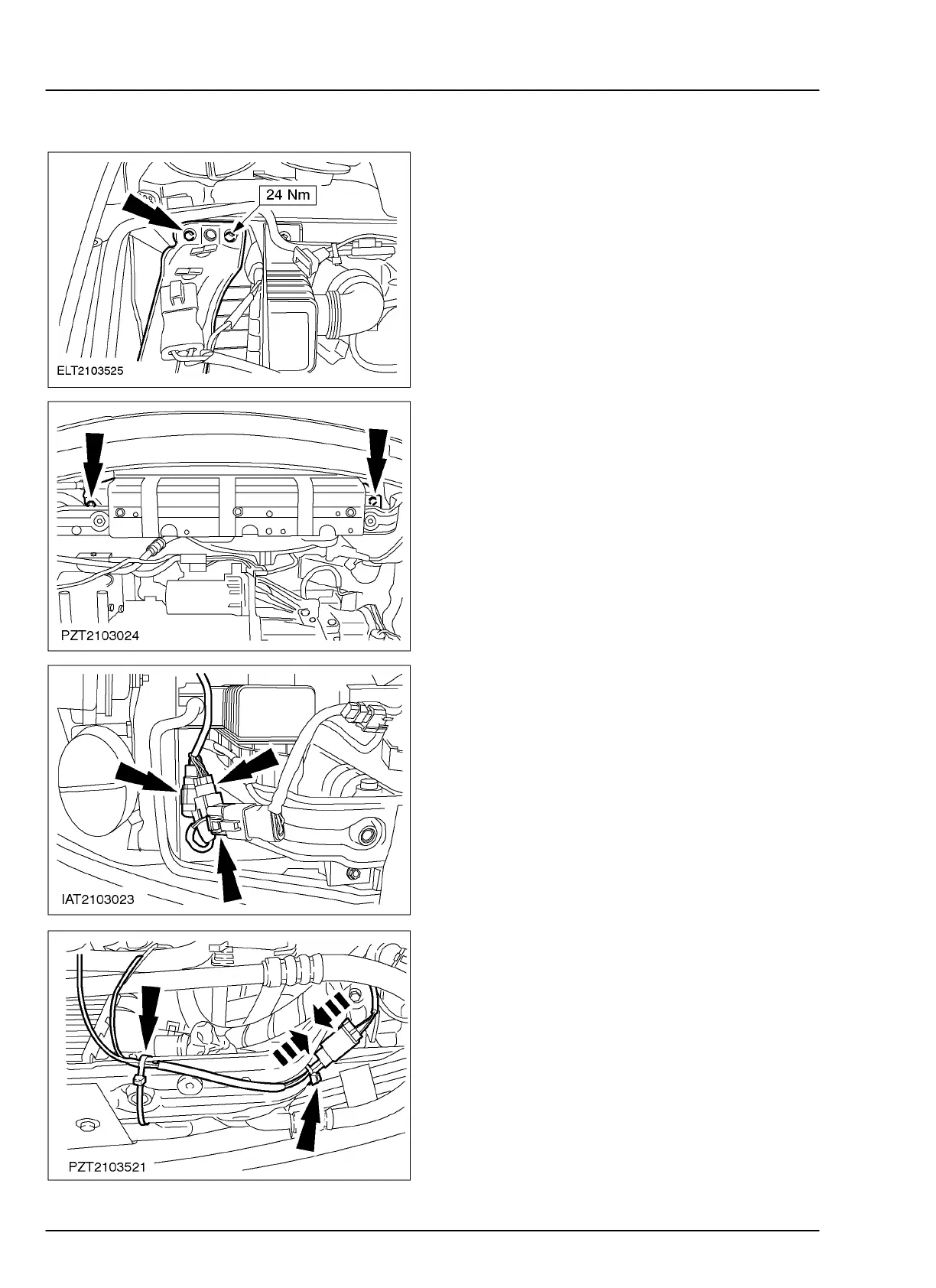

40. NOTE: The radiator is a push fit at the top.
NOTE: Secure the ground lead on the left-hand
side using the radiator bolt.
Install the radiator (two bolts on each side;
right-hand side shown).
41. NOTE: The air conditioning condenser is a
push fit at the top.
Align the air conditioning condenser and
screw it in place at the bottom.
42. Connect the three plugs at the bottom of
the radiator on the left-hand side.
43. Connect the plug of the air conditioning
wiring.
• Secure the wiring to the radiator
crossmember with cable ties.
