303-01D-160 Engine — 1.8L Diesel - Endura DE 303-01D-160
INSTALLATION (CONTINUED)
E5915 EN 09/2001 2002 Bantam

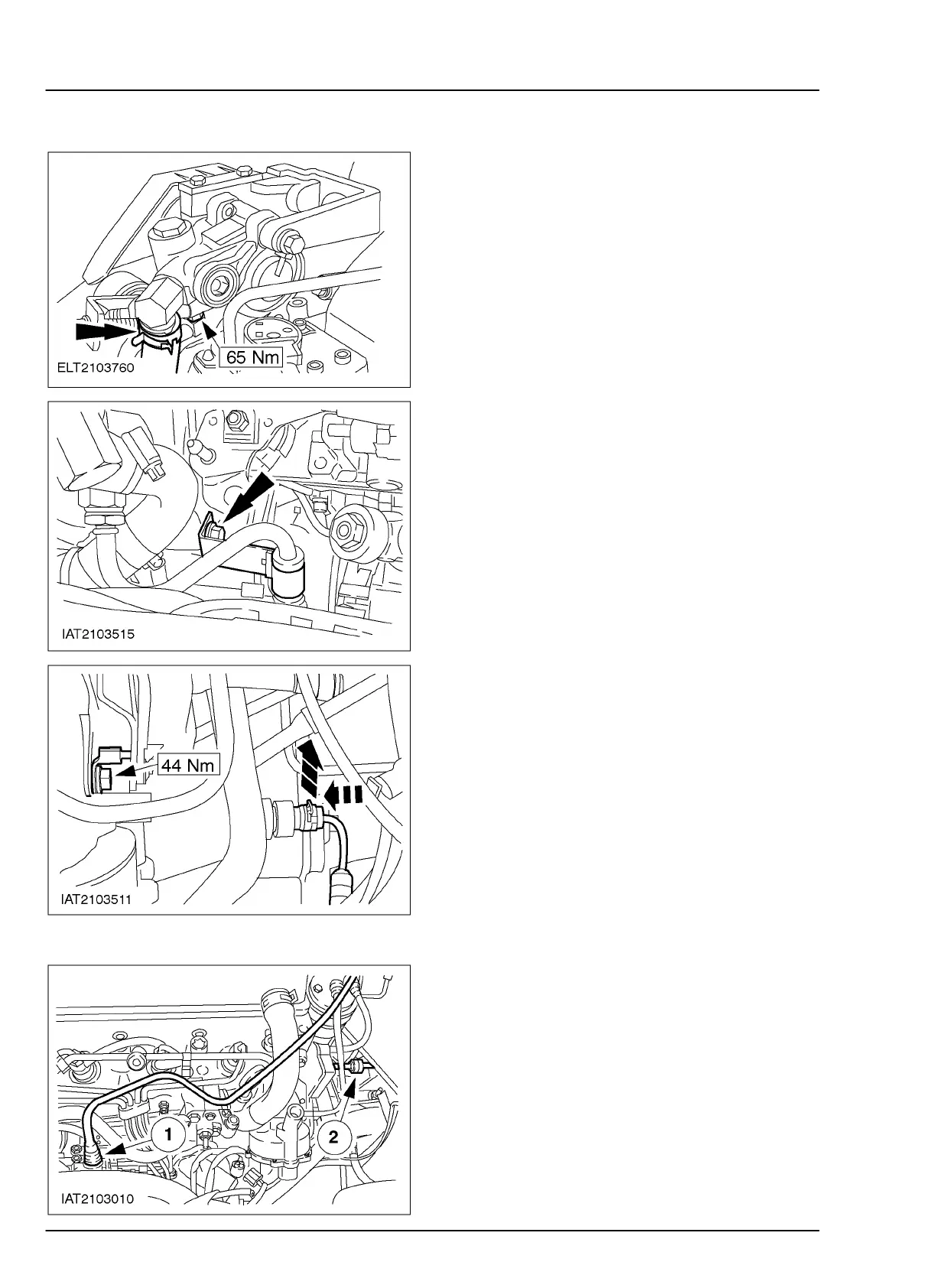

48. Connect the power steering hose and
pressure pipe.
49. Connect the bracket of the power steering
pressure pipe to the cylinder block.
50. NOTE: Insert new O-rings.
Attach the hydraulic pipe of the clutch
operating mechanism.
51. Attach the transmission ground lead.
52. Connect the fuel lines.
1. Fuel return line
2. Fuel feed line to diesel fuel heater
To Next Page
