Ford 2002 Bantam - Page 844

303-06-206 Starting System 303-06-206
DIAGNOSIS AND TESTING (CONTINUED)
E1017 EN 07/2001 2002 Bantam
CONDITIONS
DETAILS/RESULTS/ACTIONS
2

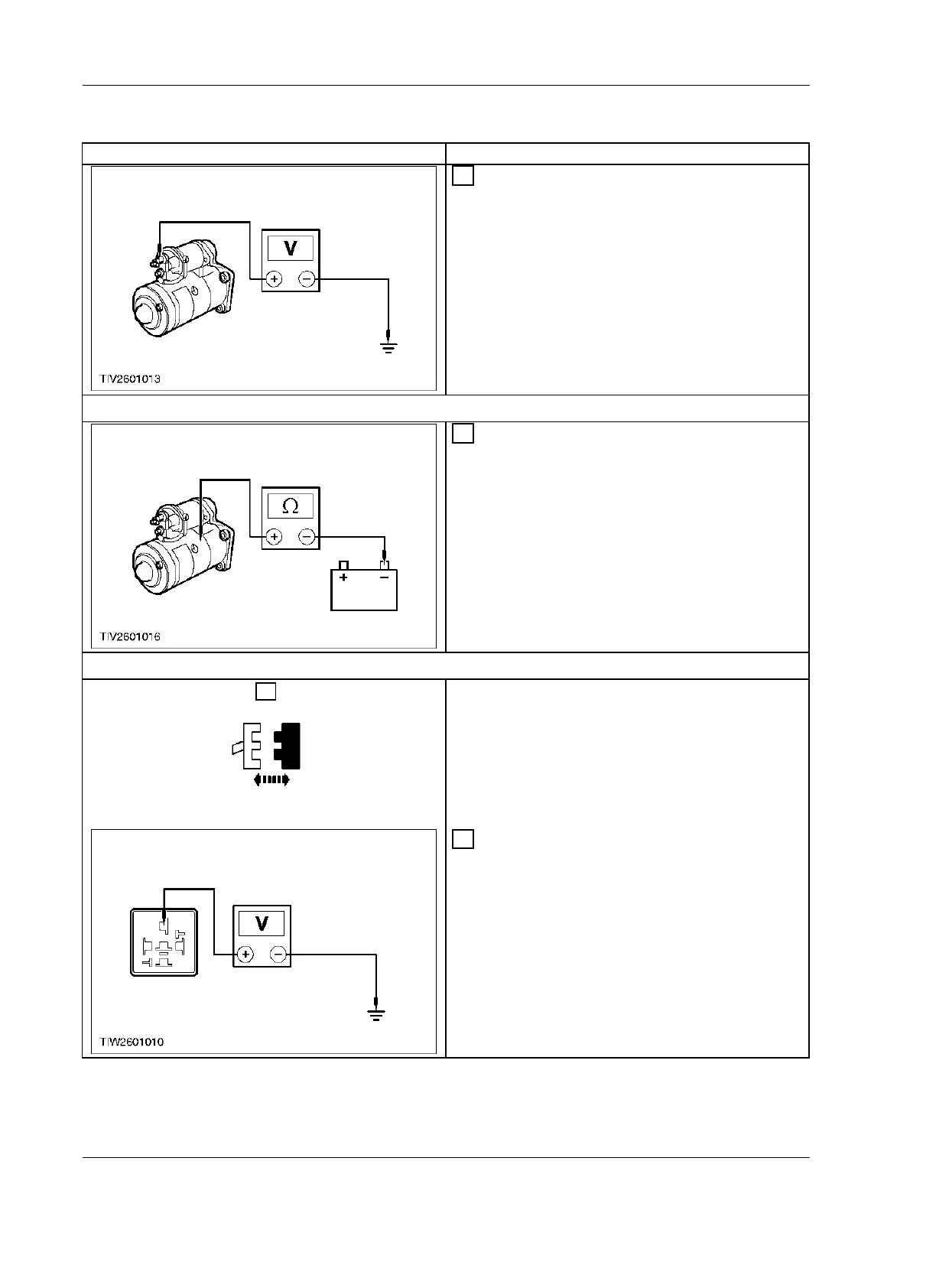

Measure the voltage between the starter motor
terminal B, circuit 30 (RD) and ground.
• Is the voltage greater than 10 volts?
 Yes
GO TO
A5
 No
REPAIR circuit 30 (RD). TEST the system
for normal operation.
A5: CHECK THE STARTER GROUND CIRCUIT
1
Measure the resistance between the starter
motor casing and negative (-) battery terminal.
• Is the resistance less than 5 ohms?
 Yes
INSTALL a new starter motor. TEST the
system for normal operation.
 No
CLEAN and REPAIR grounds as required.
TEST the system for normal operation.
A6: CHECK B+ TO STARTER RELAY
1.
Starter relay
2 Measure the voltage between the starter relay
connector pin 5, circuit 30 (RD) and ground.
• Is the voltage greater than 10 volts?
 Yes
GO TO
A7
 No
REPAIR circuit 30 (RD). TEST the system
for normal operation.
