303-06-210 Starting System 303-06-210
DIAGNOSIS AND TESTING (CONTINUED)
E1017 EN 07/2001 2002 Bantam
CONDITIONS
DETAILS/RESULTS/ACTIONS

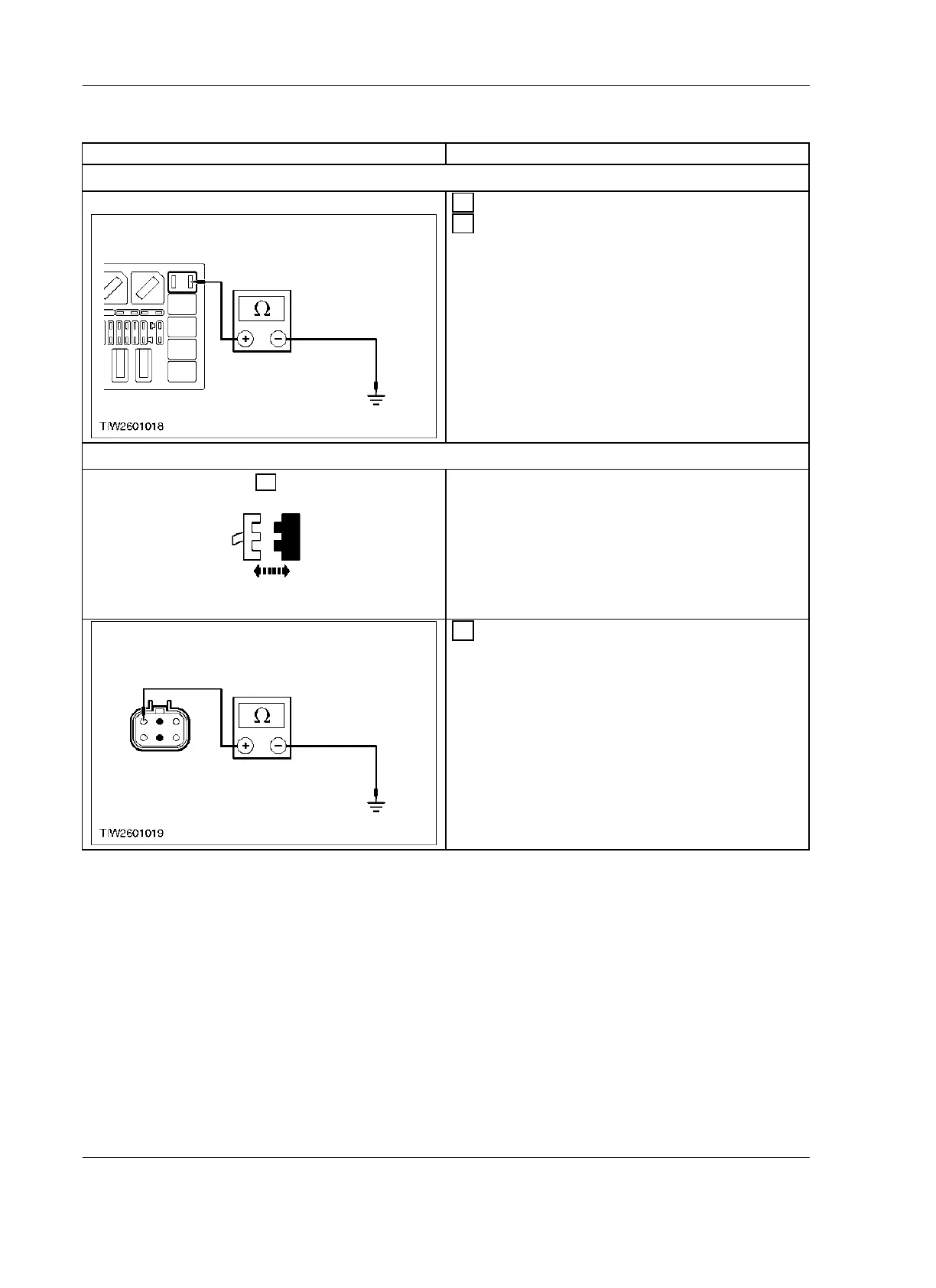

A15: CHECK CIRCUIT 30 (RD) FOR SHORT TO GROUND
1
Remove fuse 36 (60A).
2 Measure the resistance between fuse 36
connector pin 1, circuit 30 (RD) and ground.
• Is the resistance greater than 10,000 ohms?
Yes
GO TO
A16
No
REPAIR circuit 30 (RD). TEST the system
for normal operation.
A16: CHECK CIRCUIT 50 FOR SHORT TO GROUND
1.
Ignition switch
2
Measure the resistance between the ignition
switch connector pin 3, circuit 50 (GY) and
ground.
• Is the resistance greater than 10,000 ohms?
Yes
CONNECT the ignition switch. GO TO
A8
No
REPAIR circuit 50 (GY). TEST the system
for normal operation.
