DIAGNOSIS AND TESTING (CONTINUED)
E1017 EN 07/2001 2002 Bantam
PINPOINT TEST B: THE ENGINE CRANKS SLOWLY
CONDITIONS
DETAILS/RESULTS/ACTIONS

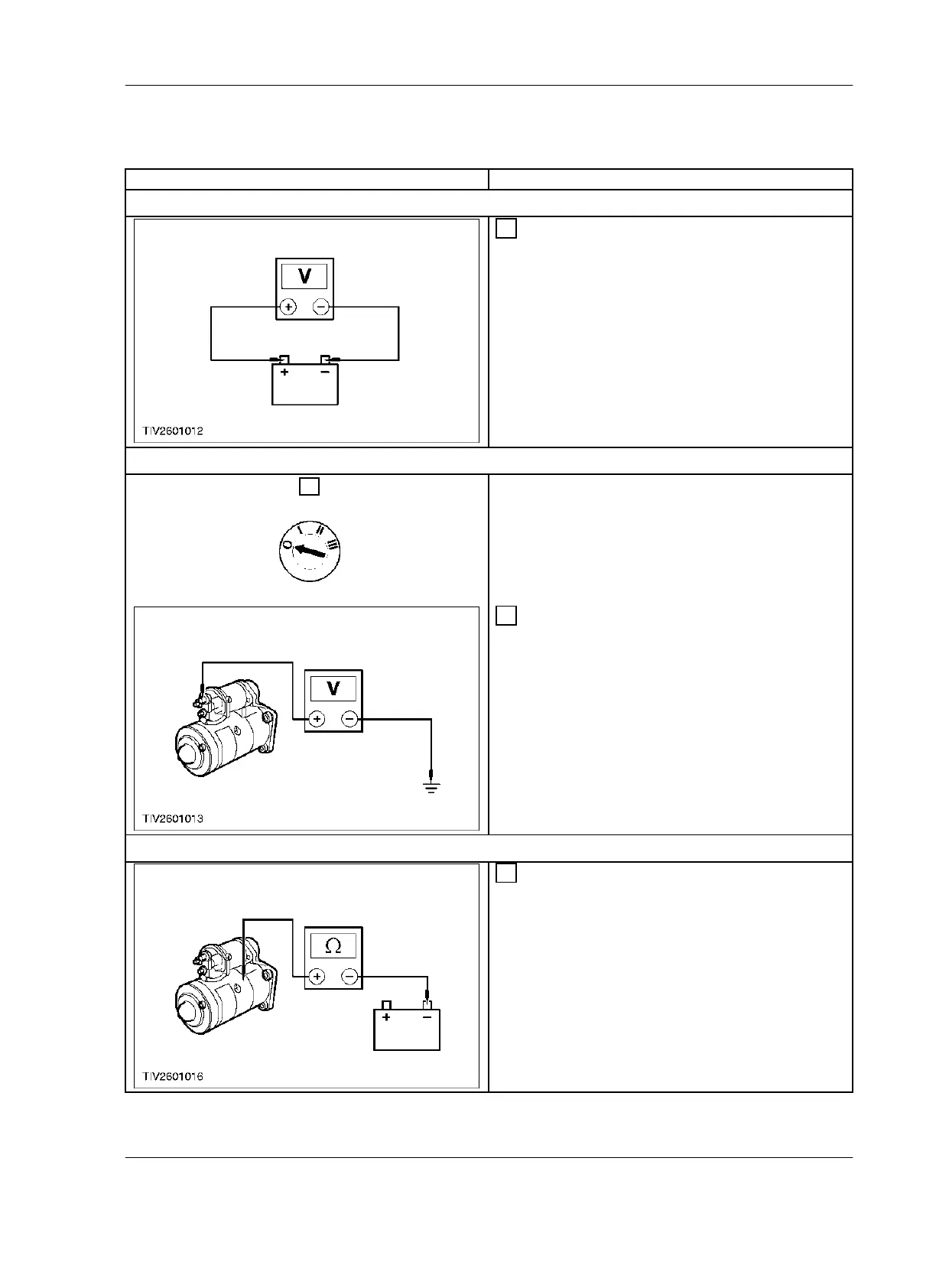

B1: CHECK THE BATTERY VOLTAGE
1
Measure the voltage between the battery
terminals.
• Is the voltage greater than 12.5 volts?
Yes
GO TO
B2
No
CHARGE or INSTALL a new battery as re-
quired. REFER to Section 414-00. TEST
the system for normal operation.
B2: CHECK THE SUPPLY TO STARTER
1.
2
Measure the voltage between the starter
terminal B, circuit 30 (RD) and ground.
• Is the voltage greater than 12.5 volts?
Yes
GO TO
B3
No
REPAIR circuit 30 (RD). TEST the system
for normal operation.
B3: CHECK THE STARTER GROUND CIRCUIT
1
Measure the resistance between the starter
motor casing and negative (-) battery terminal.
• Is the resistance less than 5 ohms?
Yes
INSTALL a new starter motor. TEST the
system for normal operation.
No
CLEAN and REPAIR grounds as required.
TEST the system for normal operation.
