308-03-64 Manual Transaxle 308-03-64
REMOVAL (CONTINUED)
E6700 EN 07/2001

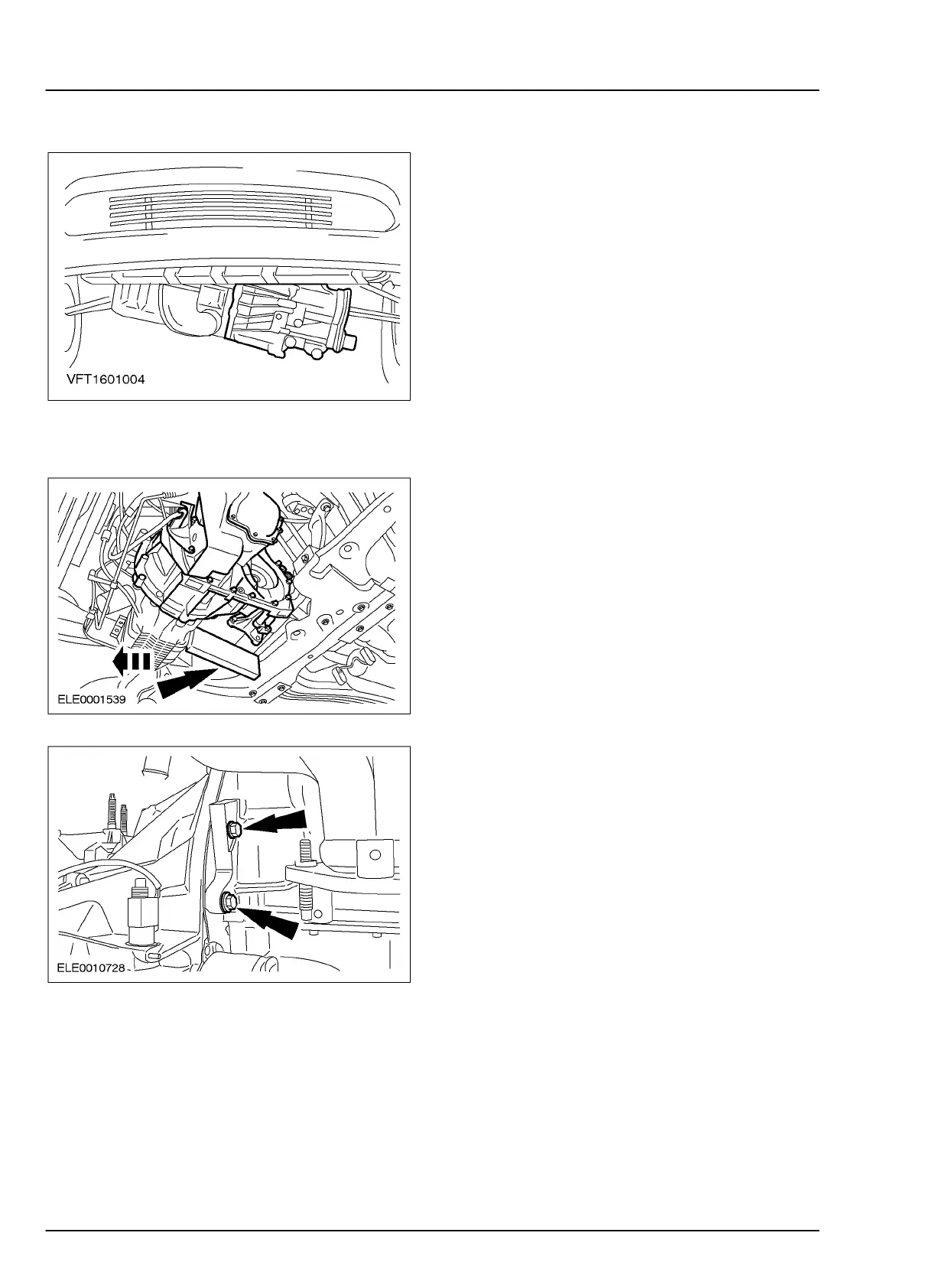

30. Using the special tools, lower the transaxle.
31. Raise and support the vehicle. For
additional information, refer to Section 100-
02.
Vehicles with 1.6L / 1.3L engine
32. Push the engine forward and position a
wooden block (260 mm) between the
crossmember and the oil pan.
All vehicles
33. Remove the transaxle right-hand flange
bolts.
To Next Page
