308-03-93 Manual Transaxle 308-03-93
ASSEMBLY (CONTINUED)
E4462 EN 07/2001

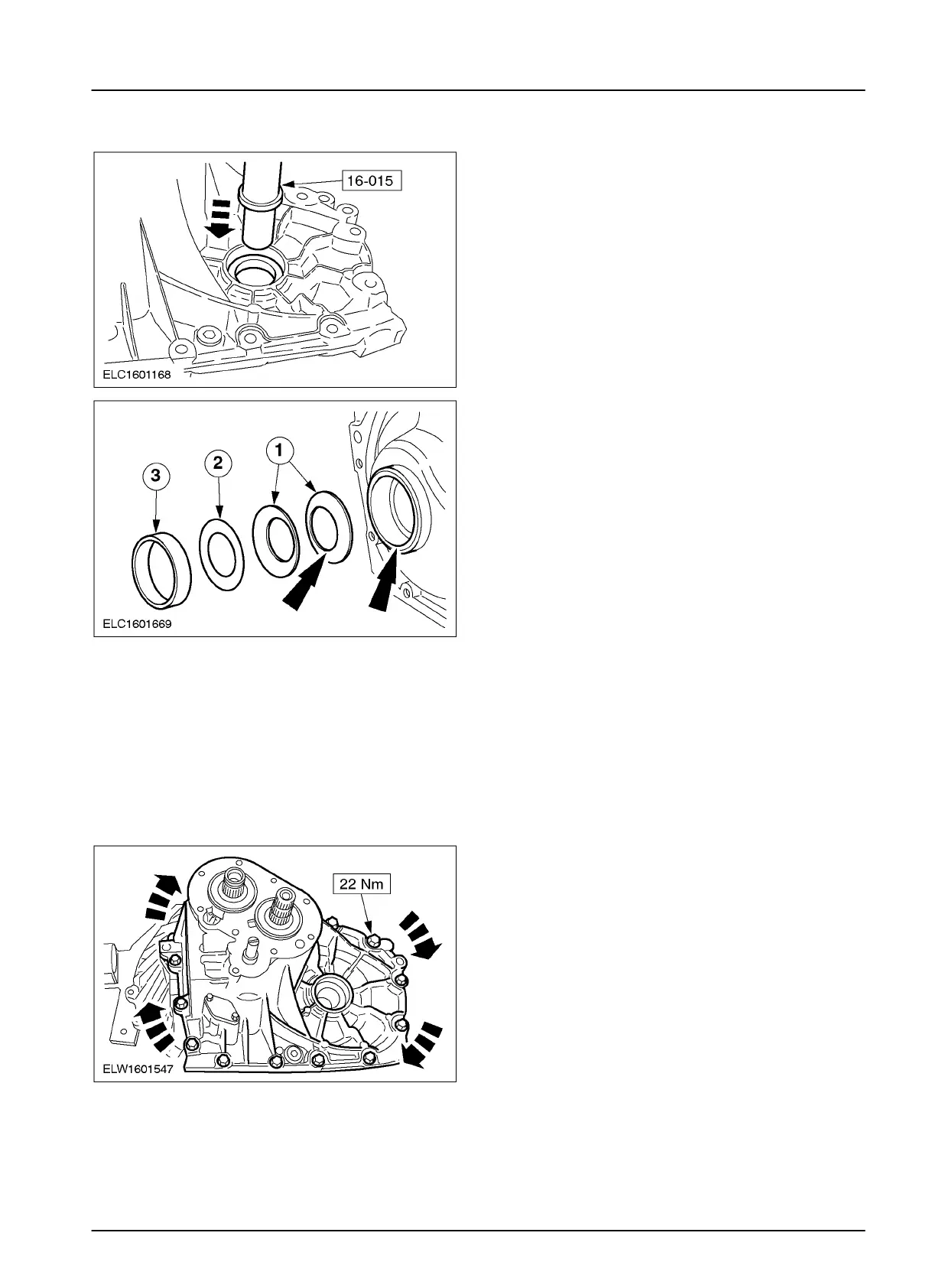

20. Remove the bearing cone with the
measuring shim.
21. NOTE: The Belleville washers are inserted
with the inside edges touching.
Fit the required shim and secure it with a
blow from a punch.
1. Spring washers
2. Required shim
3. Fit the bearing cone and secure it with a
blow from a punch on the edge of the
housing.
22. On transmissions with a black end cover
apply transmission housing sealer evenly
to the mating faces of the transmission
housing halves.
NOTE: On transmissions without liquid sealer
note the installation position of the housing gas-
ket.
NOTE: Tighten the studs to 33 Nm.
23. Put the housing parts together and tighten
the bolts evenly.
