308-03-96 Manual Transaxle 308-03-96
ASSEMBLY (CONTINUED)
E4462 EN 07/2001

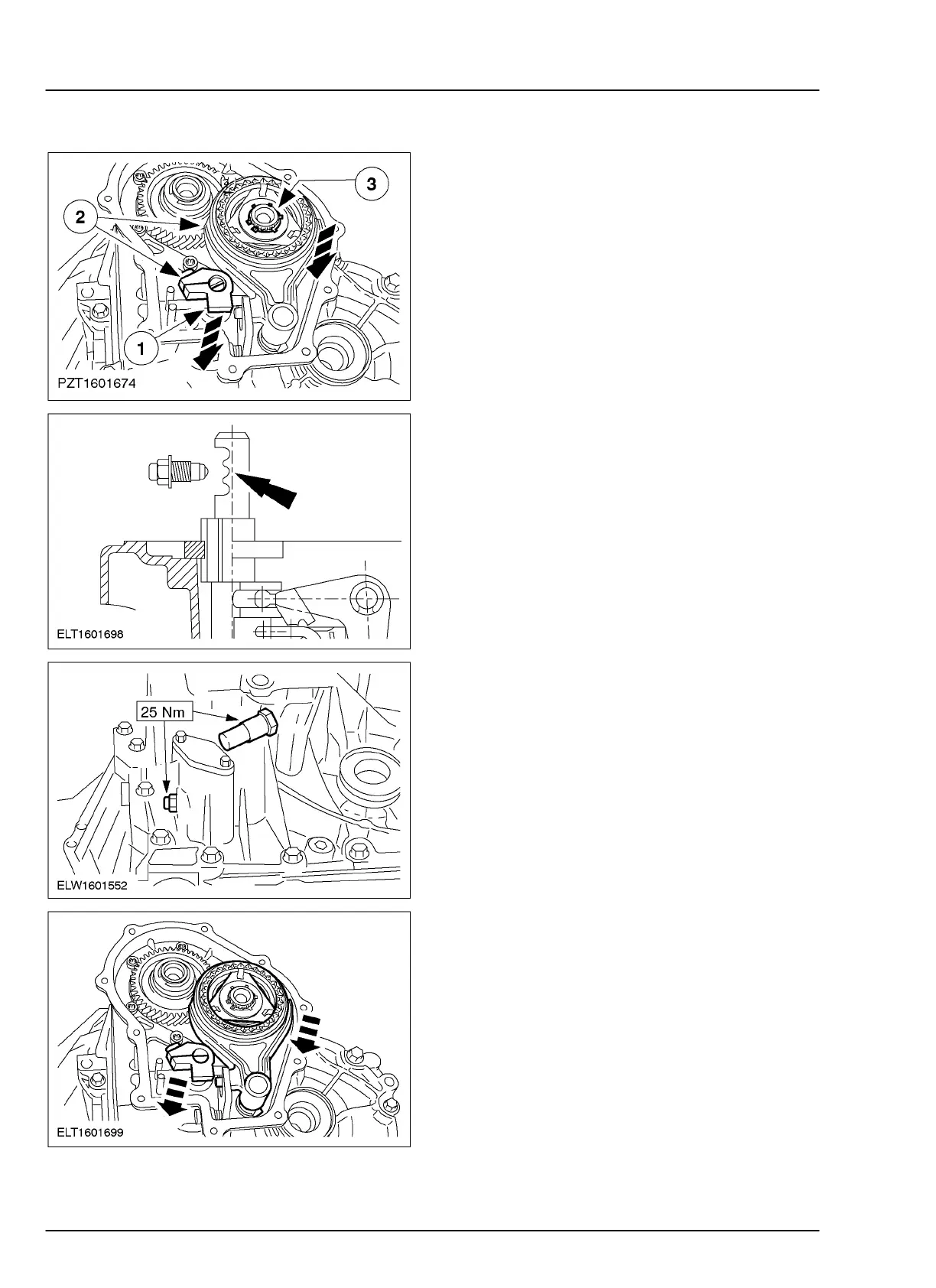

31. NOTE: Do not tighten the selector finger bolt
yet.
Install the selector finger and the snap-ring.
1. Insert the selector finger.
2. Move the selector finger and 5th gear
synchronizer unit into position together.
3. Fit the 5th gear synchronizer snap-ring.
32. NOTE: Only fit in the neutral position.
Installation setting of the auxiliary shaft
detent mechanism.
33. Fit the detent mechanisms.
• Coat the thread with universal sealer
(Hylomar).
34. Engage fifth gear.
• Press the selector fork and selector
finger down together.
