308-03-95 Manual Transaxle 308-03-95
ASSEMBLY (CONTINUED)
E4462 EN 07/2001
27. NOTE: The transmission housing must not
sit on the press table. Support the assembly
on the splined clutch input shaft on the press
table.

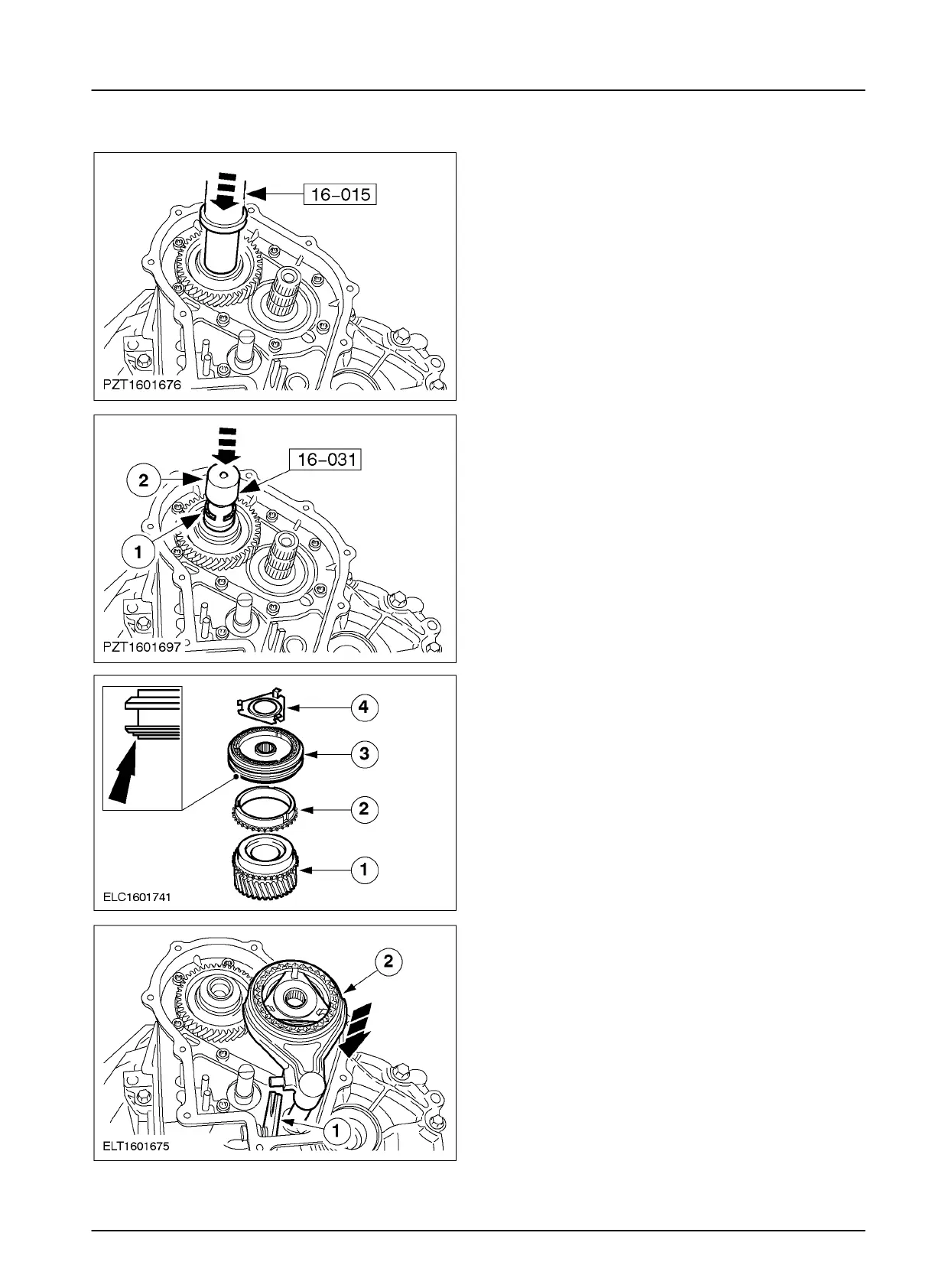

Press the 5th gearwheel onto the input
shaft using the workshop press.
• Detach the transmission from the
assembly stand.
• Press on the 5th gearwheel using the
workshop press.
• Mount the transmission on an assembly
stand.
28. Fit the 5th gearwheel snap-ring.
1. Fit the snap-ring on the special tool.
2. Put the special tool in place and drive on
the snap-ring.
29. NOTE: Marking showing the correct
assembly position of the synchronizer clutch.
Assemble the 5th gear synchronizer clutch.
1. 5th gearwheel
2. Synchronizer ring
3. Synchronizer clutch
4. Retaining plate
30. Install the 5th gear synchronizer assembly
together with the selector fork.
1. Swivel the lever upwards.
2. Slide on the 5th gear synchronizer
assembly until it reaches the actuator.
