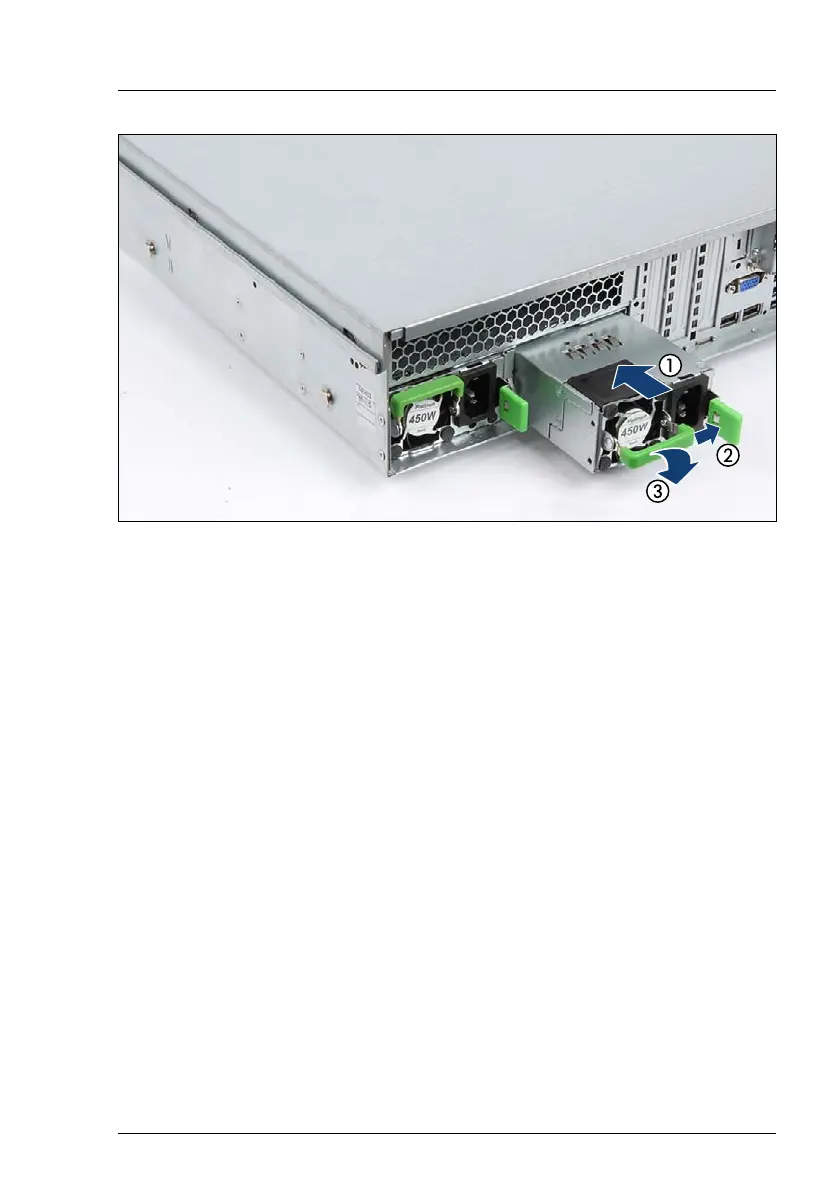

Figure 36: Installing the hot-plug PSU
Ê Push the PSU into its bay (1) as far as it will go until the release latch snaps
in place (2).
Ê Fold down the handle on the PSU (3).
I Make sure that the PSU engages correctly in the bay and is locked in
position. This is the only way to prevent the PSU from sliding out of
its bay and being damaged during transportation.
6.2.4 Concluding steps
Ê "Connecting the power cord" on page 79
Ê "Performing a fan test" on page 126
